Bunting Bearings CB162036

B01G8X97JM

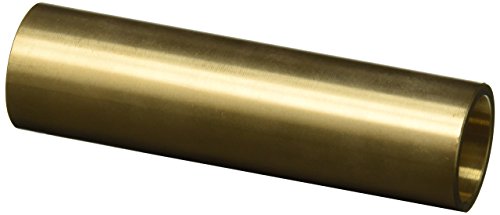

Bunting Bearings CB162036 Sleeve (Plain) Bearings, Cast Bronze C93200 (SAE 660), 1" Bore x 1-1/4" OD x 4-1/2" Length (Pack of 3)

Bunting Bearings CB162036 Sleeve (Plain) Bearings, Cast Bronze C93200 (SAE 660), 1" Bore x 1-1/4" OD x 4-1/2" Length (Pack of 3)zoom

Attributes

Key Value
bearing material:Cast Bronze C93200 (SAE.
Bore Diameter1 in
Bronze Material TypeCast Bronze
ColorBronze
Country of Origin (subj.United States
Flange DiameterNot Applicable
Flange TypeNon-Flanged
groove/plug type:None
I.D.1 in
Inside Dia.1 in
Inside Diameter1 in
ItemSleeve Bearing
Length4 1/2 in
Length (Straight Wirewa.4 1/2 in
Length Tolerance+/-0.005 in
LubricationNone
manufacturer upc number:717905062247
MaterialMetal
Material GradeC93200 (SAE 660)
Material GroupMetallic
material specification:SAE 660 (C932)
Max. Pv75,000 lb/sq in-fpm
maximum p value:4000 psi
Maximum PV75,000 lb/sq in-fpm
maximum pv value:75000
Maximum Temperature500 Degrees F
maximum v value:750 fp/min
Minimum Temperature-450 Degrees F
O.D.1 1/4 in
operating temperature r.Max 500
Outside Dia.1 1/4 in
Outside Diameter1 1/4 in
Overall Length4 1/2 in
Plain Bearing MaterialBronze
sleeve bearing type:Plain Sleeve
standards met:83-7-7-3, ASTM B505, CD.
System of MeasurementInch
Temp. Range (F)-40 Degrees to 500 Deg.
Temperature Range-450 Degrees F to 500 .
weight:0.626 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply57875311.6266Bunting Bearings11.62 @ 6
thumbzoommotionindustries.com0001255214.0816Bunting Bearings, LLC14.08 @ 6
thumbzoomZoroG391909742.5916Bunting Bearings1.9742.59 @ 6
thumbzoomsustainablesupply.comC297318846.1716Bunting Bearings1.9746.17 @ 6
