Molex / Waldom 09-48-3045

mpn0009483045
brandname: Molex
manufacturername: Molex

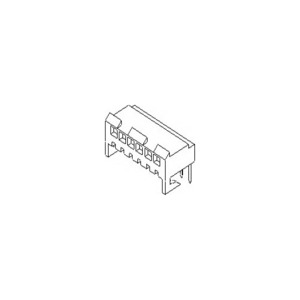

Molex / Waldom 09-48-3045 Connector Headers and PCB Receptacles

Molex / Waldom 09-48-3045 Connector Headers and PCB Receptacles

zoom

Brand: Molex / Waldom
PartNumber: 09-48-3045
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Applications	Automotive, General Pur.
Color	Natural
Connector Type	Receptacle
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Post	0.145" (3.68mm)
Contact Material	Brass
Contact Plating Thickne.	0.381 ?m
Contact Shape	Square
Contact Type	Female Socket
Current Rating	5 A
Current Rating (Amps)	4.5A
Fastening Type	Locking Ramp
Features	Board Hooks
Flammability Rating	UL 94V-0
Hole Center to Center	3.96 mm
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.308" (7.82mm)
Insulation Material	Polyester
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	235?C
Max. Voltage	250V
Mfr	Molex
Mounting Type	Board Edge, Through Hol.
Number of Contacts	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-40?C ~ 80?C
Part Status	Active
Pitch - Mating	0.156" (3.96mm)
Row Spacing - Mating	-
Standards	CSA Certified; UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	600V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Avnet	0009483045	0.40993	1	100		Molex		0.40993 @ 100
	Waldom	MOLEX 09-48-3045	0.41	150	630		MOLEX		0.41 @ 150
	Onlinecomponents.com	09-48-3045	0.483	1	5003		MOLEX / WALDOM		0.483 @ 100
	jensentools.com	10150394	0.53	1	480		Molex		0.53 @ 100
	Hotenda	H1420379	0.5676	1	100		Molex		0.5676 @ 100
	Digi-Key	WM13511-ND	0.5962	1	100		Molex		0.5962 @ 100
	Newark	24M9946	0.706	1	174		MOLEX		0.706 @ 100
	Zoro	G005784193	106.5	1	100		Molex		106.5 @ 100
