Molex 09-48-3056

mpn0009483056
brandname: Molex
manufacturername: Molex

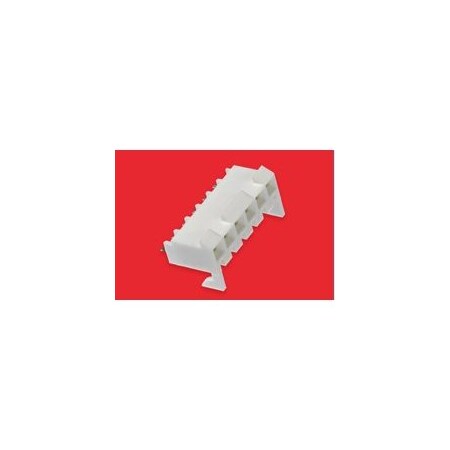

Molex Connector, Rcpt, 5Pos, 1Row, 3.96Mm - 09-48-3056

Molex Connector, Rcpt, 5Pos, 1Row, 3.96Mm - 09-48-3056

zoom

Brand: Molex
PartNumber: 09-48-3056
PackageQuantity: 1
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	000948
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Post	0.120" (3.05mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	4.5A
Fastening Type	Locking Ramp
Features	Board Hooks
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.449" (11.40mm)
Insulation Material	Polyester
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Positions	5
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-40?C ~ 80?C
Package	Tray
Package Quantity	1
Part Status	Active
Pitch - Mating	0.156" (3.96mm)
Row Spacing - Mating	-
Series	KK396, 41815
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	600V
