- mpnBC4LH-S25-L
- brandname: Panduit
- manufacturername: Panduit

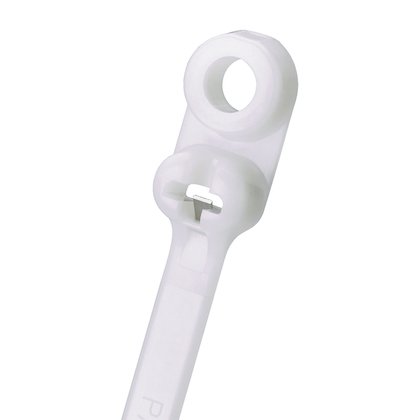

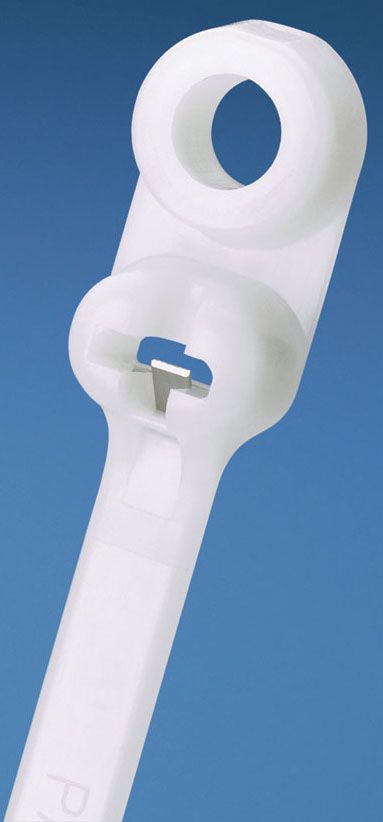

PANDUIT BC4LH-S25-L Clamp Tie, Metal Barb, 15.5"L (394mm), L
- Brand: Panduit
- PartNumber: BC4LH-S25-L
- PackageQuantity: 50
- Manufacturer: PANDUIT
- Label: PANDUIT
Attributes
| Key | Value |
|---|
| Actual Length | 15.5 in |
| Application | Used to secure a cable . |
| Approximate Length | 15.5 in, 15-1/2" |
| Approximate Length - Ca. | 15-1/2" |
| Base Product Number | BC4LH |
| Basic Material | Nylon |
| Basic Material - Cable . | Nylon |
| Brand | Dome-Top?, Panduit |
| Bundle Diameter | 4.00" (101.60mm) |
| Cable Tie Duty | Heavy Duty |
| Cable Tie Properties | Halogen-Free, Low-Smoke. |
| Cable Tie Style | Mountable |
| Catalog Number | BC4LH-S25-L |
| Category | Cables, Wires - Managem. |
| Color | White, Natural |
| Color - Cable Tie | Natural |
| Color Family | Natural |
| Country of Origin | CR - Costa Rica, Costa . |
| Country of Origin (subj. | Costa Rica |
| Design | Mountable |
| Design - Cable Tie | Mountable |
| ECCN | EAR99 |
| Family Series | Panduit Cable Ties, Dom. |
| Features | Cross Section: Light-He. |
| Flame Retardant | No |
| Gross Weight | 0.743 lbs |
| Heat Stabilized | No |
| Height | 0.265" (6.7mm) (Boss) |
| Height (in) | 0.065 " |
| Indoor/Outdoor | Indoor |
| Item | Cable Tie |
| Item Number | BC4LH-S25-L |
| Item Type | Cable Tie |
| Length | 15.5 in, 15.5", 15.5, 1. |
| Length (In) | 15.5 " |
| Length - Actual | 1.292' (393.71mm) |
| Length - Approximate | 15.5" |
| Length - Cable Tie | 15.50" |
| Length UOM | Inch |
| Lock Mechanism | Locking |
| Locking Style | Stainless Steel Barb |
| Made in USA | No |
| Manufacturer | Panduit |
| Manufacturer Part Number | BC4LH-S25-L |
| Material | Nylon 6/6, Nylon, Nylon. |
| Max Bundle Diam. (in) | 4 " |
| Max. Bundle Dia. | 4.00" |
| Max. Temp. Rating | 185 Degrees F |
| Metal Detectable | No |
| Mfr | Panduit Corp |
| Min. Temp. Rating | -76 Degrees F |
| Mounting | Screw |
| Mounting Hole Size | 1/4 |
| Mounting Hole Size - Ca. | 1/4" |
| Mounting Method | Screw Mount |
| Mounting Style | Mounting Head |
| Mounting Type | Screw Mount, Mounting H. |
| Net Weight | 0 lbs |
| Nominal Length | 15 1/2 in, 15.5 " |
| Nominal Max. Bundle Dia. | 4 in |
| Number of Straps | 1 |
| Outdoor Use | No |
| Package | Bulk |
| Package Quantity | 50 |
| Plenum Rated | Yes |
| Product Header | Clamp Tie with Metal Ba. |
| Product Series | Dome Top Clamp Ties |
| Product Status | Active |
| Product Thickness | 0.065 in |
| Protection Class | Tie, Cable |
| Recommended Tool | 62NP16, 62PX61, Mfr. No. |
| Screw Mount Hole Size | 0.25 in |
| Series | DOME-TOP BARB-TY BC Ser. |
| Shelf Life | - |
| Shelf Life Start | - |
| Size | Light-Heavy |
| Special Features | Locking, Plenum |
| Standard | UL 62275 Compliant (Typ. |
| Standards | UL 62275 (Type 2, 21), . |
| Storage/Refrigeration T. | - |
| Sub Brand | Dome-Top |
| Temp. Range | -76 Degrees to 185 Deg. |
| Tensile Strength | 120 lbs., 120 LB, 120 l. |
| Tensile Strength (lb) | 120 lbs |
| Tensile Strength - Cabl. | 120 lb. |
| Thickness | 0.08, 0.06" |
| Thickness (in) | 0.065 " |
| Thread Size | M6 |
| Tool Code | F |
| Type | General Purpose |
| UL Type | 2 |
| UNSPSC | 39121703 |
| UPC | 074983523269 |
| UPC Code | 074983523269 |
| Weather Resistant | No |
| Weight Capacity | 120 lbs |
| Width | 0 in, 0.27", 0.52, 0.27. |
| Width (in) | 0.275 " |
| Width - Cable Tie | 0.27" |
| Wire/Cable Tie Type | Standard, Locking |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hawk Electronics | BC4LH-S25-L | 0.74 | 1 | 50 | | Panduit | | 0.74 @ 50 |
 | Kelly Hayes | BC4LH-S25-L | 0.81 | 1 | 150 | | Panduit | | 0.81 @ 50 |
| Onlinecomponents.com | BC4LH-S25-L | 0.84 | 1 | 50 | | Panduit | | 0.78 @ 51 |
 | Galco | BC4LH-S25-L-PNDT | 1.01 | 500 | 50 | | Panduit | 0.743 | 1.01 @ 500 |
 | French Gerleman | PANDBC4LHS25L | 1.15 | 100 | 50 | | Panduit | | 1.15 @ 100 |
 | crescentelectric.com | 124111 | 1.16 | 1 | 50 | | Panduit | | 1.16 @ 50 |
 | Platt.com | 0080852 | 1.2 | 1 | 50 | | Panduit | | 1.2 @ 50 |
| Digi-Key | 447730 | 1.21288 | 500 | 50 | 33 | Panduit Corp | | 1.21288 @ 500 |
 | Zoro | G3247851 | 50.0 | 1 | 109 | | Panduit | 0.6 | 50.0 @ 50 |
| us.rs-online.com | 70043711 | 50.96 | 1 | 50 | | Panduit | | 50.96 @ 50 |
 | Newark | 65H8643 | 55.4 | 10 | 50 | | PANDUIT | | 55.4 @ 50 |
 | Carlton Bates Company | 07498352326 | 56.5 | 1 | 50 | | PANDUIT | | 56.5 @ 50 |
 | sustainablesupply.com | C1177587 | 70.1 | 1 | 50 | | Panduit | 0.6 | 70.1 @ 50 |
 | Raptor Supplies | AB9FBK | 96.807204 | 1 | 50 | | PANDUIT | | 96.807204 @ 50 |
 | turtle.com | PAN BC4LH-S25-L | 120.32 | 1 | 50 | | Panduit | | 120.32 @ 50 |
| Graybar | 98293022 | 140.3472 | 50 | 50 | | Panduit | | 140.3472 @ 50 |
 | gordonelectricsupply.com | BC4LH-S25-L | 537.95 | 1 | 50 | 12 | PANDUIT | | 537.95 @ 50 |
