Taco 0013-F3

B000LEC6W0

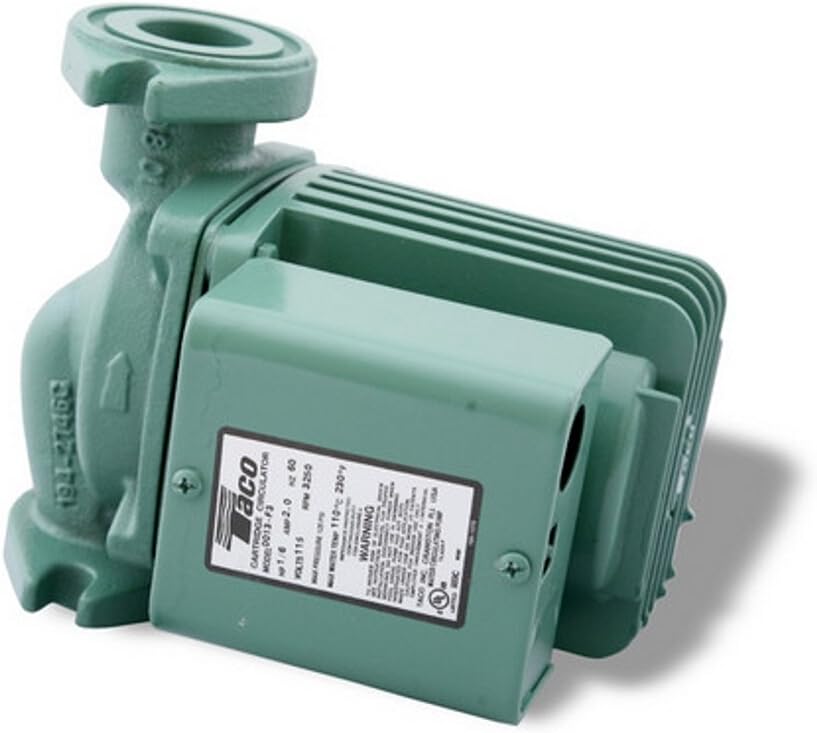

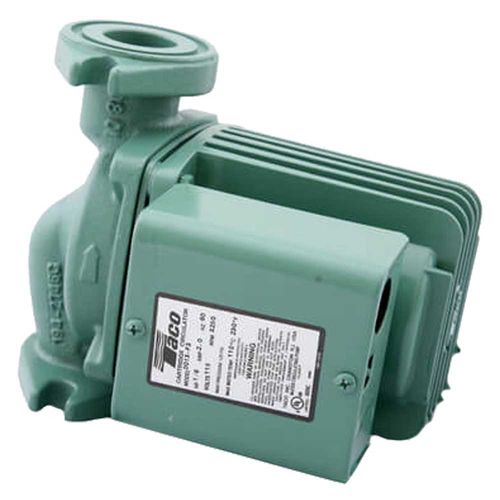

Taco 0013-F3 1/6-HP Cast Iron Cartridge Circulating Pump

Taco 0013-F3 1/6-HP Cast Iron Cartridge Circulating Pumpzoom

Attributes

Key Value
AMP2
Amps2.0 A
ASINB000LEC6W0
Batteries Included?No
Batteries Required?No
Best Sellers Rank#199,637 in Tools & Hom.
Body Gasket MaterialEPDM
CategoryIndustrial Automation a.
ColorN/A, Taco
Compatible Discharge Pi.3/4 in, 1 in, 1 1/4 in,.
Compatible Intake Pipe .3/4 in, 1 in, 1 1/4 in,.
Connection Size1/2"
Connection StyleFlange
Connection TypeFlanged, Flange
Customer Reviews4.9 out of 5 stars15 ra.
Date First AvailableFebruary 17, 2010
Depth7-1/2 in
Electrical Voltage115 Volt
Face to Face Dimension6 1/2 in
Flange or Union IncludedNo
Flow Rate34 gpm, 33 GPM @ 80 Psi
For Use With Potable Sy.Yes
Frequency60 Hz
Height6-1/2 in
Horsepower1/6 hp, 1/6
Housing MaterialCast iron
HP1/6 hp
Impeller MaterialPolypropylene
Included ComponentsTaco 0013-F3 1/6-HP Cas.
IncludesFlange Gaskets, Impedan.
Inlet/Outlet Size3/4 in to 1-1/2 in
Is Discontinued By Manu.No
ItemHydronic Circulating Pu.
Item model number0013-f3
Item Package Quantity1
Item Weight4 pounds
Length7 3/4 in, 7-3/4 in
ManufacturerTaco
Manufacturer Warranty L.3 yr
Manufacturers Warranty .3 yr
MaterialCast iron
Max. GPM @ Head33 gpm @ 1 ft
Maximum Feet of Head33, 33 ft
Maximum Flow Rate @ 1 F.34 gpm
Maximum Flow Rate @ 10 .26 gpm
Maximum Flow Rate @ 15 .21 gpm
Maximum Flow Rate @ 20 .17 gpm
Maximum Flow Rate @ 25 .11 gpm
Maximum Flow Rate @ 30 .5 gpm
Maximum Flow Rate @ 5 F.30 gpm
Maximum Flow Rate @ 50 .30 gpm
Maximum Media Temperatu.230 Degrees F
Maximum Operating Press.150 psi
Maximum RPM3,250 RPM
Maximum Temperature230
MfrTaco
Min. GPM @ Head5 gpm @ 30 ft
Minimum Media Temperatu.40 Degrees F
Minimum Temperature40
Motor Size1/6 hp
Mounting LocationIn-Line
Nameplate Voltage115V AC
Number of Speeds1
Overall Height6.5 in
Overall Length7.5 in
Overall Width6 in
PackageBox
Part Number0013-f3
Part StatusActive
Phase1, Single
Phase - Pumps1
Pressure - Maximum125 PSI
Pressure Rating125 PSI
ProductCirculating Pump
Product Dimensions6 x 7.75 x 6.5 inches
Product TypeCirculator Pump
Product with faster shi.true
Pump Body MaterialCast iron
Pump Features1 Phase
Pump Housing MaterialCast iron
Pump Phase1
Pump TypeCirculator Pump, Perman.
Rotor TypeWet
RPM3250
Series*, 0013, 0013-f3
Series Family00
Shippingundefined (Fixed Shippi.
Special FeaturesUnmatched Reliability -.
StandardsUL-CUS
Thickness1 Inches
TypePumps
UL ListedYes
UseHeat Only
Voltage115 Volts, 115V
Voltage - Pumps115V AC
Volts115V
Weight10.70
Width6 in
