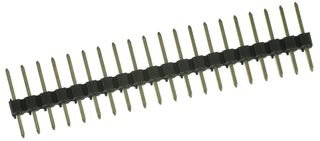

FCI 68002-420HLF BOARD TO BOARD, HEADER, 20POS, 1ROW (10 pieces)

FCI 68002-420HLF BOARD TO BOARD, HEADER, 20POS, 1ROW (10 pieces)zoom

Attributes

Key Value
Applications-
Base Product Number68002
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Finish Thicknes.-
Contact Length - Mating0.230" (5.84mm)
Contact Length - Post0.150" (3.81mm)
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3A
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.100" (2.54mm)
Insulation Material-
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrAmphenol ICC (FCI)
Mounting TypeThrough Hole
Number of Positions20
Number of Positions Loa.All
Number of Rows1
Operating Temperature-65?C ~ 130?C
Overall Contact Length0.480" (12.19mm)
PackageBag
Part StatusActive
Pitch - Mating0.100" (2.54mm)
Row Spacing - Mating-
SeriesBERGSTIK? II
ShroudingUnshrouded
StyleBoard to Board
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark20M24190.7353005AMPHENOL COMMUNICATIONS SOLUTIONS0.735 @ 250
Digi-Key18785670.7610000133Amphenol ICC (FCI)0.76 @ 5
