PT02E12-3S-AMPHENOL INDUSTRIAL_IT

mpnPT02E-12-3S
brandname: Amphenol Industrial
manufacturername: Amphenol Industrial

Amphenol Industrial PT02E-12-3S Connector, Metal Circ, Class E, Box Mount Recept, Size 12, 3 #16 Solder Socket Cont

PartNumber: PT02E12-3S-AMPHENOL INDUSTRIAL_IT
Model: PT02E12-3S-AMPHENOL INDUSTRIAL_IT
PackageQuantity: 1
Binding: Electronics
Manufacturer: AMPHENOL INDUSTRIAL
Label: AMPHENOL INDUSTRIAL

Attributes

Key	Value
Agency Approvals	UL Recognized
Alternate Part No.	523-172177
Amperage Rating	22A
Angle	Straight
Application	Commercial
Body Finish	Copper-Tin-Zinc Alloy
Body Material	Brass
Brand	Amphenol Connex
Cable Type	RG-58, RG-58A, RG-58C, .
Class	E
Connector Style	Receptacle
Connector Type	Circular
Contact Configuration	3#16
Contact Material	Copper Alloy, Brass
Contact Mating Life	500
Contact Plating	Gold
Contact Size	3#16
Contact Style	Socket
Contact Termination	Solder
Contact Type	Socket
Contacts Supplied	Yes
Contacts, # of	3
Coupling Mechanism	Threaded
Current Rating	13 A
Dielectric Material	Neoprene
Endbell Type	Grommet Nut
Export Class	EAR / EAR99
Gender	Plug, Panel Socket
Grommet & Seals Material	Neoprene
Housing Finish	Olive Drab Cadmium
Housing Material	Aluminum
Housing Type	Metal
Impedance	50 Ohms

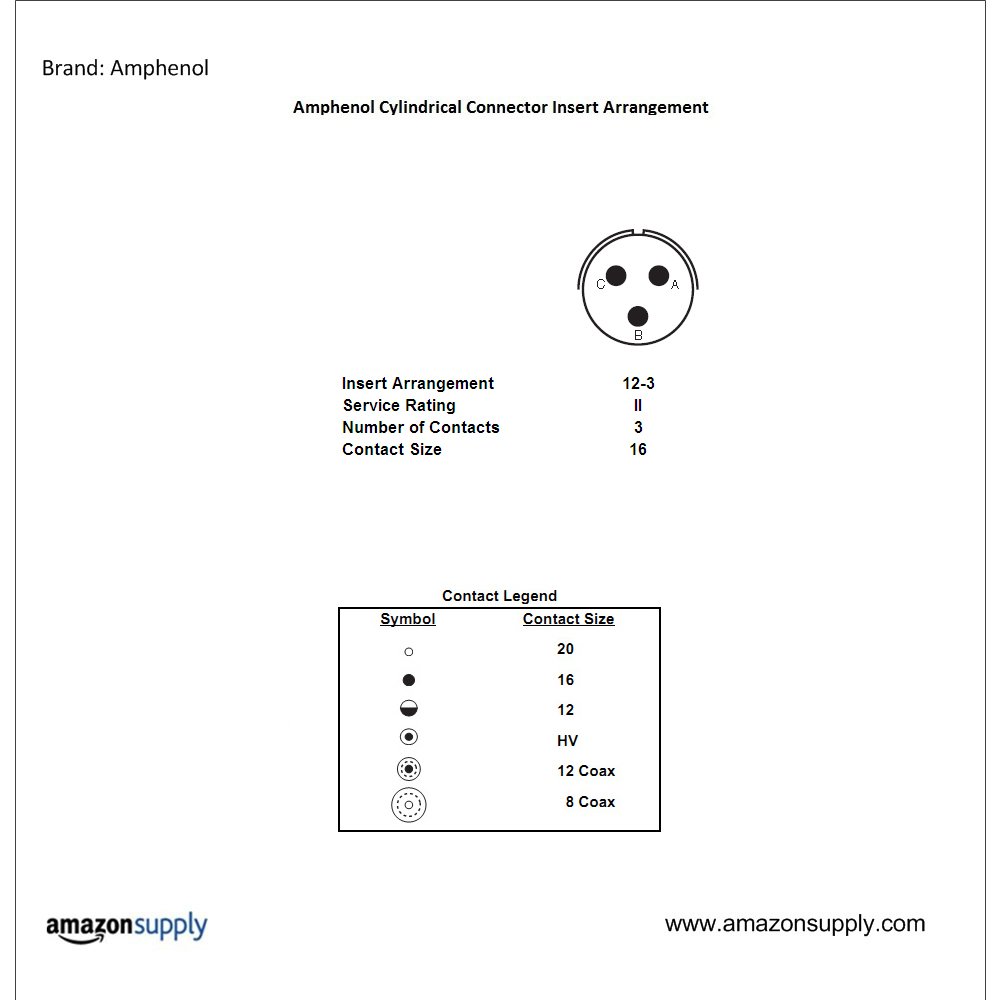

Insert Arrangement	12-3
Insert Material	Neoprene
Insert Rotation/Keying	Normal
Manufacturer	Amphenol
Manufacturer Part No.	172177
Mating Cycles	500
Mating Type	Bayonet
Maximum Frequency	11 GHz
MIL Type	MIL-DTL-26482
Mounting Hole Diameter	0.12 "
Mounting Type	Flange Mount, Box - Fro.
Number of Contacts	3
Operating Temperature &.	-67 to +257 (-55 to +12.
Operating Temperature R.	- 65 C to + 165 C
Operating Voltage AC V .	1000
Operating Voltage DC	1400
Orientation	Straight, Right Angle
Part # Aliases	319-0108 92C6730
Polarity	Standard
Primary Type	MIL/Aero
Product	Connectors
Product Category	RF Connectors / Coaxial.
RF Series	N
RoHS	No
Sealing	Sealed
Series	Type N, PT Series
Service Rating	II
Shell Color	Olive Drab
Shell Material	Aluminum Alloy
Shell Plating	Olive Drab Chromate ove.
Shell Size	12
Shielding	Yes
Special Features	5 Key/Keyway Polarizati.
Specification	MIL-DTL-26482
Termination	Solder
Termination Method	Solder
Termination Style	Cable - Crimp
Type	26482 Commercial
Voltage Rating	1.5 kV, 1000 V
Weight (g)	11.91400
Weight (lbs)	0.02627
Wire Size	16

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Onlinecomponents.com	PT02E-12-3S	8.39	1	137		Amphenol IO		8.39 @ 1
Hawk Electronics	172177	11.3	100	In Stock		Amphenol-RF		11.3 @ 100
PEI-Genesis	PT02E12-3S	11.84	1	2543		Amphenol	0.02627	11.84 @ 1
Freelance Electronics	PT02E12-3S	12.23245	1	1		Amphenol		12.23245 @ 1
AmazonSC	B005T8QVTW	12.39	1	In Stock		Amphenol		12.39 @ 1
Hotenda	H1029016	12.8	1	122		Amphenol Industrial		12.8 @ 1
Digi-Key	PT02E-12-3S-ND	14.61	1	In Stock		Amphenol Industrial Operations		14.61 @ 1
Electronic Connector Co	PT02E-12-3S	15.21	1	In Stock		AMPHENOL INDUSTRIAL		15.21 @ 1
Newark	95F1732	17.01	1	44		AMPHENOL INDUSTRIAL		17.01 @ 1
RS Delivers	872-1461	17.028	1	11		Amphenol Industrial		17.028 @ 1
jensentools.com	52747.1	17.39	1	In Stock		Amphenol RF		17.39 @ 1
swatee.com	172177	17.54	1	81		Amphenol		17.54 @ 1
us.rs-online.com	70143456	17.61	1	254		Amphenol Industrial		17.61 @ 1
Component Electronics	732N-DF	19.23	1	39		Amphenol		19.23 @ 1
AmazonTP	B005T8QVTW	19.71	1	In Stock	2	Amphenol		19.71 @ 1
AmazonUNK	B005T8QVTW	19.71	1	In Stock		Amphenol		19.71 @ 1
Radwell	PT02E12-3S	22.0	1	In Stock		AMPHENOL		22.0 @ 1
TME	172177	24.06	1	95		AMPHENOL RF		24.06 @ 1
