Square D HU265

B007IAUUQE

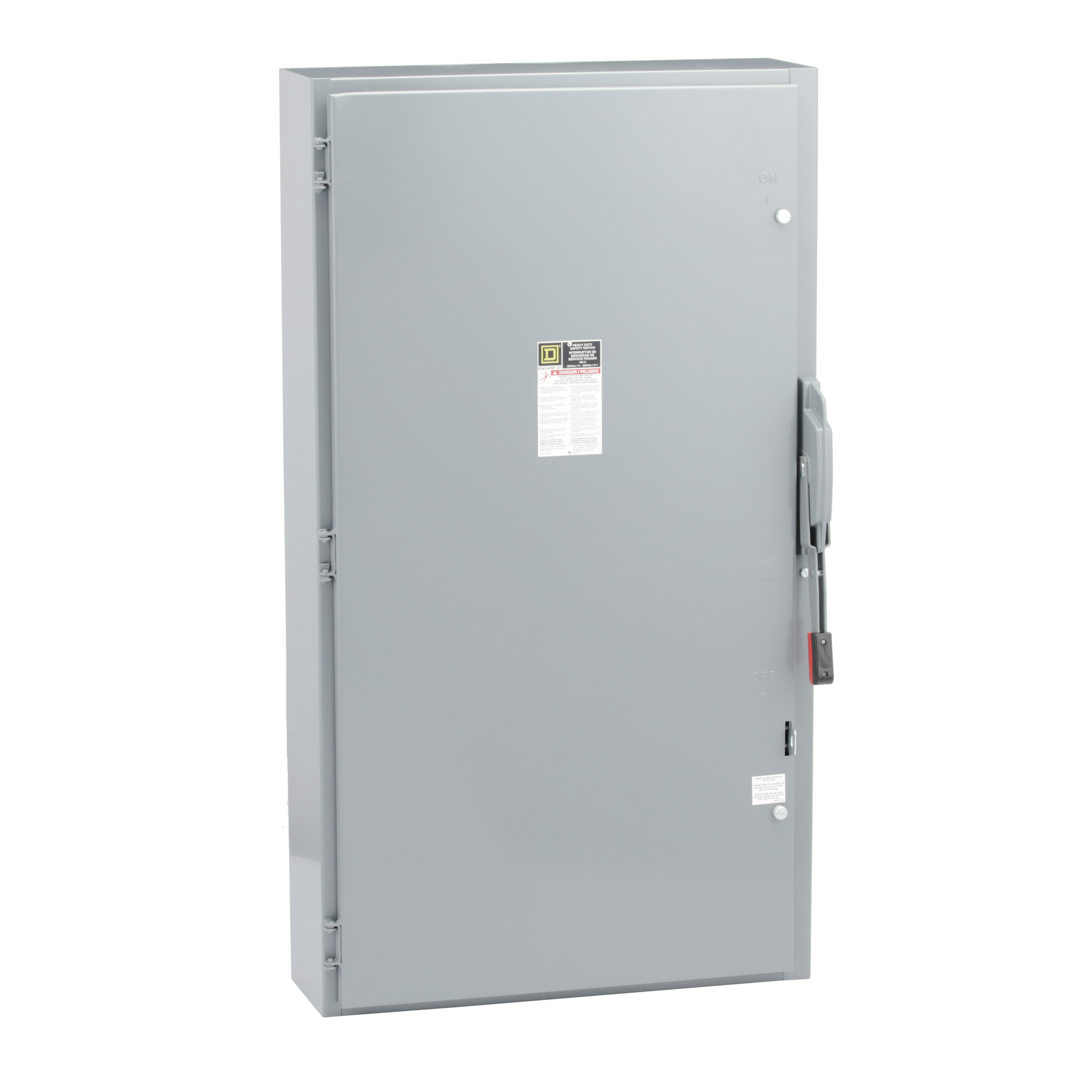

400 Amp 600VAC/DC Single Throw Safety Switch 2P

400 Amp 600VAC/DC Single Throw Safety Switch 2Pzoom

Attributes

Key Value
[Ue] Rated Operational .600 V AC/DC
Actuator TypeHandle/Single Throw
Amperage Rating400A, 400
Amps AC400 A
Applicationheavy application
Awg GaugeAWG 1/0...750 kcmil cop.
AWG RangeAWG 1/0...750 kcmil cop.
BrandSquare D by Schneider E.
California Proposition .Lead and lead compounds.
Catalog NumberHU265
China Rohs RegulationProduct out of China Ro.
ColorGray
Connectionlugs
Contact Form2PST
Country of OriginUnited States, MX - Mex.
Depth10.13 in., 10.13 in, 10.
Device Applicationheavy application
Device Compositionnone
Device Mountingsurface
Dimensions50.25 in H x 27.63 in W.
Disconnector Device Typenon-fusible disconnect
DutyHeavy
ECCNEAR99
Electrical Connectionlugs
EnclosureNEMA 1
Enclosure Depth6 - 12 inches
Enclosure Height30 inches and larger
Enclosure TypeNEMA 1
Enclosure Width20 to 29 3/4 inches
Environmental ConditionsGENERAL PURPOSE (INDOOR)
Environmental DisclosureENVPEP1404026EN
Eu Rohs DirectiveCompliant
FeaturesMercury Free, PVC Free
FinishPainted
Fusible / NonfusibleNonfusible
Halogen Content Perform.Halogen free plastic pa.
Height50.25 in, 50.25 in., 50.
Horsepower50 hp at 600 VDC
HP50 hp @ 250/600V DC
IP Rating20
ItemSafety Switch
Item TypeNon-fusible disconnect;.
Line Rated Current400 A
Made in USAYes
ManufacturerSchneider Electric
MaterialCold Rolled Steel
Material of ConstructionSteel
Maximum Load1
Mercury FreeYes
Metallic / Non-MetallicMetallic
Mountingsurface
Mounting typesurface
Mounting Typesurface
Nema Degree Of Protecti.NEMA 1 steel
NEMA Enclosure Type1
NEMA Rating1
Net Weight77.1 kg
No. of Poles2
No. of Wires2
Number of Poles2
Number Of Poles2
Number of Wires2
Phase1, 3 phase
Product CertificationsUL listed file E2875
Product Or Component Ty.Single Throw Safety Swi.
Protection MethodNonfusible
Pvc FreeYes
Rated Voltage600V AC/DC
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesE4
Series Nameheavy duty
Short Circuit Current R.200
Size10.13
Special Featuresheavy duty
StandardsUL listed
Sustainable Offer StatusGreen Premium product
Temperature Rating (Deg.-22 to 104
Terminal TypeLug
Tightening Torque550-550 lbf.in (AWG 1/0.
TypeHeavy Duty Safety Switc.
UNSPSC39122218
UPC785901451181
Voltage600V AC/DC
Voltage Rating600 V AC/DC, 600
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width27.63 in., 27.6 in, 27..
Wiring Configuration2-wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comHU2651161.931In Stock10SQUARE D1161.93 @ 1
thumbzoommayerelectric.comSQDHU2651192.551In StockSQUARE D169.621192.55 @ 1
thumbzoomstandardelectricsupply.com22153011245.591In StockSquare D (Schneider Electric)1245.59 @ 1
Newark15B88741297.91In StockSQUARE D BY SCHNEIDER ELECTRIC1297.9 @ 1
thumbzoomRadwellHU2651300.01In StockSCHNEIDER ELECTRIC SQUARE D1300.0 @ 1
thumbzoomZoroG98228111474.991In StockSquare D170.01474.99 @ 1
thumbzoomsustainablesupply.comC26823731577.661In StockSquare D170.01577.66 @ 1
Graybar882409472040.5281In StockSquare D (Schneider Electric)2040.528 @ 1
Grainger2JYF22566.01In Stock19SQUARE D2566.0 @ 1
thumbzoomcrescentelectric.com1996232900.571In StockSquare D by Schneider Electric2900.57 @ 1
thumbzoomRaptor SuppliesAH2PDG4089.31105051In StockSQUARE D4089.3110505 @ 1
