Martin 4 3V 530 TB

B004BKIE8U

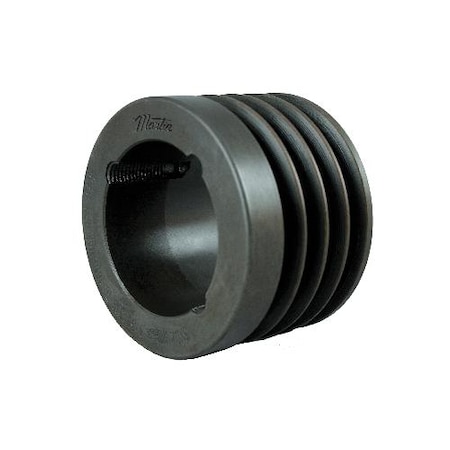

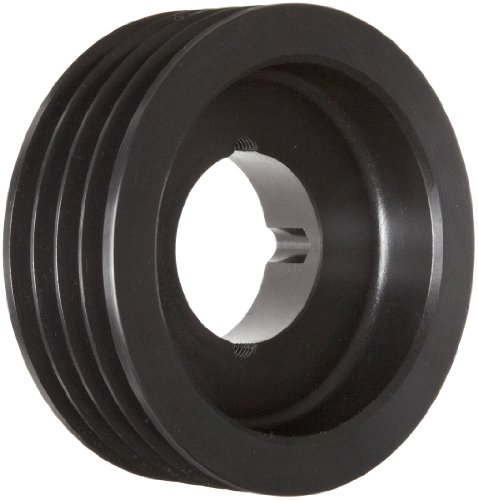

Martin 4 3V 530 TB Hi-Cap TB Sheave, 3V Belt Section, 4 Grooves, 1610 Bushing required, Class 30 Gray Cast Iron, 5.3" OD, 4681 max rpm, 5.25" Pitch Diameter

Martin 4 3V 530 TB Hi-Cap TB Sheave, 3V Belt Section, 4 Grooves, 1610 Bushing required, Class 30 Gray Cast Iron, 5.3" OD, 4681 max rpm, 5.25" Pitch Diameterzoom

Attributes

Key Value
Belt Cross Section3V
Bore TypeBushed
Bushed For1610
Bushing Maximum Bore Si.1.5
Bushing MountStandard
Bushing StyleTB
ConditionNew
Length Through Bore1 "
ManufacturerMartin Sprocket & Gear
MaterialSteel
Number of Grooves4
Outer Diameter5.3 in
Outside Dia5.300"
Pitch Diameter5.25 "
Sheave ConstructionSolid
Sheave Face Width1.90625 "
Sheave TypeHigh Capacity
UPC Code697950155951
Weight5.5 lbs, 6.000000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonB004BKIE8U52.241In StockMartin52.24 @ 1
us.rs-online.com72479768104.841In StockMartin Sprocket & Gear5.5104.84 @ 1
factorysupplyoutlet.comFT73RY112.841In Stock25MARTIN112.84 @ 1
thumbzoomindustrialrefrigerationparts.com4 3V 530 TB121.791In StockMartin Sprocket & Gear6.0121.79 @ 1
thumbzoomMRO Supply255050125.781In StockMartin Sprocket125.78 @ 1
thumbzoomPurvis4 3V 530 TB134.41In StockMartin134.4 @ 1
thumbzoomZoroG3316036134.561In Stock14Martin Sprocket & Gear134.56 @ 1
