- mpn1241.3012
- brandname: Schurter
- manufacturername: Schurter

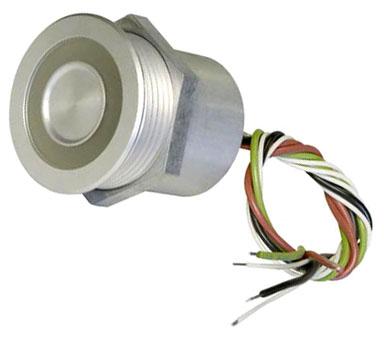

SCHURTER 1241.3012 SWITCH VANDAL RESISTANT SPST-NO 2.6A 42V (20 pieces)


- Manufacturer: SCHURTER
- Label: SCHURTER
Attributes
Key | Value |
---|
AC contacts rating @R | 0.1A / 42V AC |
Actuator Color | silver |
Actuator Marking | No Marking |
Actuator Type | Round Flush, Round, But. |
Application | For use in hostile envi. |
Backlight colour | red/green |
Body colour | silver |
Body material | aluminium |
Button shape | flat |
Category | Switches |
Circuit | SPST-NO |
Color | Natural |
Color - Actuator/Cap | silver |
Contact Form | 1NO |
Contacts configuration | SPST-NO |
Current Rating | 0.1 A |
Current Rating (Amps) | 100mA (AC/DC) |
DC contacts rating @R | 0.1A / 60V DC |
Dimensions, Cutout, Inc. | 30.3 Dia. mm |
Electrical Life | 20,000,000 Cycles |
Electrical life | 20000000 cycles |
Features | - |
Illumination | LED,, Illuminated |
Illumination Color | Green ; Red |
Illumination Type, Color | LED, Green/Red |
Illumination voltage | 24V DC |
Illumination Voltage (N. | 5 ~ 28 VDC |
Ingress Protection | IP67 - Dust Tight, Wate. |
IP Rating | IP67 |
IP rating | IP67 |
Lamp Voltage | 24 VDC |
Leads | leads 200mm |
Manufacturer | SCHURTER |
Manufacturer series | PSE NO 30 |
Material | Anodized Aluminum |
Mechanical impact resis. | IK02 |
Mechanical Life | - |
Mfr | SCHURTER Inc. |
Mounting hole diameter | ?30mm |
Mounting Hole Size | 30 mm |
Mounting Type | Panel Mount, Front, Pan. |
Number of positions | 2 |
Operating Force | 3N |
Operating Temperature | -40?C ~ 85?C |
Operating temperature | -20...60?C |
Operation | Off (Mom) |
Package | Bulk |
Panel Cutout Dimensions | Circular - 30.30mm Dia |
Product Status | Active |
Series | PSE Series, PSE |
Special Features | No moving parts |
Stable positions number | 1 |
Standards | CE Certified |
Switch Function | Off-Mom |
Switching method | OFF-(ON) |
Temperature Rating | -40 to +85 C |
Termination | Wire Leads |
Termination Style | Wire Leads |
Thread Type | M24 x 1.5, M27 x 1.5, M. |
Type | Piezo |
Type of switch | piezoelectric |
Voltage Rating | 42 V |
Voltage Rating - AC | 42 V |
Voltage Rating - DC | 60 V |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | TME | 1241.3012 | 55.86 | 1 | 20 | | SCHURTER | | 55.86 @ 20 |
| Digi-Key | 2538204 | 101.03 | 1 | 20 | | SCHURTER Inc. | | 101.03 @ 20 |
| RS Delivers | 607-7040 | 117.708 | 1 | 20 | | Schurter | | 117.708 @ 20 |
  | Newark | 88K1313 | 144.93 | 20 | 20 | | SCHURTER | | 144.93 @ 20 |
| us.rs-online.com | 70020908 | 149.95 | 10 | 20 | | Schurter | | 149.95 @ 20 |
| Radwell | 12413012 | 153.59 | 20 | 20 | | SCHURTER | | 153.59 @ 20 |
