Enerpac SLLD121

mpnSLLD121
brandname: Enerpac
manufacturername: Enerpac

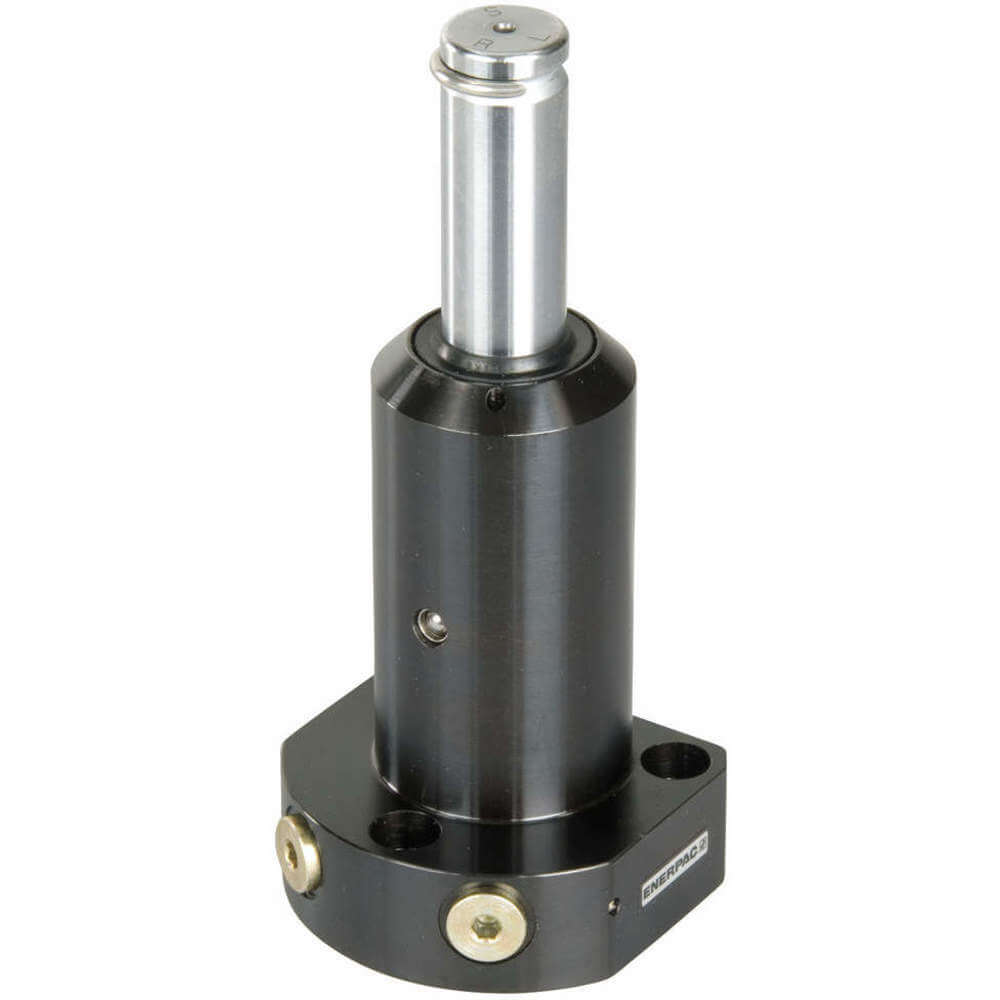

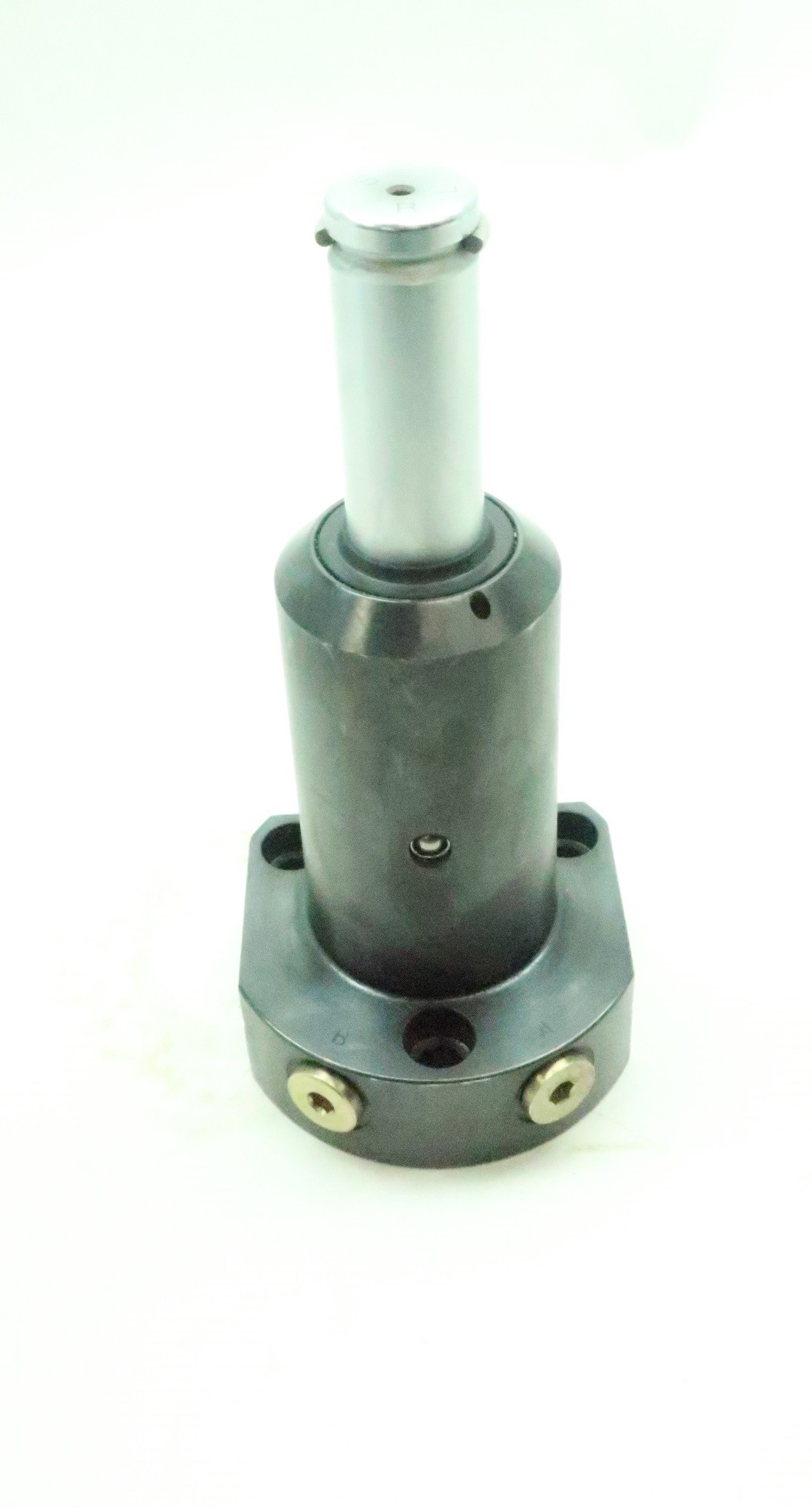

Swing Cylinder, Lower Flange, 2600 lb

Swing Cylinder, Lower Flange, 2600 lb

zoom

Brand: Enerpac
PartNumber: SLLD121
PackageQuantity: 1
Manufacturer: Enerpac
Label: Enerpac

Attributes

Key	Value
Body Material	Steel
Bolt Size	5/16"-24
Clamping Force	2,600 lb
Clamping Stroke	0.5 in
Cylinder Type	Swing
Effective Area Clamped	0.63 sq in
Effective Area Unclamped	1.23 sq in
Extended Height	6.75 in
Includes	Mounting Bolts and Arm .
Item	Swing Clamp Hydraulic C.
Material of Construction	Steel
Max. Oil Flow	100 cu in/min
Max. Pressure	5,000 psi
Min. Hole Depth	0.88 in
Mounting Hole Dia.	0.347 in
Mounting Style	Lower Flange
Number of Bolts	3
Oil Capacity Clamped	0.7 cu in
Oil Capacity Unclamped	1.4 cu in
Outside Dia.	1.88 in
Port Size	#4 SAE
Pressure Range	500 to 5000 psi
Promotion Restriction	Not eligible for promot.
Series	SLL
Single Acting/Double Ac.	Double Acting
Stroke	1.12"
Swing Angle	90 Degrees
Total Stroke	1.1 in
Turns	Left
Type	Swing

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	NRI Industrial	D722722	156.95	1	In Stock		ENERPAC		156.95 @ 1
	Zoro	G3090473	722.0	1	In Stock		Enerpac	4.33	722.0 @ 1
	Grainger	5UWX1	787.97	1	In Stock		ENERPAC		787.97 @ 1
	sustainablesupply.com	C3022974	858.81	1	In Stock		Enerpac	4.33	858.81 @ 1
	Raptor Supplies	AE6TDF	1141.9875675	1	In Stock		ENERPAC		1141.9875675 @ 1
