Genteq 3985

mpn3985
brandname: GENTEQ
manufacturername: GENTEQ

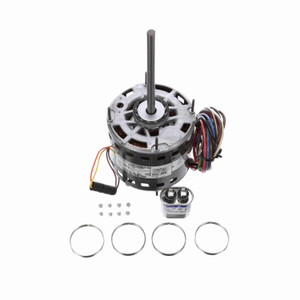

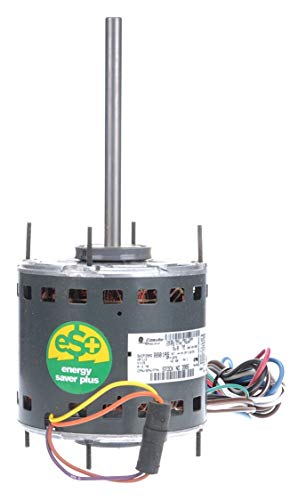

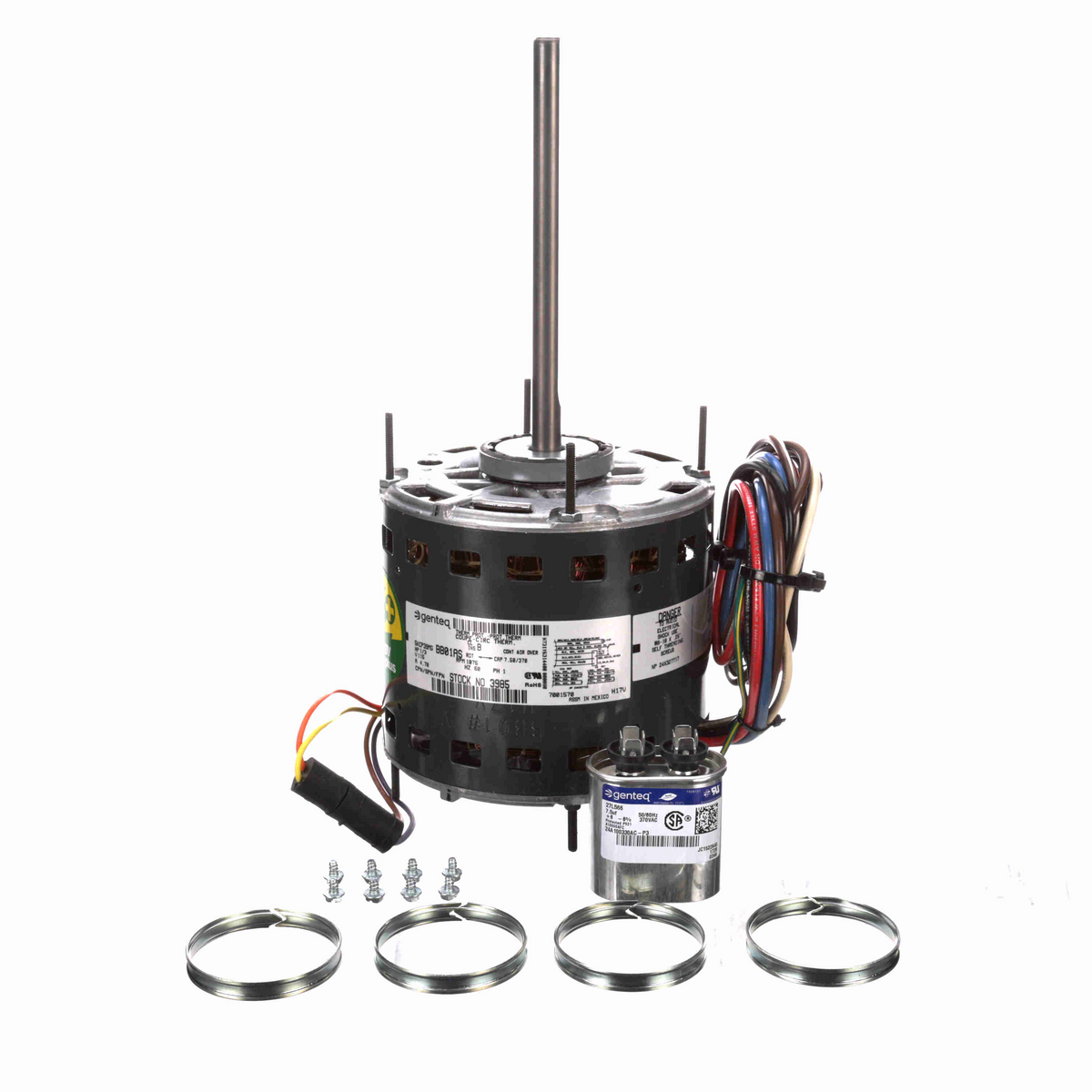

Motor, PSC, 1/3 HP, 1075 RPM, 115V, 48, OAO

Motor, PSC, 1/3 HP, 1075 RPM, 115V, 48, OAO

zoom

Brand: Genteq
PartNumber: 3985
PackageQuantity: 1
Manufacturer: GENTEQ
Label: GENTEQ

Attributes

Key	Value
Amps	4.9, 4.70
Bearings	Sleeve
Brand	Genteq
C-Dimension	12.39 (in.)
Capacitor	7.5MFD/370VAC
Catalog Number	3985
CE	N
CSA	Y
DE Bearing Type	Ball
DEM Reference	3985
Duty	Continuous Air Over
Electrical Type	Permanent Split Capacit.
Enclosure Type	OAO (Open Air Over), Op.
Frame	5.6"
Frame Material	Rolled Steel
Frame Type	48
Frequency	60
HP	1/3
Hz	60
Insulation Class	B
IP Code	-
KVA Code	-
Max Ambient	40?C
Motor Diameter	5.6"
Motor Orientation	Any
Motor Shell Length	4-3/4"
Mounting	Stud
Mounting Type	Round Belly Band
Number of Speeds	3
ODE Bearing Type	Ball
Phase	1
Product Category	HVAC/R Motors > Fan an.
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible
RPM	1075
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
Service Factor	1
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	6.50 (in.)
Shaft Length	4"
Shaft Type	Flat
Ship Weight	16 lbs.
Speeds	3
Thermal Protection	Automatic
Type of Overload Protec.	Thermally Protected
UL	Recognized
Volts	115

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AmazonSC	B0098P7SQ2	190.81	1	In Stock		Genteq		190.81 @ 1
	patrickssupply.com	3985	191.81	1	In Stock		GENTEQ		191.81 @ 1
	industrialstores.com	3985	210.99	1	In Stock	12	Genteq (Regal Beloit)		210.99 @ 1
	Dreisilker	GE-RBC-3985	217.74	1	In Stock		Genteq		217.74 @ 1
	emotorpro.com	3985	219.07	1	In Stock		Genteq	16.0	219.07 @ 1
