GRAINGER APPROVED 4FMJ8

B01M1PBOOR

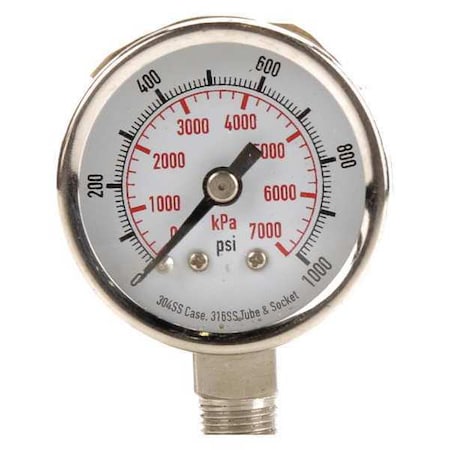

Pressure Gauge, Test, 1-1/2 in

Pressure Gauge, Test, 1-1/2 inzoom

Attributes

Key Value
Accuracy+/-3-2-3%
Accuracy ScaleMid-Scale
Ambient Operating Tempe.-40 Degrees to 150 Deg.
Basic Gauge Case Materi.Stainless Steel
Basic Gauge Lens Materi.Plastic
Basic Gauge Sensor Mate.Stainless Steel
Basic Gauge Socket Mate.Stainless Steel
Basic Gauge Wetted PartsStainless Steel
Bezel MaterialCrimped Stainless Steel
Blowout Safety BackNo
Calibration Certificate.No
Case ColorSilver
Cleaned for Oxygen Serv.No
ColorStainless Steel
Connection LocationBottom
Connection Size1/8 in NPT
Country of Origin (subj.China
Dial ColorWhite
Dial Size (In.)1-1/2
Dry Dampening FeatureNone
Field FillableNo
For Use WithAir, Water, and Oils in.
Freeze Resistant Moveme.No
Gauge Accuracy+/-3-2-3%
Gauge ApplicationTest
Gauge Case ColorStainless Steel
Gauge Case LiquidNone
Gauge Case Material304 Stainless steel
Gauge Connection Locati.Bottom
Gauge Connection Size1/8 in
Gauge Connection TypeMNPT
Gauge Lens MaterialAcrylic
Gauge Nominal Dial Size1 1/2 in
Gauge Panel MountableNo
Gauge Primary Range Sma.10
Gauge Primary Range Uni.psi
Gauge Primary Range Val.0 to 1000
Gauge Secondary Range U.kPa
Gauge Secondary Range V.0 to 7000
Gauge Sensor Material316 Stainless Steel
Gauge Socket Material316 Stainless Steel
Hazardous Location Rati.Not Rated
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugNo
IP/NEMA RatingNot Rated
ItemCommercial Pressure Gau.
Lens MaterialAcrylic
Liquid FilledNo
Liquid-Filled CaseNo
Material304 Stainless steel
Max. Pressure (PSI)1000
Nominal Dial Size1 1/2 in
Non-SparkingNo
Operating Temp. Range-40 Degrees to 150 Deg.
Panel-MountableNo
Pressure and Vacuum Gau.Pressure Gauge
Pressure Gauge TypeCommercial Pressure Gau.
Pressure Range TypePressure
Primary Pressure Range0 to 1,000
Primary Scale Minor Gra.1, 2
Primary Scale Unitspsi
Process Connection Gend.Male
Process Connection Loca.Bottom
Process Connection Size1/8 in
Process Connection TypeNPT
Range0 to 1000 psi, 0 to 700.
Removable BezelNo
Scale TypeDual
Secondary Pressure Range0 to 7,000
Secondary Scale UnitskPa
Sensor Material316 Stainless Steel
Smallest Graduation10 psi
Socket Material316 Stainless Steel
Vibration ResistanceNone
