Harwin M50-3901542

mpnM50-3901542
brandname: Harwin Inc.
manufacturername: Harwin Inc.

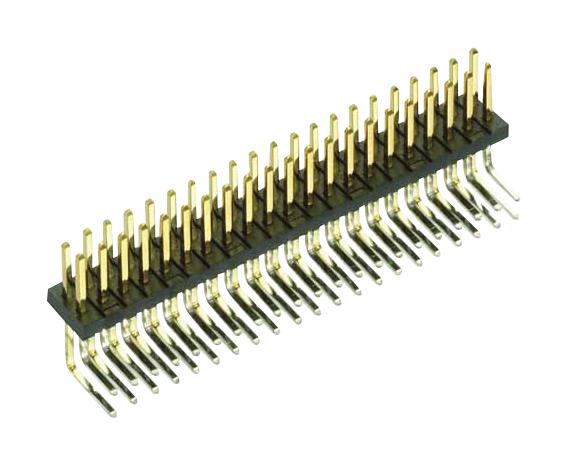

HARWIN M50-3901542

HARWIN M50-3901542

zoom

Brand: Harwin
PartNumber: M50-3901542
Model: M50-3901542
Manufacturer: HARWIN
Label: HARWIN

Attributes

Key	Value
Applications	-
Base Product Number	M50-390
Category	Connectors, Interconnec.
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	3.00?in (0.076?m)
Contact Finish Thicknes.	98.4?in (2.50?m)
Contact Length - Mating	0.150" (3.81mm)
Contact Length - Post	0.079" (2.00mm)
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1A per Contact
Fastening Type	Push-Pull
Features	-
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.039" (1.00mm)
Insulation Material	Thermoplastic
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Harwin Inc.
Mounting Type	Through Hole, Right Ang.
Number of Positions	30
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40?C ~ 105?C
Overall Contact Length	-
Package	Tray
Part Status	Active
Pitch - Mating	0.050" (1.27mm)
Row Spacing - Mating	0.050" (1.27mm)
Series	Archer M50
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Newark	03M4161	3.25	200	30		HARWIN		3.25 @ 100
	Digi-Key	2762127	3.86	1000	30		Harwin Inc.		3.86 @ 1
