Molex / Waldom 09-48-4028

B00II03D1W

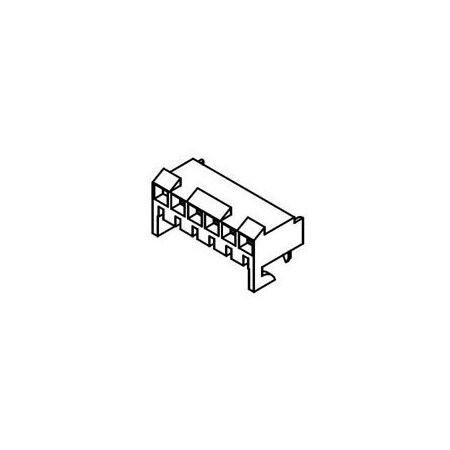

Molex / Waldom 09-48-4028 Connector Headers and PCB Receptacles

Molex / Waldom 09-48-4028 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
Connector TypeReceptacle
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.60.0?in (1.52?m)
Contact Finish Thicknes.60.0?in (1.52?m)
Contact Length - Post0.120" (3.05mm)
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeFemale Socket
Current Rating (Amps)5A
Fastening TypeLocking Ramp
FeaturesBoard Hooks
Ingress Protection-
Insulation ColorNatural
Insulation Height0.449" (11.40mm)
Insulation MaterialPolyester
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole
Number of Positions2
Number of Positions Loa.All
Number of Rows1
Operating Temperature-40?C ~ 105?C
Part StatusActive
Pitch - Mating0.156" (3.96mm)
Row Spacing - Mating-
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating600V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet00094840280.244371100Molex0.24437 @ 100
Verical09-48-40280.251282393Molex0.25 @ 128
WaldomMOLEX 09-48-40280.25425013068MOLEX0.254 @ 250
Onlinecomponents.com09-48-40280.25615736MOLEX / WALDOM0.256 @ 100
thumbzoomjensentools.com101504080.34112131Molex0.34 @ 100
us.rs-online.com714532920.352681100Molex Incorporated0.35268 @ 100
HotendaH14203750.35421100Molex0.3542 @ 100
Mouser538-09-48-40280.43613595Molex0.436 @ 100
Newark90M31870.459111898MOLEX0.459 @ 100
Digi-KeyWM13499-ND0.5061100Molex Connector Corporation0.506 @ 100
thumbzoomZoroG7784984122.51100Molex122.5 @ 100
