SCHLAGE S40D JUP 626

mpnS40D JUP 626
brandname: Schlage
manufacturername: Schlage

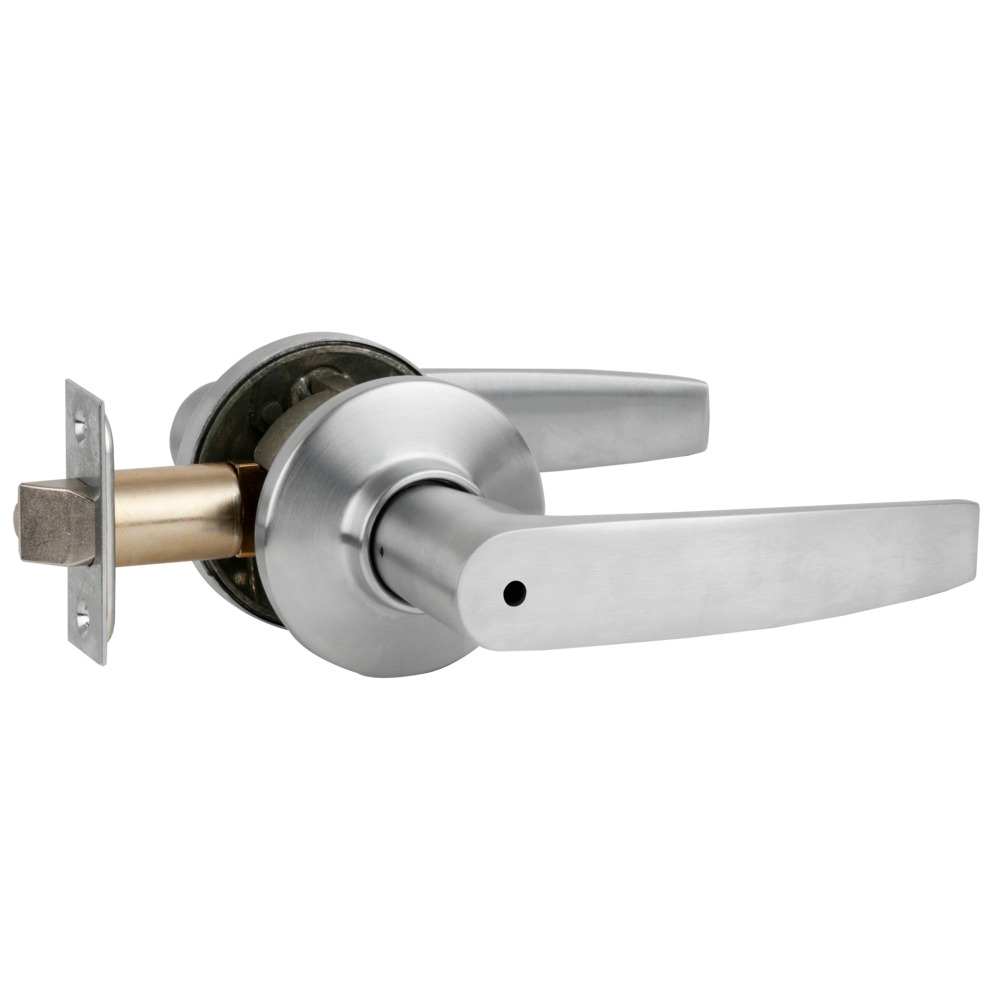

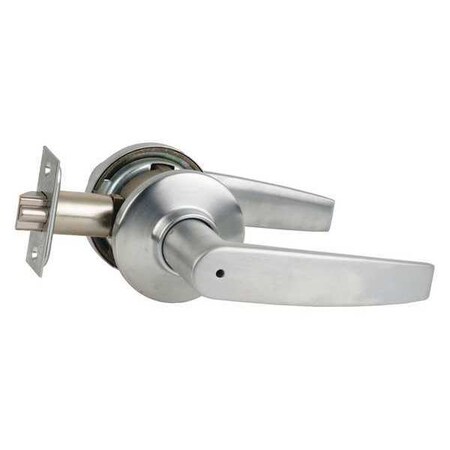

Schlage S40D JUP 626 S Series Privacy Latch, Zinc

Brand: SCHLAGE
PartNumber: S40D JUP 626
Model: S40D JUP 626
PackageQuantity: 1
Binding: Misc.
Manufacturer: Schlage Lock Company
Label: Schlage Lock Company

Attributes

Key	Value
ADA Approved	False
ADA Compliant	No
ANSI Function	F76
Backset	2-3/8 Inch or 2-3/4 Inc.
Bolt Protection	1/2 In.
Chassis Material	Zinc
Color	Satin Chrome
Color Code	626/US26D
Country of Origin (subj.	Mexico
Cylinder Core Type	Not Included
Door Thickness	1-3/8" To 1-7/8"
Dust Box	Plastic
Electrical/Mechanical	Mechanical
Features	Concealed Mounting Scre.
Finish	Satin Chrome
Finish Description	Satin Chrome
Finish Family	Satin Chrome
Fire Rated	Not Rated
For Use With	various Door Types
Front Size	1" x 2-1/4"
Function	40-Privacy
Function Description	Outside knob/lever lock.
Function Family	Privacy/Bedroom/Bathroom
Grade	ANSI/BHMA Grade 2, 2
Handle Material	Brass
Includes	Strike
Item	Lever
Key Type	Not Keyed
Keying	Unkeyed
Keyway Type	None
Latch Backset Dim	Adjustable 2-3/8 In. an.
Latch Corner	Square
Latch Number	16-203
Latch Throw	1/2 Inch
Latch Type	Dead Latch
Lever Length-Inches	4-1/4 Inch
Lever Material	Pressure Cast Zinc
Lever Projection	2-1/2 Inch
Lever Style	JUP-Jupiter
Lever Style Family	Straight Lever
Lever/Knob Design	JUP - Jupiter
Ligature Resistant	No
Location Type	Commercial
Lock Face Size	2-1/4 In. x 1 In.
Lockset Finish	Satin Chrome
Lockset Fire Rating	Not Rated
Lockset Function	Privacy
Lockset Grade	2
Lockset Handle Type	Lever
Lockset Performance Str.	Medium Duty
Manufacturer Parent	Allegion
Mortise / Cylindrical	Cylindrical
Mortise/Cylindrical	Cylindrical
Number of Keys	0
Number of Pins	0
Package Qty	1
Product Type	Cylindrical Lock
Required Door Thickness	1-3/8 in to 1-7/8 in
Rose Diameter	2-9/16 Inch
Rose/Escutcheon Trim	Round Rose
Series	S
Standards	ANSI A156.2 Series 4000.
Strike	T-Strike, 1-1/8 Inch x .
Strike Dim.	1-1/4 in x 2-3/4 in
Strike Height	2-3/4 In.
Strike Number	10-001
Strike Size	1-1/8" x 2-3/4" x 3/32"
Strike Type	T Strike, T-Strike
Strike Width	1-1/8 In.
Style	S Jupiter
Sub-Series	CL_Tubular_Locks_schlag.
Thickness	1-3/4 In.
Visual Indicator Message	No Message
Warranty	3 Year Limited

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
thebuilderssupply.com	SCH_S40DJUP626	194.4	1	14		Schlage		194.4 @ 1
Zoro	G4066627	244.89	1	In Stock	8	Schlage	2.7	244.89 @ 1
DK Hardware	S40D JUP 626	283.5	1	In Stock		Schlage Commercial		283.5 @ 1
