TE Connectivity 1-1586586-0

B010IHWS04

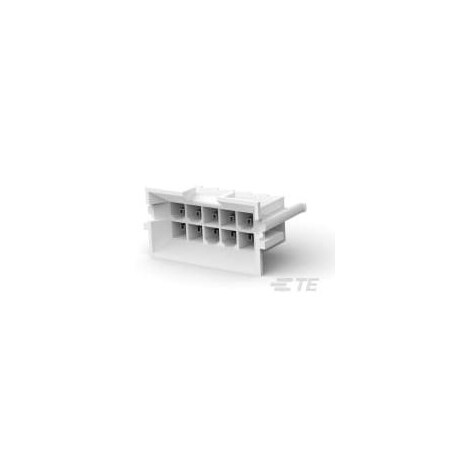

TE Connectivity Part Number 1-1586586-0

TE Connectivity Part Number 1-1586586-0zoom

Attributes

Key Value
ApplicationsGeneral Purpose, Indust.
Base Product Number1586586
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.39.4?in (1.00?m)
Contact Finish Thicknes.39.4?in (1.00?m)
Contact Length - Mating-
Contact Length - Post0.138"" (3.50mm)
Contact MaterialBrass Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)9A
Fastening TypeLatch Holder
FeaturesBoard Lock
Ingress Protection-
Insulation ColorNatural
Insulation Height0.555"" (14.10mm)
Insulation MaterialPolyamide (PA), Nylon
Mated Stacking Heights-
Material Flammability R.UL94 V-2
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts10
Number of Positions10
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40?C ~ 105?C
Overall Contact Length-
PackageTray
Part StatusActive
Pitch4.20 mm (0.165")
Pitch - Mating0.165"" (4.20mm)
Primary TypeSoft Shell
Row Spacing - Mating0.165"" (4.20mm)
SeriesVAL-U-LOK Series, VAL-U.
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
TypeVertical Header
Voltage Rating600VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com700415970.331910TE Connectivity0.33 @ 1
WaldomTE CONNECTIVITY AMP BRAND 1-1586586-00.43260910TE CONNECTIVITY/AMP BRAND0.43 @ 130
RS Delivers865-37190.61321195TE Connectivity0.6132 @ 1
Digi-Key23244070.6215865910195TE Connectivity AMP Connectors0.6215865 @ 910
Newark40P83510.631910158AMP - TE CONNECTIVITY0.631 @ 500
thumbzoomZoroG7057869301.15130158Te Connectivity1.15 @ 130
AmazonSCB010IHWS04663.421195TE Connectivity663.42 @ 1
