TE Raychem 1-1586586-4

B07NQRSZ94

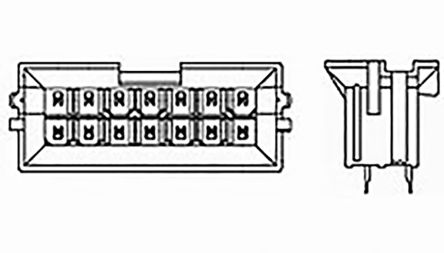

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
ApplicationsGeneral Purpose, Indust.
Base Product Number1586586
Body OrientationStraight
BrandTE Connectivity
CategoryConnectors, Interconnec.
Connector SystemWire to Board
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.39.4?in (1.00?m)
Contact Finish Thicknes.39.4?in (1.00?m)
Contact Length - Mating-
Contact Length - Post0.138" (3.50mm)
Contact MaterialBrass, Brass Alloy
Contact PlatingTin
Contact ShapeSquare
Contact TypeMale Pin
Current Rating9.0A
Current Rating (Amps)9A
Fastening TypeLatch Holder
FeaturesBoard Lock
Ingress Protection-
Insulation ColorNatural
Insulation Height0.555" (14.10mm)
Insulation MaterialPolyamide (PA), Nylon
Mated Stacking Heights-
Material Flammability R.UL94 V-2
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number Of Contacts14
Number of Positions14
Number of Positions Loa.All
Number Of Rows2
Number of Rows2
Operating Temperature-40?C ~ 105?C
Overall Contact Length-
PackageTray
Pitch4.2mm
Pitch - Mating0.165" (4.20mm)
Product StatusActive
Row Spacing - Mating0.165" (4.20mm)
SeriesVAL-U-LOK
Shrouded/UnshroudedShrouded
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Termination MethodSolder
Voltage Rating600VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRS Delivers865-37160.7548100158TE Connectivity0.7548 @ 100
Digi-Key23244090.85933270011696TE Connectivity AMP Connectors0.859332 @ 700
