Leeson 102024.00

B00EPKF9C0

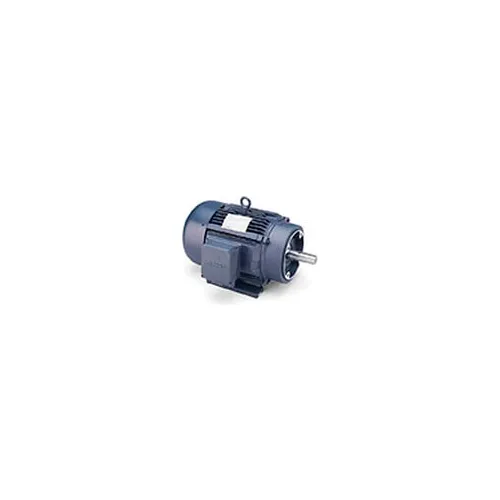

Leeson 102024.00 General Purpose C Face Motor, 3 Phase, S56C Frame, Rigid Mounting, 1/2HP, 1800 RPM, 208-230/460V Voltage, 60/50Hz Fequency

Leeson 102024.00 General Purpose C Face Motor, 3 Phase, S56C Frame, Rigid Mounting, 1/2HP, 1800 RPM, 208-230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating1.8/0.9 A
Amps1.8-1.8/0.90
Application TypeGeneral Purpose AC Moto.
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/GroupC4T17FK2
CompositionSteel
ConstructionRolled Steel
CT Speed Range2:1
Description:..1/2HP..1725RPM.S56C.T.
Dimensions10.69 in L x 6.62 in H
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency77, 77.0%
Efficiency %77 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight23.00
Family SeriesLeeson Motors, Three Ph.
FL Amps1.8/.9&2.1/1.05
FL Efficiency77
FrameS56C, 56C
Frame MaterialRolled Steel
Frame RemarksFOOTED
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz50, 60
Horsepower0.5 hp, 1/2 hp
HP0.50, 0.5, 1/2
Hz60
Insulation ClassClass F, F
Inverter DutyYes - Constant 10:1
Item ConditionFACTORY NEW
Item Number102024.00
KW0.37
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number102024.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:102024.00
Model NumberC4T17FK2
Motor Shell Length6.00"
MountingFoot Mount, Rigid Base
mountingC-face w/ rigid base
Mounting TypeC-Face/Rigid Base, C-Fa.
NEMA FrameS56C
Net Weight23 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length10.69", 10.69 "
Part Number102024.00
Phase3, 3 ph
Product SeriesThree Phase C Face
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1,800 RPM, 1700 - 1800,.
Service Factor1.15
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight26 lbs.
Speed1725 rpm
Speed (RPM)1725
Supplier:LEESON ELECTRIC CORPORA.
Thermal ProtectionAutomatic
UPC:691720006207
Voltage208-230/460, 208V, 230V.
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com102024313.01In StockLEESON26.0313.0 @ 1
thumbzoomMRO Supply2525120441.631In StockLeeson441.63 @ 1
thumbzoomemotorpro.com102024.00481.961In StockLeeson26.0481.96 @ 1
thumbzoomDealers Electric102024.00551.491In StockLeeson26.0551.49 @ 1
thumbzoommotorsandcontrol.comLE-102024.00605.761157Leeson Electric23.0605.76 @ 1
thumbzoomZoroG2484130611.991In Stock10Leeson611.99 @ 1
us.rs-online.com73396598617.051In StockLeeson617.05 @ 1
thumbzoomGalco102024.00-LEES633.721In StockLeeson23.0633.72 @ 1
thumbzoomWalker Industrial102024-00686.531In Stock10Leeson686.53 @ 1
thumbzoomGlobal IndustrialWBB221765739.02In StockLeeson739.0 @ 2
kscdirect.comLEE 102024.00743.851In StockLEESON ELECTRIC CORPORATION743.85 @ 1
thumbzoompumpproducts.com102024.00783.821In StockLeeson783.82 @ 1
