Leeson 121869.00

B00EP2K2UW

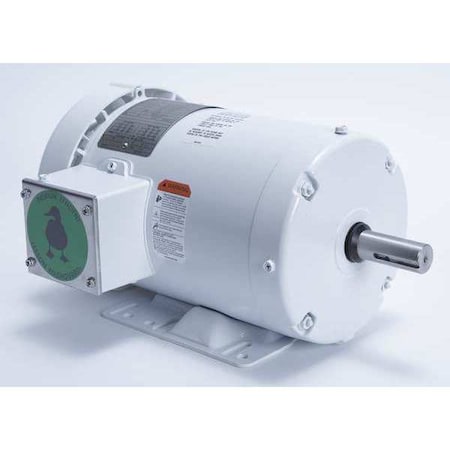

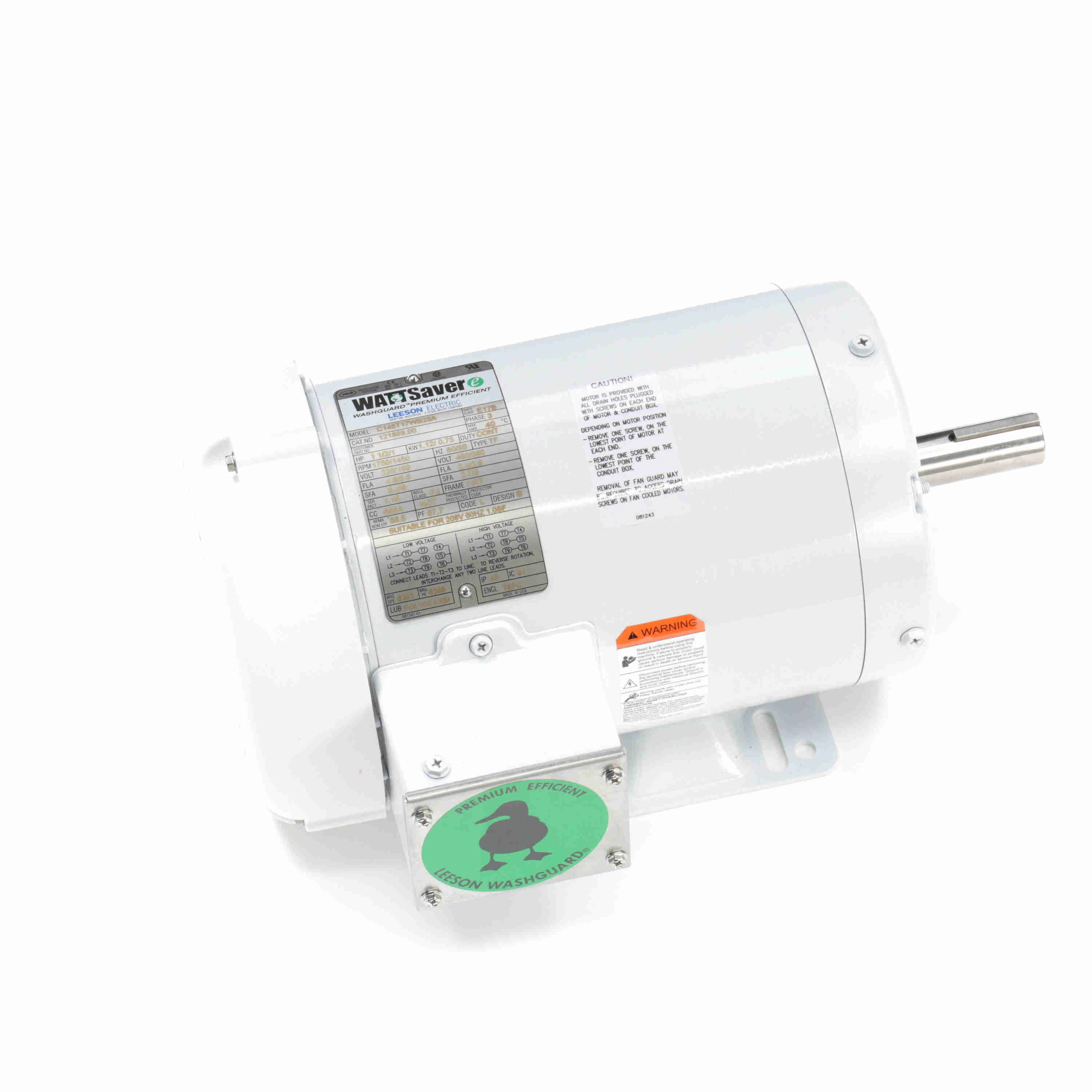

Leeson 121869.00 White Epoxy Painted Washguard Motor, 3 Phase, 145T Frame, Rigid Mounting, 1 1/2HP, 1800 RPM, 208-230/460V Voltage, 60/50Hz Fequency

Leeson 121869.00 White Epoxy Painted Washguard Motor, 3 Phase, 145T Frame, Rigid Mounting, 1 1/2HP, 1800 RPM, 208-230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating4.4 A
ApplicationGeneral Purpose
ApprovalsCSA, UL
Bearing Type12.75, Ball
Body Dia.7.4 in
BrandLeeson
CC NumberCC005A
Class/GroupC145T17WB23
CompositionSteel
ConstructionRolled Steel
CT Speed Range10:1
Description:..1 1/2HP..1750RPM.145..
Dimensions12-3/4 in L
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Efficiency86.5
Efficiency %86.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight51.00
Family SeriesLeeson Motors, Washguar.
FL Amps4.8/2.4&5.6/2.8
FL Efficiency86.5
Frame145T
Frame MaterialRolled Steel
Frequency60
Frequency Rating50/60 Hz
Gross Weight0 lbs
Hertz50, 60
Horsepower1-1/2 hp
HP1.5, 1.50, 1 1/2
Hz60
Insulation ClassClass F, F
International ShippingNo
ItemWashdown Motor
Item Number121869.00
KW1.1
Length Less Shaft11 1/16 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number121869.00
Manufacturers Warranty .1 yr
MaterialStainless Steel
MFG Part #:121869.00
Model NumberC145T17WB23
Motor ApplicationWashdown
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Service Factor1.15
Motor Shaft RotationCCW, CW
Motor Thermal ProtectionNone
MountingFoot Mount
Mounting TypeRigid, Foot Mount, Rigid
Mpn121869.00
Nameplate RPM1,750
NEMA Frame145T
Net Weight51 lbs
Nominal Efficiency86.5 %
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length12.75 ", 13 7/16 in
Part Number121869.00
Phase3, Three
Product SeriesWashguard
Product TypeWashdown Duty
RotationReversible
RPM1,800 RPM, 1700 - 1800
RPM Range1,701-1,800
Service Factor1.15, 1.149
Shaft Dia.7/8 in
Shaft DiameterUL;CSA, 0.875
Shaft Length2 1/4 in, 2.25
Shaft Size7/8 in Dia
SKUZO-G4609230
Special Features86.5% Full Load Efficie.
Speed1800 rpm
Speed (RPM)1750
SubCategoryMotors/Ac Motors
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC691720005439
UPC:691720005439
Voltage208V, 230V, 460V, 230/4.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com121869429.01In StockLEESON429.0 @ 1
thumbzoomZoroG4609230579.9911Leeson44.99579.99 @ 1
AmazonTPB01MQ0SD0C586.181In Stock5Leeson / Regal Beloit586.18 @ 1
thumbzoomMRO Supply2526284596.771In StockLeeson596.77 @ 1
thumbzoomsimsupply.comZO-G4609230686.441In StockLeeson686.44 @ 1
thumbzoommotorsandcontrol.comLE-121869.00734.551In StockLeeson Electric51.0734.55 @ 1
us.rs-online.com73396514740.321In StockLeeson740.32 @ 1
thumbzoomGalco121869.00-LEES740.321In StockLeeson51.0740.32 @ 1
kscdirect.comLEE 121869.00775.831In StockLEESON ELECTRIC CORPORATION775.83 @ 1
thumbzoomWalker Industrial121869-00885.631In Stock17Leeson885.63 @ 1
thumbzoomGlobal IndustrialWBB2281251125.01In StockLeeson1125.0 @ 1
thumbzoomRaptor SuppliesAJ2RKA1190.99453851In StockLEESON1190.9945385 @ 1
thumbzoompumpproducts.com121869.001249.291In StockLeeson1249.29 @ 1
