Square D LC1K09008G7

B00CONCMMU

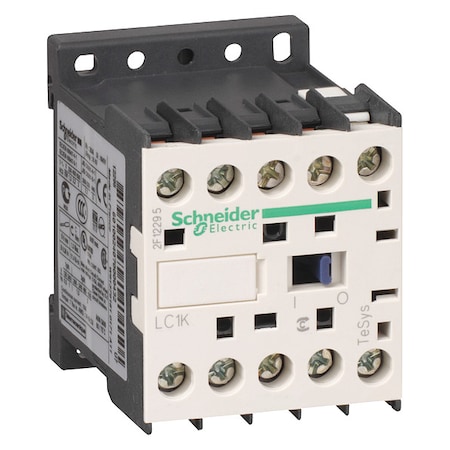

Square D Lc1K09008G7 Contactor 600Vac

Square D Lc1K09008G7 Contactor 600Vaczoom

Attributes

Key Value
3-Phase HP Rating (Max.)5 hp
ApplicationResistive load;Control
Aux. Contact Configurat.None
BrandSchneider Electric
Catalog NumberLC1K09008G7
Coil Power Rating4.5-4.5 VA 20 A Degrees.
Coil Voltage120 V AC 50/60 Hz, 120 .
Coil Volts120 V AC
Connectionscrew clamp terminals 1.
Contact Configuration2 NO + 2 NC, 2 NO 2 NC
Contact Current Rating20 A
Contact Operation2NO/2NC
Contact Rating20 A 50 A Degrees C POW.
Contactor TypeNon-Reversing
Control Voltage120 V
Country of OriginID - Indonesia, Indones.
Depth2.24 in
ECCNEAR99
Enclosure NEMA RatingNo Enclosure
Environmental AttributesMercury Free, Toxic Hea.
Fire RatingUL 94 V1, NF F 16-101, .
Frame / Series / Class .TeSys
Full Load Amps-Inductive9 A
Full Load Amps-Resistive20 A
Height2.28 in
Hz50/60
Impedance3 mOhm
Impulse Withstand Volta.8 kV
ItemIEC Magnetic Contactor
Item TypeContactor
Made in USANo
ManufacturerSchneider Electric
Max. Inductive Amps (AC.9A
Max. Resistive Amps (AC.15A
MountingRail Plate
Mounting TypeDIN Rail Mount
Number of Poles4
Operating Temperature-25-50 A Degrees C
Rated Voltage690V AC
ReversingNo
SeriesTeSys Micra Series, LC1.
Shock Resistance10 G for 11 ms (on X ax.
Size45 MM,57 MM,58 MM
Special Features20 A AT
StandardBS 5424-IEC 60947-NF C .
StandardsBS, IEC, NF C, VDE, BS .
Sub BrandTeSys K
Terminal TypeScrew Clamp
Tightening Torque0.8 to 1.3 Nm
UNSPSC39121529
UPC785901756774
UPC Code785901756774
Vibration Resistance4 G (Contactor Closed),.
Warranty DescriptionContractual Warranty:18.
Width1.77 in
Working Height6561.68 ft

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMELC1K09008G745.571In StockSCHNEIDER ELECTRIC45.57 @ 1
RS Delivers844-935548.396119Schneider Electric48.396 @ 1
thumbzoomgordonelectricsupply.comLC1K09008G783.591In Stock10SQUARE D83.59 @ 1
thumbzoomZoroG056873684.851In StockSchneider Electric0.484.85 @ 1
thumbzoomcrescentelectric.com19190697.281In StockSchneider Electric97.28 @ 1
thumbzoomRadwellLC1K09008G7100.01In StockSCHNEIDER ELECTRIC TELEMECANIQUE100.0 @ 1
thumbzoomsustainablesupply.comC3039196105.811In StockSchneider Electric0.4105.81 @ 1
Newark33M9246114.011In StockSCHNEIDER ELECTRIC114.01 @ 1
us.rs-online.com70747252117.79112Schneider Electric117.79 @ 1
Graybar25075607117.90241In StockSquare D (Schneider Electric)117.9024 @ 1
