- mpnXS1CA2JCR
- brandname: US Motors (Nidec)
- manufacturername: US Motors (Nidec)

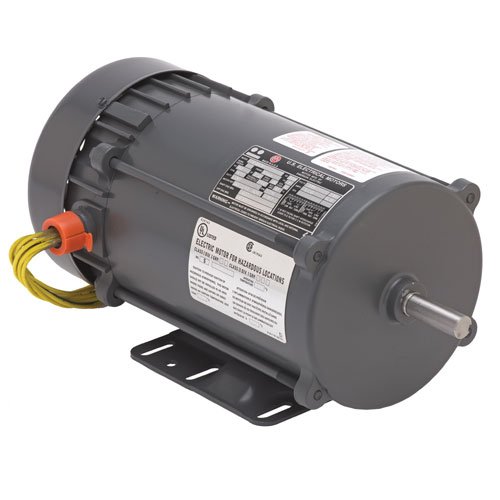

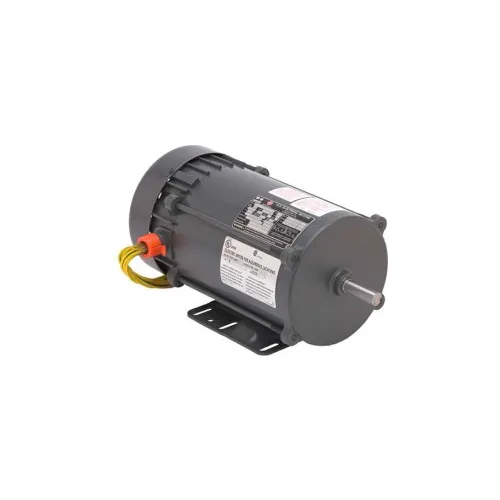

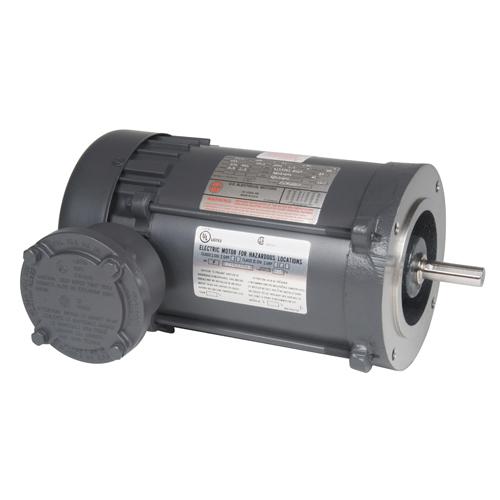

US Motors (Nidec) XS1CA2JCR - Explosion Proof/Hazardous Location Motor - 1 ph, 1 hp, 1800 rpm, 115/208-230 V, 56C Frame, TEFC Enclosure, 60 Hz
- Binding: Misc.
- Manufacturer: US Motors (Nidec)
- Label: US Motors (Nidec)
Attributes
| Key | Value |
|---|
| Amps | 14.0/6.9-7.0 |
| Bearings | Ball |
| Class/Group | Class I and II Group C,. |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Efficiency | 70% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 48.36 |
| Explosion Proof Rating | Class I (Group C,D) Cla. |
| Family Series | US Motors Motors |
| FL Amps | 14.0/6.9-7.0 |
| FL Efficiency | 70 |
| Frame | 56C |
| Frame Size | 5 |
| Frequency | 60 Hz |
| Full Load Current | 14 A |
| Gross Weight | 42.26 lbs |
| Hertz | 60 |
| Horsepower | 1, 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | B |
| Item | Motor,1HP,1725RPM,115/2. |
| Item Number | XS1CA2JCR |
| Kilowatts | 0.8 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | CH63AAW1019015B |
| Manufacturer Part Number | XS1CA2JCR |
| Maximum Ambient Tempera. | 40? C |
| Model Number | CH63AAW1019015B |
| Motor Type | Single Phase |
| Mounting | Face, Footless |
| Mounting Type | C-Face |
| Name Plate RPMs | 1725 |
| NEMA Frame | 56C |
| Net Weight | 42.26 lbs |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overload Protection | Automatic |
| Part Number | XS1CA2JCR |
| Phase | 1 |
| Product Type | Explosion Proof, Capaci. |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| Service Factor | 1.00 |
| Ship Weight | 44 lbs. |
| Speed (RPM) | 1725 |
| Thermal Protection | Automatic |
| Thermal Protection Rati. | Auto |
| Voltage | 115/208-230, 110-120V, . |
| Voltage (AC) | 115 VAC, 208-230 VAC |
| Volts | 115, 208, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G4404707 | 516.0 | 1 | In Stock | | U.S. Motors | 43.96 | 516.0 @ 1 |
 | Global Industrial | WBB467523 | 629.0 | 1 | In Stock | | US Motors | | 629.0 @ 1 |
 | emotorpro.com | XS1CA2JCR | 641.68 | 1 | In Stock | | U.S. Motors | 44.0 | 641.68 @ 1 |
 | motorsandcontrol.com | XS1CA2JCR | 654.23 | 1 | In Stock | | US Motors (Nidec) | 48.36 | 654.23 @ 1 |
 | Galco | XS1CA2JCR-USM | 669.8 | 1 | In Stock | | US Motors | 42.26 | 669.8 @ 1 |
 | National Supply Network | B467523 | 673.29 | 1 | In Stock | | US MOTORS | | 673.29 @ 1 |
| motionindustries.com | 04385534 | 857.3 | 1 | In Stock | | US Motors (Nidec) | | 857.3 @ 1 |
 | Guardian | 00643320 | 1072.01 | 1 | In Stock | | US Motors | | 1072.01 @ 1 |
 | bscsource.com | XS1CA2JCR | 1091.29 | 1 | In Stock | | US Motors | | 1091.29 @ 1 |
