Molex / Waldom 70553-0006

mpn705530006
brandname: Molex
manufacturername: Molex

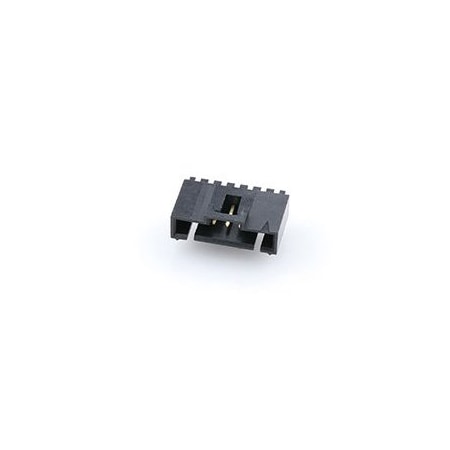

Molex / Waldom 70553-0006 Connector Headers and PCB Receptacles

Brand: Molex / Waldom
PartNumber: 70553-0006
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	70553-0006
Category	Connectors, Interconnec.
Circuits (maximum)	7
Color	Black
Color - Resin	Black
Connector Type	Male Pin
Contact Finish - Mating	15.0?in (0.38?m)
Contact Finish - Post	Phosphor Bronze
Contact Finish Thicknes.	Tin
Contact Finish Thicknes.	Automotive, General Pur.
Contact Length - Mating	0.130"" (3.30mm)
Contact Length - Post	-
Contact Material	Polyester, Glass Filled
Contact Shape	Gold
Contact Type	0.100"" (2.54mm)
Current - Maximum per C.	3.0A
Current Rating	3 A
Current Rating (Amps)	250V
Durability (mating cycl.	50
Duration at Max. Proces.	3
Family Name	SL
Fastening Type	0.240"" (6.10mm)
Features	-40?C ~ 105?C
Flammability	94V-0
Guide to Mating Part	Yes
Ingress Protection	UL94 V-0
Insulation Color	-
Insulation Height	Square
Insulation Material	-
Mated Stacking Heights	74.8?in (1.90?m)
Material - Metal	Brass, Phosphor Bronze
Material - Plating Mati.	Gold
Material - Plating Term.	Tin
Material Flammability R.	Black
Mfr	Molex
Mounting Type	Solder
Number of Circuits	7
Number of Contacts	7
Number of Positions	1
Number of Positions Loa.	Board to Cable/Wire
Number of Rows	1, -
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	0.215"" (5.45mm)
Package	Active
Part Status	Header
PC Tail Length	3.30mm
PCB Thickness - Recomme.	1.60mm
Pitch	2.54 mm (0.100")
Pitch - Mating	7
Pitch - Mating Interface	2.54mm
Plating Material	Gold
Plating min - Mating	0.381?m
Plating min - Terminati.	1.905?m
Polarized to Mating Part	Yes
Primary Type	Board Mount
Process Temperature max.	260
Row Spacing - Mating	All
Series	Tube, 70553 Series
Shrouded	Fully
Shrouding	Through Hole, Right Ang.
Special Features	Not Low-Halogen
Style	Shrouded - 4 Wall
Temperature Range - Ope.	-40? to +105?C
Termination	Latch Holder, Through H.
Termination Interface: .	Through Hole
Type	Right Angle Header
UL	E29179
Voltage - Maximum	250V
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Waldom	MOLEX 70553-0006	1.67	35	17639	MOLEX		1.67 @ 35
Heilind Electronics	70553-0006	2.2752	5	10	MOLEX		2.2752 @ 10
TME	MX-70553-0006	2.53	1	50	MOLEX		2.53 @ 10
Newark	18M8241	2.55	35	10	MOLEX		2.55 @ 25
Digi-Key	WM4905-ND	2.772	1	10	Molex		2.772 @ 10
RS Delivers	670-0848	3.2316	1	740	Molex		3.2316 @ 10
us.rs-online.com	70373272	4.96	5	10	Molex Incorporated		4.96 @ 10
AmazonSC	B005T7BCUQ	11.26	1	10	Molex	0.04	11.26 @ 10
Zoro	G2755021	138.25	1	10	Molex		138.25 @ 10
