Ruland FSMR32-15-8-SS

B016APPH7Y

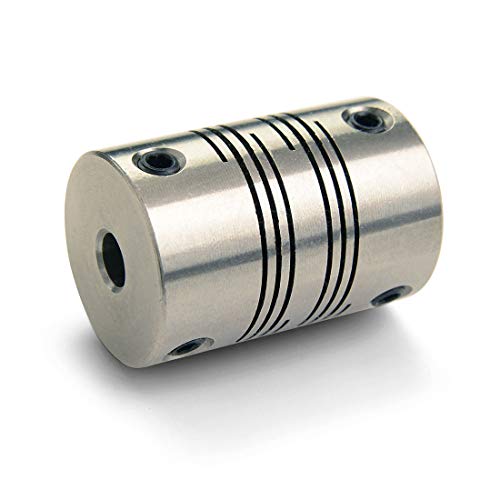

Ruland FSMR32-15-8-SS 303 Stainless Steel Beam Coupling, 6-Beam Set Screw Style, 15 mm x 8 mm Bores, 31.8 mm OD, 44.5 mm Length

Ruland FSMR32-15-8-SS 303 Stainless Steel Beam Coupling, 6-Beam Set Screw Style, 15 mm x 8 mm Bores, 31.8 mm OD, 44.5 mm Lengthzoom

Attributes

Key Value
Angular Misalignment3?
Axial Motion0.25 mm
B1 Max Shaft Penetration21.4 mm
B2 Max Shaft Penetration21.4 mm
Bore (B1)15 mm
Bore Dia.15mm x 8mm
Bore Tolerance+0.025 mm / -0.000 mm
Catalog PageN/A
CategoryHardware, Fasteners, Ac.
Clearance Dia. (In.)1.117 in
Clearance Dia. (mm)28.37
Country of OriginUSA
Country of Origin (subj.United States
Description15MMX8MM STAINLESS BEAM.
Digi-Key Part Number3188-FSMR32-15-8-SS-ND
Dynamic Torque Non-Reve.5.66 Nm
Dynamic Torque Reversing2.83 Nm
FinishBright
Finish SpecificationBright, No Plating
Forged Set ScrewM6
Full Bearing Support Re.Yes
Hex Wrench Size3.0 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Item?30UW24
Length (L)44.5 mm
Length through Bore20.82 mm
Length through Bore (In.0.82
Length through Bore (mm)20.82
ManufacturerRuland Manufacturing
Manufacturer Product Nu.FSMR32-15-8-SS
MaterialStainless Steel
Material - CouplingsStainless Steel
Material SpecificationType 303 Austenitic, No.
Max. Angular Misalignme.3 Degrees, 3 ?
Max. Axial Misalignment.+/-0.01
Max. Bore (mm)15 mm
Max. Parallel Misalignm.0.015 in
Max. RPM6,000 RPM
Max. Temp.350 ?F, 350 Degrees F
Max. Temp. Range (F)350 Degrees
Maximum Speed6,000 RPM
MfrRuland Manufacturing
Mfr. Model?FSMR32-15-8-SS
Min. Bore (mm)8
Moment of Inertia32.426 x10
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
Number of Screws4 ea
Outer Diameter (OD)31.8 mm
Outside Dia.31.8 mm
Outside Dia. (In.)1.25
Outside Dia. (mm)31.8
Overall Length44.5 mm
Overall Length (In.)1.75
Overall Length (mm)44.5
PackageBag
Parallel Misalignment0.38 mm
Product StatusActive
Rated Torque100 in-lb
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM6
Screw Size (mm)M6
Screw TypeSet Screw
Seating Torque7.2 Nm
Series-
Setscrew Location2 (120?), 2 (120 Degree.
Shaft Locking Type - Co.1 Piece Set Screw
SizeFSMR32
Small Bore (B2)8 mm
Specifications1.250" (31.80mm) Outer .
Static Torque11.32 Nm
Style6-Beam Set Screw
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
Torque (In.-Lbs.)100
Torsional Stiffness0.33 Deg/Nm
Torsional Stiffness (De.0.037
TypeBeam Coupling
UNSPC31163003
UNSPSC31163003
UPC634529046609
Weight (lbs)0.461100
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG8436407191.01In Stock10Ruland0.49191.0 @ 1
thumbzoomRulandFSMR32-15-8-SS218.781In StockRuland0.4611218.78 @ 1
motionindustries.com04804929271.821In StockRuland Manufacturing Co Inc271.82 @ 1
thumbzoomDigi-Key13613190288.22110Ruland Manufacturing288.22 @ 1
Grainger30UW24290.881In StockRULAND MANUFACTURING290.88 @ 1
thumbzoomsustainablesupply.comC1645063340.471In StockRuland Manufacturing0.49340.47 @ 1
AmazonTPB016APPH7Y354.391In Stock30Ruland Manufacturing Co., Inc.354.39 @ 1
thumbzoomRaptor SuppliesAF9UUU406.268461In StockRULAND MANUFACTURING406.26846 @ 1
