TE Connectivity

B00KI3CIQI

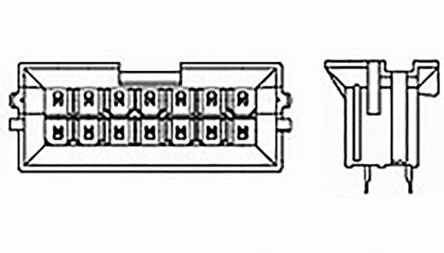

TE Connectivity 1-1586585-2 VAL-U-LOK Series Connector System

TE Connectivity 1-1586585-2 VAL-U-LOK Series Connector Systemzoom

Attributes

Key Value
ApplicationsGeneral Purpose, Indust.
Base Product Number1586585
Body OrientationStraight
BrandTE Connectivity
CategoryConnectors, Interconnec.
Connector SystemWire to Board
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.39.4?in (1.00?m)
Contact Finish Thicknes.39.4?in (1.00?m)
Contact Length - Mating-
Contact Length - Post0.138" (3.50mm)
Contact MaterialBrass, Brass Alloy
Contact PlatingTin
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.China
Current Rating9.0A
Current Rating (Amps)9A
DescriptionCONN HEADER VERT 12POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number1-1586585-2-ND
Fastening TypeLatch Holder
FeaturesBoard Lock
Ingress Protection-
Insulation ColorNatural
Insulation Height0.555" (14.10mm)
Insulation MaterialPolyamide (PA), Nylon
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-1586585-2
Manufacturer Standard L.26 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-2
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number Of Contacts12
Number of Contacts12
Number of Positions12
Number of Positions Loa.All
Number Of Rows2
Number of Rows2
Operating Temperature-40?C ~ 105?C
Overall Contact Length-
PackageTray
Pitch4.2mm, 4.20 mm (0.165")
Pitch - Mating0.165" (4.20mm)
Primary TypeSoft Shell
Product StatusActive
Row Spacing - Mating0.165" (4.20mm)
SeriesVAL-U-LOK Series, VAL-U.
Shrouded/UnshroudedShrouded
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Termination MethodSolder
TypeVertical Header
Voltage Rating600VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com700415800.351770TE Connectivity0.35 @ 385
Onlinecomponents.com1-1586585-20.41811770TE Connectivity / AMP Brand0.3973 @ 440
WaldomTE CONNECTIVITY AMP BRAND 1-1586585-20.46220770TE CONNECTIVITY/AMP BRAND0.46 @ 385
Verical1-1586585-20.4966385TE Connectivity / AMP0.49 @ 385
thumbzoomRS Delivers865-36930.7128110385TE Connectivity0.7128 @ 385
thumbzoomZoroG4009390060.75385385Te Connectivity0.75 @ 385
thumbzoomDigi-Key18335830.763168831169220770TE Connectivity AMP Connectors0.763168831169 @ 385
Newark95Y48271.011770AMP - TE CONNECTIVITY1.01 @ 385
AmazonTPB00DEFI4VK274.8613855T-E Connectivity274.86 @ 385
