Acme Electric T3075K0023B

B0747LZFWR

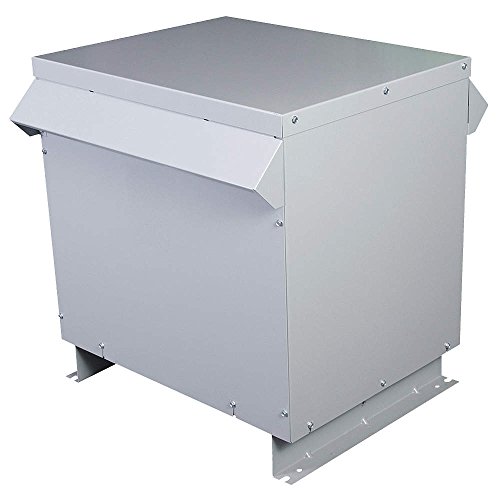

Acme Electric T3075K0023B Low Voltage Distribution Transformer, Three Phase, 480D Primary Volts - 240D/120 Secondary Volts, 75 kVA

Acme Electric T3075K0023B Low Voltage Distribution Transformer, Three Phase, 480D Primary Volts - 240D/120 Secondary Volts, 75 kVAzoom

Attributes

Key Value
ApplicationDry Type Distribution T.
ApprovalsCSA, UL
BrandAcme Electric
Catalog NumberT3075K0023B
ColorASA 61 Gray, Grey
Connection typeLug Terminal, Terminal .
Country of OriginMexico
Country of Origin (subj.Mexico
Current Stock2
Depth22.37 in
Dimensions22.37 in L x 28.15 in W.
Efficiency98.6
EnclosedYes
EnclosureNEMA 3R
Enclosure MaterialSteel
Enclosure RatingNEMA 3R
Enclosure TypeIndoor/Outdoor, NEMA 3R
Family SeriesAcme Electric Transform.
Frequency Rating60, 60 Hz
Gross Weight600 lbs
Height29.41 in, 29.41
Height UOMInch
Housing materialSteel
Hz60
Hz - Electrical60 Hz
IncludesWeathershield
Input Voltage480VAC
Input Voltage - Transfo.480V AC Delta
International ShippingNo
ItemThree Phase Transformer
Item - TransformerThree Phase Transformer
Item NumberT3075K0023B
Item TypeIsolation transformer
Knockout Size - Transfo.No Knockout
Length22.37
Length UOMInch
Made in USANo
ManufacturerAcme Electric, Acme Ele.
Manufacturer Part NumberT3075K0023B
MountingFloor
Mounting - TransformerFloor
Mounting - TransformerFloor
Mounting typeFloor
MpnT3075K0023B
Net Weight0 lbs
Number of Taps(2) 2.5% ANFC/(4) 2.5% .
Outdoor Rated - Transfo.Yes
Output Voltage240VAC Delta/120VAC Cen.
Output Voltage - Transf.120V AC Center Tap, 240.
Phase3
Phase - Electrical3
Power Rating75, 75 kVA
Primary TypeIndustrial Transformer
Primary Voltage480D V, 480 V, 480 Delt.
Promotion RestrictionNot eligible for promot.
Secondary Voltage120 VAC/240 Delta VAC, .
SeriesToroids Series
SKUZO-G6127670
Special FeaturesMeet DOE 2016 efficienc.
StandardUL 1561, UL File Number.
StandardsC22.2 No. 47, File E125.
SubCategoryElectrical
Temp. Rise150 Degrees C
Temperature Rating150 Degrees C
Temperature Rating (Deg.150
TypeIsolation Ventilated, V.
UPC047503093160
VA Rating75kVA, 75,000 VA
VA Rating - Transformer75 kVA
Voltage Function - Tra.Step Down
Width28.15, 28.15 in
Width UOMInch
Winding Material - Tran.Aluminum

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com9087623270.271In StockAcme Electric3270.27 @ 1
thumbzoomstandardelectricsupply.com23417053766.41In StockAcme Electric3766.4 @ 1
thumbzoomZoroG61276703963.0110Acme Electric554.03963.0 @ 1
Newark08AC12394070.451In StockACME ELECTRIC4070.45 @ 1
thumbzoomGalcoT3075K0023B-ACME4204.361In StockAcme Electric600.04204.36 @ 1
Grainger49NT344869.0130ACME ELECTRIC4869.0 @ 1
thumbzoomsimsupply.comZO-G61276705069.4912Acme Electric5069.49 @ 1
us.rs-online.com714842215628.1711Acme Electric Corporation5628.17 @ 1
thumbzoomcrescentelectric.com4743738135.671In StockAcme Electric8135.67 @ 1
