- mpnAL6M-M14P-G
- brandname: IDEC
- manufacturername: IDEC

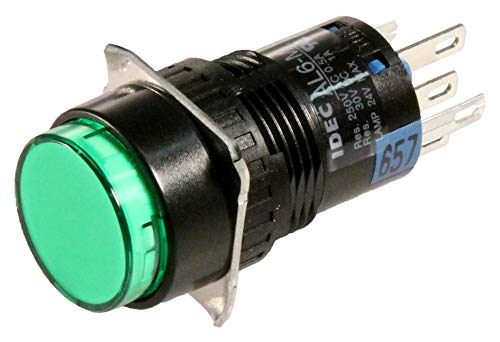

IDEC - AL6M-M14P-G - Pushbutton Switch, A6 Series, SPDT Industrial 16 mm Momentary Round-6pack
- Brand: IDEC
- PartNumber: 4004103382
- Manufacturer: Idec
- Label: Idec
Attributes
| Key | Value |
|---|
| Actuator Type | Round |
| AMP Rating | 3 |
| Approvals | CE, CSA, UR |
| Bezel | Plastic Round |
| Body Style | Round |
| Certification Listings | ULR;CSA;CE |
| Color | Green |
| Comments | Fixed contacts. LED inc. |
| Contact Form | SPDT |
| Contact Type | SPDT |
| Contacts | SPDT |
| Current (A) | 3 A |
| Current Rating | 1 A |
| Depth Behind Panel | 1.22 " |
| Dielectric Strength | 2000 VAC |
| Family Series | IDEC Switches, A6 Series |
| Full Shroud | No |
| Gross Weight | 0.0975 lbs |
| Illumination Circuit | Full Voltage |
| IP Rating | IP65 |
| Item Number | AL6M-M14P-G |
| Lamp Type | LED |
| LED Lamp Ratings | 24 V (AC 9mA, DC 8mA) |
| Lens/Button Color | Green |
| Lens/Button Shape | Round Extended |
| Light Source | LED |
| Manufacturer | IDEC |
| Manufacturer Part Number | AL6M-M14P-G |
| Max Voltage | 250 VAC, 250 VDC |
| Mounting Hole Size | 44689 in |
| Mounting Size (mm) | 16 |
| Mounting Type | Panel Mount |
| Net Weight | 0.0975 lbs |
| Nominal Lamp Voltage | 24 VAC, 24 VDC |
| Nominal Mounting Size | 16 mm |
| Number of Poles | 1 |
| Operating Temperature | -25 to +55 ?C |
| Operation | Momentary |
| Operator Size (mm) | 18, 18 mm |
| Product Series | A6 |
| Series | A6 Series, A6 |
| Shape | Round Extended |
| Special Features | Illuminated, Oiltight |
| Standards | UL CSA CE |
| Terminal Type | Quick Connect |
| Termination | QC Tabs |
| Type | Push Button, Illuminate. |
| Voltage | 250 VAC;250 VDC |
| Voltage Rating | 120 V |
