Ruland SCX-18-18-F

B0060LYQA8

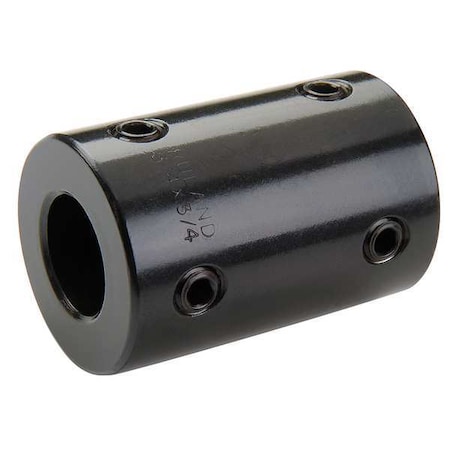

Ruland SCX-18-18-F Set Screw Rigid Coupling, Black Oxide Steel, 1-1/8" Bore A Diameter, 1-1/8" Bore B Diameter, 1-7/8" OD, 3-1/8" Length

Ruland SCX-18-18-F Set Screw Rigid Coupling, Black Oxide Steel, 1-1/8" Bore A Diameter, 1-1/8" Bore B Diameter, 1-7/8" OD, 3-1/8" Lengthzoom

Attributes

Key Value
ApplicationZero Backlash Coupling .
B1 Max Shaft Penetration1.562 in
B2 Max Shaft Penetration1.562 in
Bore (B1)1.1250 in
Bore Dia.1 1/8 in
Bore Tolerance+0.0020 in / +0.0005 in
CategoryHardware, Fasteners, Ac.
Country of OriginUSA
Country of Origin (subj.United States
DesignPrecision Honed Bores O.
Finishblack oxide
Finish SpecificationHot Process Black Oxide.
Forged Set Screw3/8-16
Full Bearing Support Re.No
Hex Wrench Size3/16 in
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Length (L)3 1/8 in
Machined FromBar Stock
ManufacturerRuland Manufacturing
Material1215 Lead Free Steel
Material - Couplings1215 Lead Free Steel
Material Specification1215 Carbon Steel Bar
Max. RPM4,000 RPM
Maximum Speed4,000 RPM
MfrRuland Manufacturing
Moment of Inertia0.9221 lb-in
Note 1Performance ratings are.
Number of Screws4 ea
Outer Diameter (OD)1 7/8 in
Outside Dia.1 7/8 in
Overall Length3 1/8 in
PackageBag
Precision Honed Bores?Yes
Product StatusActive
ProvidesHigh Torque with No Mis.
Rated TorqueRating Coming Soon
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw Finishblack oxide
Screw MaterialAlloy Steel
Screw Size3/8"-16
Screw Size (In.)3/8-16
Seating Torque290 lb-in
Series-
Shaft Locking Type - Co.1 Piece Set Screw
Small Bore (B2)1.1250 in
Specifications1.875" (47.63mm) Outer .
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeRigid Coupling, Set Scr.
UNSPC31163009
UPC634529076316
Weight (lbs)1.537800
With Keyway / Without K.Without Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG833104143.01In Stock10Ruland1.643.0 @ 1
thumbzoomcbtcompany.comSCX-18-18-F49.641In StockRULAND MANUFACTURING49.64 @ 1
thumbzoomRulandSCX-18-18-F56.961In StockRuland1.537856.96 @ 1
Grainger30VJ9557.11In Stock15RULAND MANUFACTURING57.1 @ 1
thumbzoomsustainablesupply.comC164591169.351In StockRuland Manufacturing1.669.35 @ 1
motionindustries.com0480624980.111In StockRuland Manufacturing Co Inc80.11 @ 1
Digi-Key1359577493.41In StockRuland Manufacturing93.4 @ 1
thumbzoomRaptor SuppliesAF9WYW102.2375251In StockRULAND MANUFACTURING102.237525 @ 1
