MEAN WELL RSD-300F-12

mpnRSD-300F-12
brandname: MEAN WELL
manufacturername: MEAN WELL

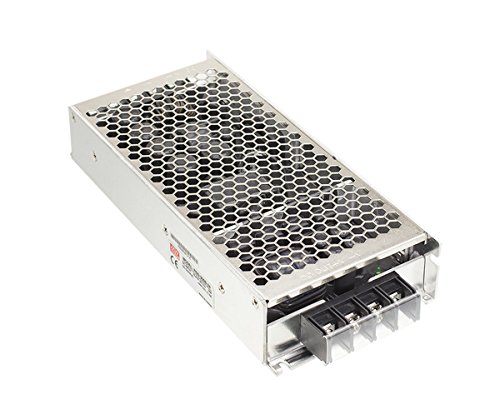

MEAN WELL MW RSD-300F-12 12V 22.5A Enclosed Single Output DC-DC Converter

Brand: MEAN WELL
PartNumber: RSD-300F-12
Model: RSD-300F-12
PackageQuantity: 1
Binding: Electronics
Manufacturer: MEAN WELL
Label: MEAN WELL

Attributes

Key	Value
Applications	ITE (Commercial), Railw.
Approval Agency	CE
Base Product Number	RSD-300
Category	Power Supplies - Extern.
Current - Output (Max)	25A
DC Current (Typ.)	3.25A / 72V
Dimension	216 x 97 x 40mm (LxWxH)
Dimensions	216 x 97 x 40mm (L x W .
Efficiency	91%
Efficiency (Typ.)	89%
EMC Emission	Compliance to EN55022 (.
EMC Immunity	Compliance to EN61000-4.
Hold up Time	F-Type complies with S2.
Industry Aliases	new
Inrush Current (Typ.)	45A / 72VDC
Isolation Resistance	I/P - O/P, I/P-FG, O/P-.
Line Regulation	?0.5%
Load Regulation	?1.0%
Mfr	MEAN WELL USA Inc.
Mounting Type	Chassis Mount
MTBF	130.7Khrs min. MIL-HDBK.
Number of Outputs	1
Operating Temperature	-40?C ~ 70?C (With Dera.
Output Voltage	12V
Over Temperature	F - type : 110?C ?5?C (.
Over Voltage	5.75 ~ 7V
Overload	105 ~ 135%
Package	Box
Package Quantity	1
Packing	1.19Kg; 12pcs / 15.3Kg .
Power (Watts)	300W
Product Status	Active
Railway Standard	Meet EN50155 / IEC60571.
Safety Standards	Meet IEC60950-1 (LVD)
Series	RSD-300 (300W)
Setup, Rise Time	800ms, 50ms at full load
Size / Dimension	8.50" L x 3.80" W x 1.5.
Storage Temp., Humidity	-40 ~ +85?C, 5 ~ 95% RH
Temp. Coefficient	?0.03%/?C (0 ~ 50?C)
Type	Enclosed
Vibration	10 ~ 500Hz, 5G 10min. /.
Voltage - Input (Max)	93.6V
Voltage - Input (Min)	50.4V
Voltage - Isolation	4 kV
Voltage - Output 1	12V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Voltage Range 1 sec.	43.2 ~ 100.8 VDC
Voltage Range Continuous	50.4 ~ 93.6 VDC
Voltage Tolerance	?2.0%
Wattage	300
Withstand Voltage	I/P - O/P : 4KVAC I/P-F.
Working Humidity	5 ~ 95% RH non-condensi.
Working Temp.	-40 ~ +55?C (no deratin.

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Waldom	MEAN WELL RSD-300F-12	85.4	1	2	MEAN WELL		85.4 @ 1
peaktopeakpower.com	RSD-300F-12	103.0	1	In Stock	Mean Well		103.0 @ 1
Zoro	G705826735	127.99	1	In Stock	Mean Well		127.99 @ 1
AmazonSC	B07197YJX9	143.13	1	In Stock	MEAN WELL	0.000625	143.13 @ 1
electricautomationnetwork.com	RSD-300F-12	147.59	1	In Stock	MEANWELL		147.59 @ 1
Newark	44AC7369	148.27	1	In Stock	MEAN WELL		148.27 @ 1
Jameco	2276007	157.2	1	In Stock	MEAN WELL		157.2 @ 1
Digi-Key	7706254	161.359375	12	In Stock	MEAN WELL USA Inc.		161.359375 @ 12
