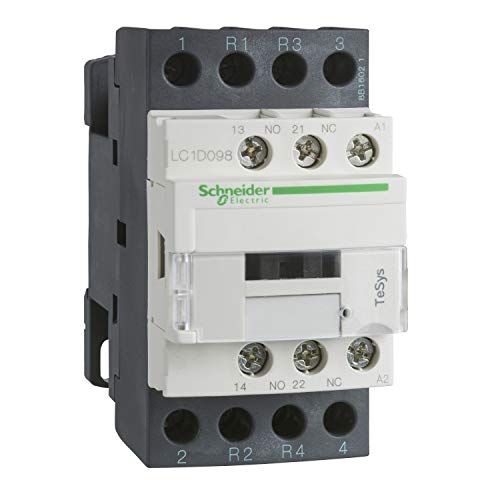

LC1D098B7 NEW SCHNEIDER AC Contactor LC1-D098B7 4P 20A 24V AC Coil

LC1D098B7 NEW SCHNEIDER AC Contactor LC1-D098B7 4P 20A 24V AC Coilzoom

Attributes

Key Value
[Ith] Conventional Free.20 A 60 ?C power circui.
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-60-80 ?C
ApplicationResistive Load
ApprovalsCCC, CSA, UL
Auxiliary Contact1 NO ; 1 NC
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts1NO, 1NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 25 A 50 .
BrandSCHNEIDER ELECTRIC
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC1D098B7
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1501004
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating7.5-7.5 VA 60 HZ 0.3 20.
Coil Technologywithout built-in suppre.
Coil Voltage24 VAC, 24, 24 VAC, 24 .
Compatibility CodeLC1D
ConditionNew
ConnectionPower circuit screw cla.
Contact CompatibilityM6
Contact Configuration2 NO, 2 NC, 2NO-2NC, 1 .
Contact Current Rating20 A
Contact Rating25 A 60 A Degrees C POW.
Contactor ApplicationResistive Load
Contactor seriesTeSys D
Contacts configurationNC x2 + NO x2
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.3...0.6 Uc -40-60 ?C .
Control voltage24V AC
Control Voltage24 V
Country of OriginIndonesia
Depth92 mm, 0.079 in
Device Short NameLC1D
Dimensions85 mm H x 45 mm W x 92 .
Enclosure TypeOpen, IP2x
Environmental DisclosureENVPEP1501004
Eu Rohs DirectiveCompliant
Family SeriesSquare D Contactors, Te.
Fire Resistance850 ?C IEC 60695-2-1
Frequency Rating50/60, 50/60 Hz
General Purpose (AC1)20 A
Gross Weight0 lbs
Height85 mm, 85mm
Hold-In Power Consumpti.7.5-7.5 VA 60 Hz 0.3 20.
Inrush Power In Va70-70 VA 60 Hz 0.75 20 .
Insulation Resistance> 10 MOhm signalling ci.
Integrated auxiliary co.NC + NO
Irms Rated Making Capac.250 A 440 V power circu.
Item NumberLC1D098B7
Item TypeContactor
Leadsscrew terminals
Length3.346 in
Made in USANo
ManufacturerSquare D, SCHNEIDER ELE.
Manufacturer Part NumberLC1D098B7
Max. operating current9A
Maximum Operating Rate3600 cyc/h 60 ?C
Maximum Operating Tempe.60 C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Operating Tempe.-5 C
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
MountingDIN,, Rail Plate
Mounting Supportplate || rail
Mounting typePlate/Rail
Mounting TypeDIN Rail Mount ; Panel .
Net Weight0.365 kg, 0.8 lbs
Nominal Coil Voltage24 VAC
Non-Overlap Time1.5 ms on de-energisati.
Number of Auxiliary Con.1NO-1NC
Number of Poles4
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 Hz, 3600, 3600.
Operating Temperature-5 to 60, -5 to 60 deg .
Overvoltage CategoryIII
Pole Contact Composition2 NO + 2 NC
Poles2NO, 2NC
Poles Description4P
Power Dissipation Per P.1.56 W AC-1
Primary TypeContactor
Product CertificationsUL || CCC || CSA || UKC.
Product Or Component Ty.Contactor
Product SeriesTeSys
Protective Coverwith
Pvc FreeYes
RangeTeSys || TeSys Deca
Range Of ProductTeSys D || TeSys Deca
Rated Breaking Capacity250 A 440 V power circu.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys? D LC1D, TeSys De.
Size45 MM,85 MM,92 MM, 85 H.
Special FeaturesResistive Load, without.
StandardUL;CCC;CSA;UKCA;EAC;CB;.
StandardsCSA C22.2 No. 14 ; EN 6.
Sub BrandTeSys D;TeSys Deca
Sustainable Offer StatusGreen Premium product
Switching capacity4kW
Temperature Operating R.-5 to 60 C
Terminal TypeScrew Clamp, Screw/Clam.
TerminationScrew
Tightening Torquepower circuit 1.7 N.m s.
Toxic Heavy Metal FreeYes
TypeNon-Reversing, IEC Cont.
Type of contactor4-pole
UPC785901503200
UPC Code785901503200
Utilisation CategoryAC-1
Voltage Rating690 ; 300 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage1.56 W AC-1
WeeeThe product must be dis.
Weight2.000000
Width0 in, 45mm, 45 mm
