- mpnYA6CL2TC38
- brandname: Burndy
- manufacturername: Burndy

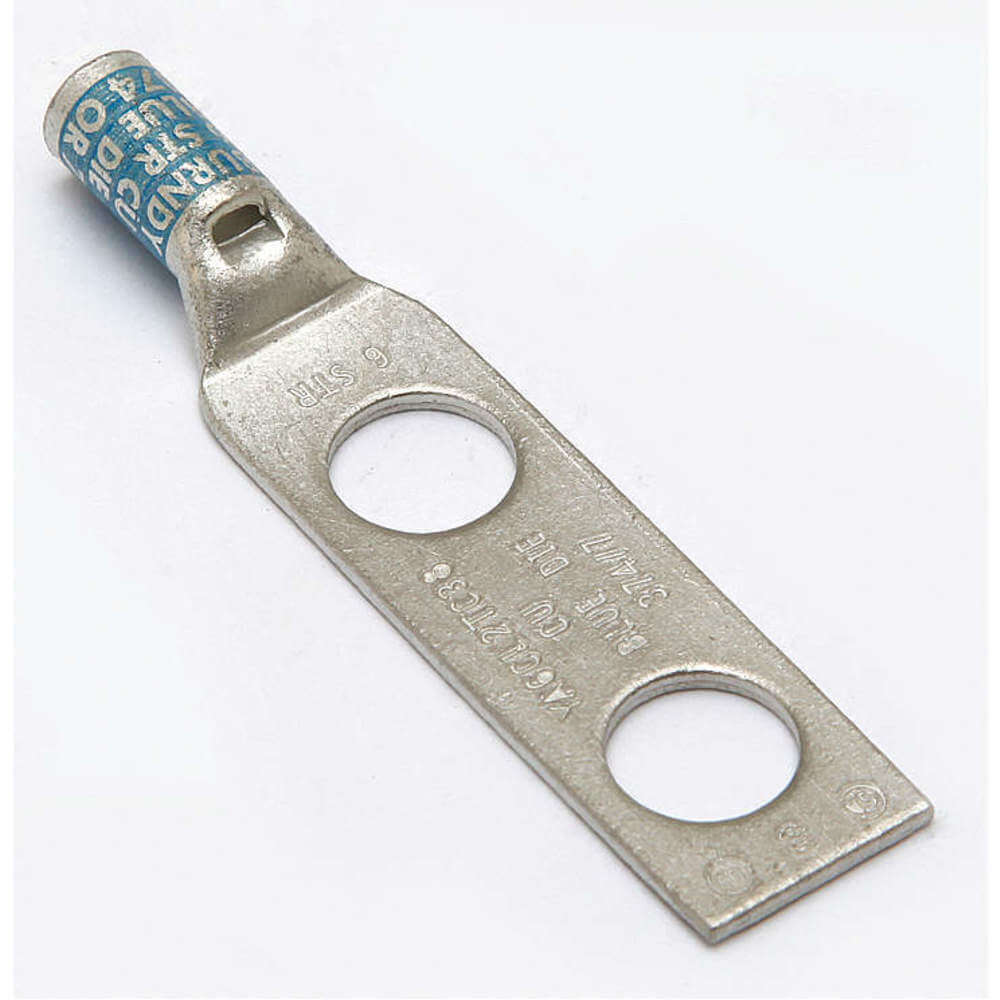

Burndy YA6CL-2TC38 Two Hole Hylug Code Conductor Standard Barrel Copper Compression Terminal, 6 AWG Conductor, 3/8" Stud Hole Size, 1" Stud Hole Spacing, 0.63" Tongue Width, 2.63" Length
- Brand: Burndy
- PartNumber: YA6CL-2TC38
- Model: YA6CL-2TC38
- Color: Blue
- Size: 6 AWG
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Burndy
- Label: Burndy
Attributes
| Key | Value |
|---|
| Application | For Aluminum & Copper C. |
| Approvals | CSA, UL |
| Barrel Length | Short |
| Barrel Outside Diameter | 0.29 in |
| Barrel Size | Standard |
| Barrel Style | Chamfered, Skived |
| Brand | Burndy |
| Cable Size | 6 AWG |
| Catalog Number | YA6CL2TC38 |
| Color | Blue |
| Color Code | Blue |
| Color Family | Blue |
| Colour Code | Blue |
| Conductor - Copper Soli. | 6 AWG |
| Conductor - Copper Str . | 6 AWG |
| Conductor - Copper Str . | 6 AWG |
| Conductor - Material | Copper |
| Conductor Size | 6 AWG |
| Connector Type | Terminal, Straight Barr. |
| Contact Finish | Tin |
| Country of Origin | United States, US - Uni. |
| Die Code | 374, 7 |
| Die Color | Blue |
| Die Index | 7;374 |
| Dimension - B Length fr. | 9/16 in |
| Dimension - B Length in. | 0.54 in |
| Dimension - Bolt Hole S. | 0.39 in |
| Dimension - Bolt Size f. | 2023-03-08 |
| Dimension - Bolt Size i. | 0.38 |
| Dimension - Hole Size f. | 2023-03-08 |
| Dimension - Hole Size i. | 0.39 in |
| Dimension - Hole Size mm | 10 mm |
| Dimension - L Length Ov. | 67 mm |
| Dimension - Length Over. | 2.63 in |
| Dimension - N inch | 0.41 in |
| Dimension - Outside Dia. | 0.29 in |
| Dimension - Pad Width i. | 0.58 in |
| Dimension - Strip Lengt. | 5/8 in |
| Dimension - Stud Size f. | 2023-03-08 |
| Dimension - Stud Size i. | 3/8 in |
| Dimension - Z inch | 0.42 in |
| ECCN | EAR99 |
| Family Series | Burndy Terminals, YA Se. |
| Feature - Barrel Type | Short |
| Finish | Tin-Plated |
| For Conductor Material | Copper |
| For Stranded Copper Wir. | 6 AWG |
| For Stranded Copper Wir. | 6 AWG |
| For Stud Size | 3/8 in |
| For Wire Size | 6 AWG |
| For Wire Type | Stranded |
| Gross Weight | 0.03 lbs |
| Hole Center to Center | 1 in |
| Hole Center to End | 0.41 in |
| Hole Size | 0.39 in |
| Inspection Hole | Yes |
| Insulated | Non-Insulated |
| Item | Two-Hole Lug Compressio. |
| Item Number | YA6CL2TC38 |
| Item Type | Standard Barrel, Tin Pl. |
| Length | 2.63" |
| Length (Straight Wirewa. | 2.63 in |
| Lug Compression Connect. | Two-Hole Lug Compressio. |
| Lug Wire Size | 6 AWG |
| Made in USA | Yes |
| Manufacturer | Burndy, Burndy, a Hubbe. |
| Manufacturer Part Number | YA6CL2TC38 |
| Material | Copper |
| Maximum Operating Tempe. | 194 Degrees F |
| Maximum Voltage | 35 kVAC, 35 kV AC |
| Net Weight | 0.025 lbs |
| Number of Holes | 2 |
| Overall Length | 2.63 in |
| Overall Width | 0.58 in |
| Peep Hole | Yes |
| Physical Attribute - Nu. | 2 |
| Physical Attribute - To. | Straight |
| Physical Attribute - To. | Short |
| Plate Material | Electro Tin |
| Plated | Y |
| Plating Material | Tin |
| Plating Type | Tin - Electro Plated |
| Product Series | YA |
| RoHS Compliant | Yes |
| Special Features | Features: UL Listed 90 . |
| Standard | UL 486A-486B |
| Standards | CSA Certified, UL 486A-. |
| Strip Length | 5/8 in |
| Stud Hole Spacing | 1 in. |
| Stud Size | 3/8 in, 3/8 in., 3/8 " |
| Stud Spacing | 1 |
| Sub Brand | HYLUG |
| Terminal Material | Copper |
| Terminal Type | Ring |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 0.83 in |
| Tongue Style | Standard |
| Tongue Thickness | 0.06 in |
| Tongue Width | 0.63 ", 0.58 in |
| Tongue Width Ranges | 0.51 - 0.75 inches |
| Trade Name | HYLUG? |
| Type | Standard Barrel, Tin Pl. |
| UNSPSC | 39121405 |
| UPC | 781810018354 |
| UPC Code | 781810018354 |
| Use With | Copper |
| Voltage Rating | 35 |
| Width | 0.58" |
| Wire Size | 6 AWG |
| Wire Size (AWG) | 6 AWG |
| Wire Size Range | 6 AWG - 6 AWG |
| Wire Strip Length | 0.937 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | YA6CL2TC38-BURN | 4.25 | 1 | 5 | | Burndy | 0.03 | 4.25 @ 5 |
 | Specialized Products | 109X396 | 4.58 | 1 | 5 | | Burndy | | 4.58 @ 5 |
| amerisponse.com | 761886 | 4.7 | 1 | 5 | | BURNDY / Hubbell | | 4.7 @ 5 |
| Graybar | 89089233 | 5.2416 | 1 | 5 | | Burndy | | 5.2416 @ 5 |
 | Zoro | G4649522 | 6.75 | 1 | 419 | | Burndy | 0.01 | 6.75 @ 5 |
| grainger.ca | WWG22C319 | 7.73709196 | 1 | 5 | | BURNDY | 0.005 | 7.73709196 @ 5 |
 | Megadepot | YA6CL2TC38 | 8.73 | 1 | 5 | | Burndy | | 8.73 @ 5 |
| steinerelectric.com | 85512 | 8.81 | 1 | 5 | | BURNDY | | 8.81 @ 5 |
 | usmegastore.com | YA6CL2TC38 | 9.22 | 1 | 5 | | Burndy | | 9.22 @ 5 |
| us.rs-online.com | 71495642 | 9.88 | 1 | 14 | | BURNDY | | 9.88 @ 5 |
 | crescentelectric.com | 138598 | 12.79 | 1 | 5 | | BURNDY | | 12.79 @ 5 |
 | Raptor Supplies | AB6RJG | 14.950143 | 1 | 5 | | BURNDY | | 14.950143 @ 5 |
