B00MEIDVE8

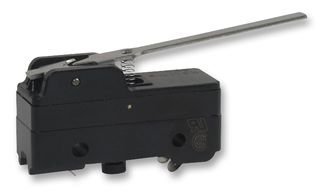

HONEYWELL BZ-2RW84-A2 SWITCH,

HONEYWELL BZ-2RW84-A2 SWITCH,zoom

Attributes

Key Value
AC Contact Rating - Sna.15 A @ 480 V, 15 A @ 48.
AC contacts rating @R15A / 480V AC
Actuator Length2.50"
Actuator TypeLever, Lever, Straight
Actuator Type - Snap Ac.Hinge, Lever
Base Product NumberBZ-2
Basic Actuator Type - S.Lever
Body dimensions49.3x17.5x24.1mm
BrandHoneywell Micro Switch
Casing MaterialHigh Grade Phenolic
CategorySwitches
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Contact MaterialFine Silver
Contacts configurationSPDT
Current Rating15 A
Current Rating (Amps)15A (AC), 500mA (DC)
Current Stock397
DC Contact Rating - Sna.15 A @ 240 V, 15 A @ 24.
Depth0.069"
Depth - Snap Action Swi.0.07 in, 0.7 in
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Chassis Mou.
Differential Travel0.007 to 0.050 in, 0.05.
Digi-Key Part Number480-2442-ND
Electrical Connection -.Screw
Electrical Life-
Electrical life100000 cycles
Family NameMICRO SWITCH B Series P.
Features-
Head TypeLever
Height0.95"
Height - Snap Action Sw.0.95 in
Housing MaterialPhenolic
Ingress Protection-
International ShippingNo
IP ratingIP40
ItemIndustrial Snap Action .
Lead TimeExpected to ship in 1-2.
Length1.94"
Lever Actuator Length -.2.50 in, 2.5 in
ManufacturerHONEYWELL, Honeywell Se.
Manufacturer Product Nu.BZ-2RW84-A2
Manufacturer seriesBZ
Manufacturer Standard L.38 Weeks
Max. contact resistance:15m?
Max. Pretravel0.328 in
Mechanical durability20000000 cycles
Mechanical Life20,000,000 Cycles
MfrHoneywell Sensing and P.
Min. insulation resista.100G?
Mounting Dimension1.00" Centers
Mounting Dimension - Sn.1.00 in Centers
Mounting Hole Size0.14 in
Mounting TypeChassis Mount, Surface .
MpnBZ-2RW84-A2
Number of Circuits - Sn.1
Number of positions2
Operating Force1.00 Oz., 1 oz, 28gf, 1N
Operating Position0.750" (19.1mm)
Operating Temp. Range-67 Degrees to 185 Deg.
Operating temperature-55...85?C
Operating Temperature-55?C ~ 85?C
Over Travel0.219 in
Overtravel0.219" (5.6mm)
PackageBulk
Pretravel0.328" (8.3mm)
Product StatusActive
Release Force3.500gf, 0.123 oz
SeriesBZ/BA/BM/BE/6AS Series,.
SKUZO-G1053035
Snap Action Switch TypeIndustrial Snap Action .
Stable positions number1
StandardsUL Recognized, UL, CE, .
SubCategoryElectrical
Switch FunctionOn-Mom
Switches featureswith lever
Terminal TypeScrew
TerminationScrew
Termination StyleScrew Terminal
TypeBasic
Type of ActuatorStraight Lever
Type of switchmicroswitch SNAP ACTION
Voltage Rating125/250/480VAC, 125 V
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Watertight - Snap Actio.No
Width - Snap Action Swi.1.94 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comBZ-2RW84-A211.712594Honeywell11.71 @ 2
thumbzoomCarlton Bates Company7845491737013.981468HONEYWELL13.98 @ 1
LCOMP7845491737013.981116Honeywell13.98 @ 1
thumbzoomsustainablesupply.comC121014015.911In StockHoneywell0.115.91 @ 1
grainger.caWWG6DXD417.470150421In StockHONEYWELL MICRO SWITCH0.117.47015042 @ 1
thumbzoomNewark23F414922.16130HONEYWELL22.16 @ 1

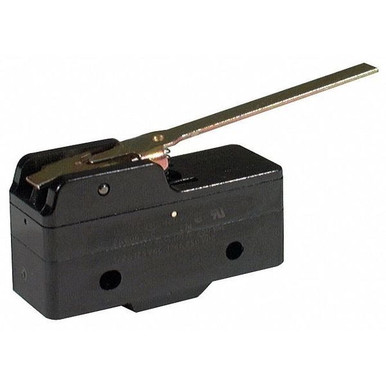

thumbzoomZoroG105303522.291674Honeywell Micro Switch0.122.29 @ 1
RS Delivers691-721622.836133Honeywell22.836 @ 1
alliedcontrols.comBZ-2RW84-A226.51In StockHoneywell26.5 @ 1
us.rs-online.com7011913028.411369Honeywell28.41 @ 1
thumbzoomDigi-Key124859329.021310Honeywell Sensing and Productivity Solutions29.02 @ 1
thumbzoomsimsupply.comZO-G105303532.471397Honeywell Micro Switch32.47 @ 1
thumbzoomRaptor SuppliesAE8LNF38.31393151In StockHONEYWELL38.3139315 @ 1

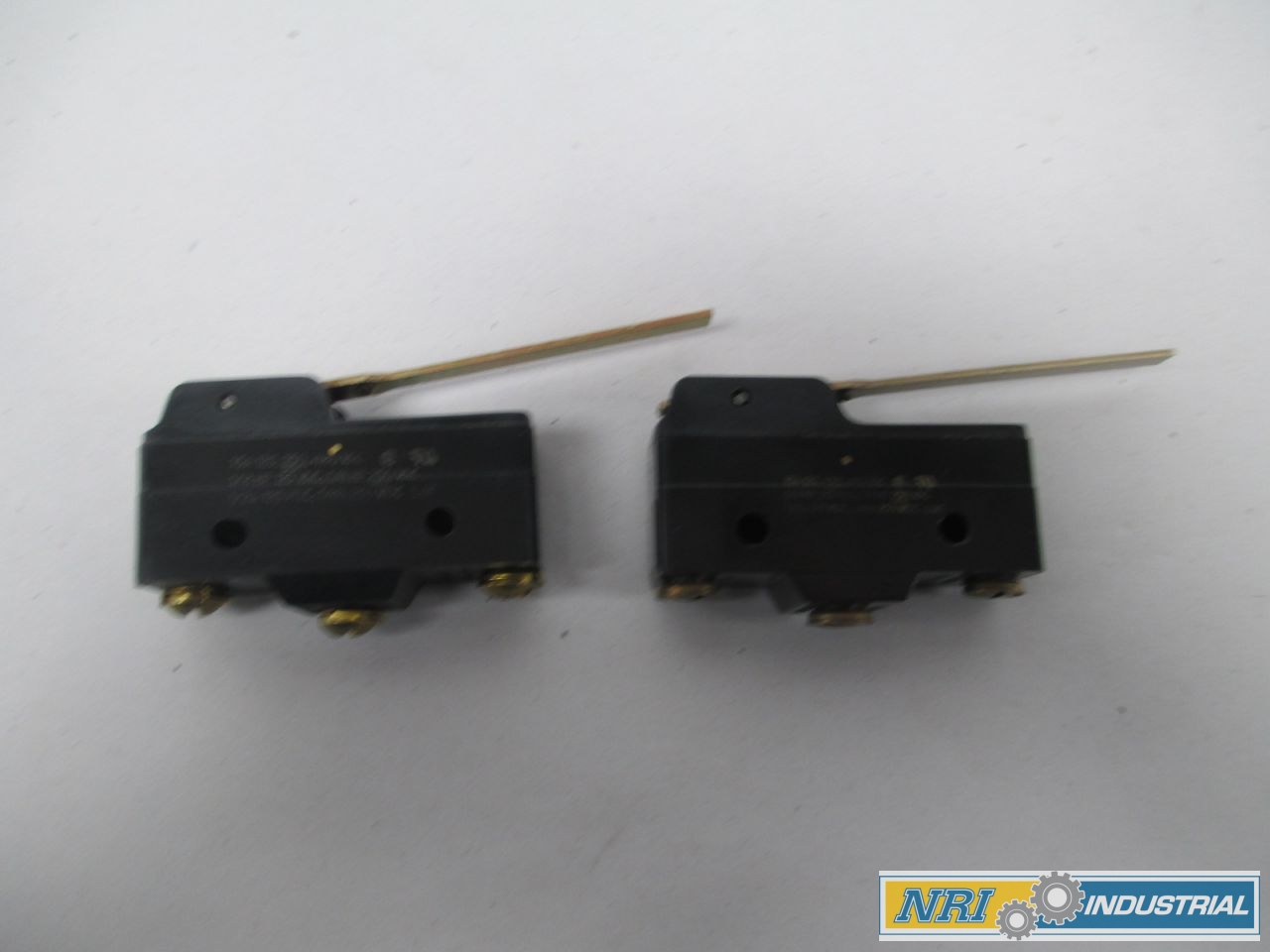

thumbzoomNRI IndustrialD30523340.771In StockHONEYWELL40.77 @ 1
thumbzoomTMEBZ-2RW84-A2454.84100In StockHONEYWELL454.84 @ 100
standardelectricsupply.com267853574.01In StockHoneywell3574.0 @ 1
thumbzoomkempstoncontrols.co.ukBZ-2RW84-A24543.14511In StockHoneywell4543.1451 @ 1
