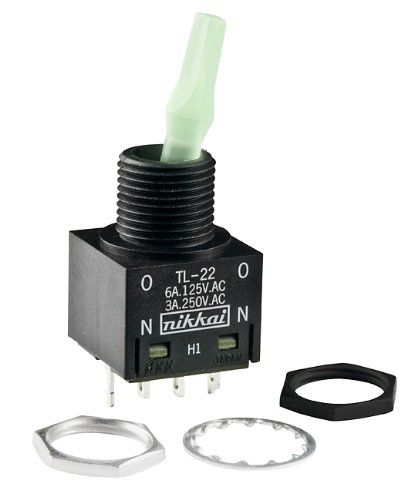

NKK Switches TL22DFAW015F STD SIZE TOGGLE/ILLUMINATED/PANEL MOUNT

mpnTL22DFAW015F
brandname: NKK Switches
manufacturername: NKK Switches

NKK Switches TL22DFAW015F STD SIZE TOGGLE/ILLUMINATED/PANEL MOUNT

NKK Switches TL22DFAW015F STD SIZE TOGGLE/ILLUMINATED/PANEL MOUNT

zoom

Manufacturer: NKK Switches
Label: NKK Switches

Attributes

Key	Value
AC contacts rating @R	6A / 125V AC
Actuator	Paddle
Actuator material	polycarbonate
Alternate Part No.	633-TL22DFAW015F
Backlight colour	green
Body colour	black
Body dimensions	18x18x25.6mm
Brand	NKK SWITCHES
Bushing Size	M12
Contact Form	DPDT
Contact material	silver alloy
Contact Plating	Silver
Contacts configuration	DPDT
DC contacts rating @R	6A / 12V DC
Electrical life	25000 cycles
Illumination	LED, Illuminated
Illumination Colour	green
Kind of toggle	flat
Knob height	17.5mm
Leads	for soldering
Lever colour	green
Manufacturer	NKK SWITCHES
Manufacturer Part No.	TL22DFAW015F
Manufacturer series	TL
Max. contact resistance:	10m?
Min. insulation resista.	1G?
Mounting	panel
Mounting hole diameter	?12.5mm
Mounting Style	Through Hole
Number of positions	2
Operating temperature	-10...55?C
Part # Aliases	TL-22H1DKMMS1
Product Category	Illuminated Toggle Swit.
Series	TL
Stable positions number	2
Switch Function	ON - ON
Switching method	ON-ON
Terminal Seal	Sealed
Termination Style	Solder Lug
Type	Fully illuminated toggl.
Type of switch	toggle
Voltage Rating AC	125 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TME	TL22DFAW015F	10.81	1	In Stock		NKK SWITCHES		10.81 @ 1
	Digi-Key	1007019	15.03	1	In Stock		nkk-switches		15.03 @ 1
	Future Electronics	5535216	15.552	50	In Stock		NKK Switches		15.552 @ 50
	swatee.com	TL22DFAW015F	20.96	1	7		NKK Switches		20.96 @ 1
