Schneider Electric NSYCRN86200

B00CON9WF0

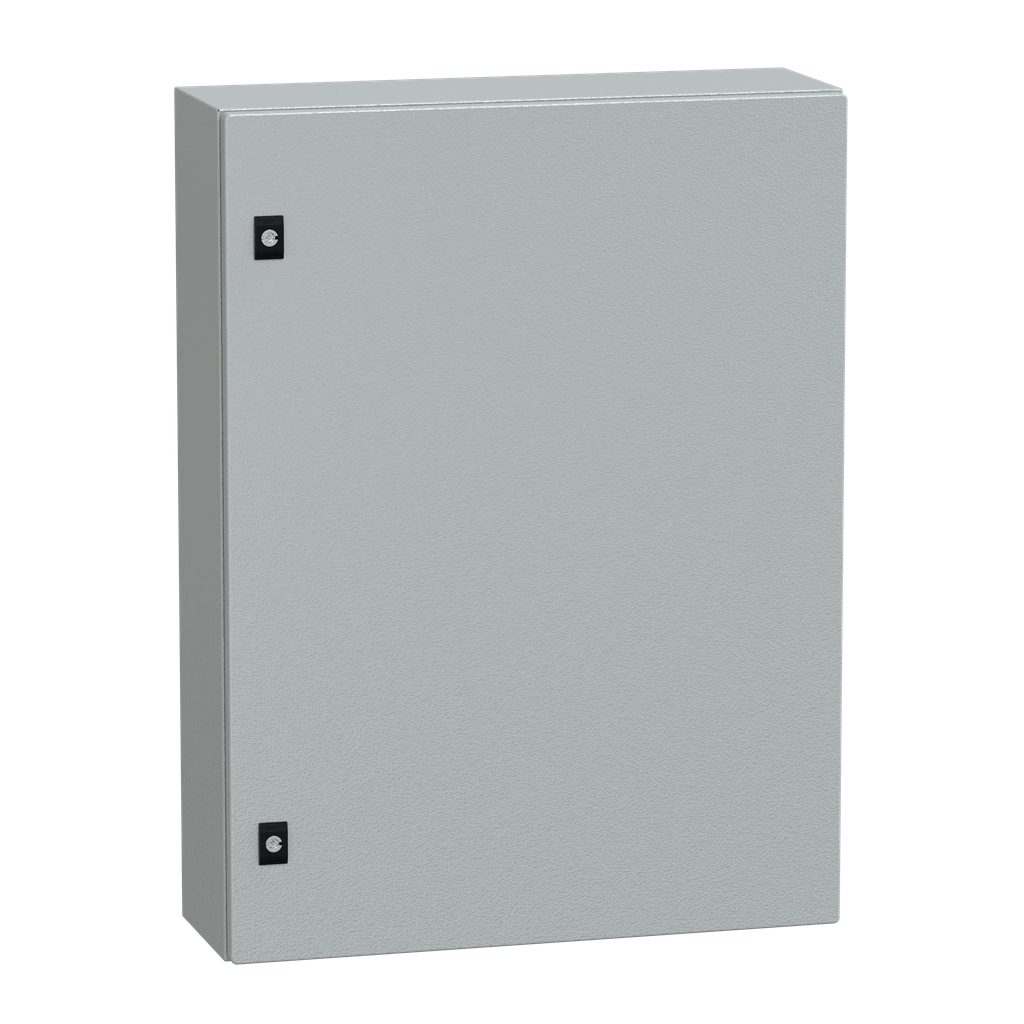

SCHNEIDER ELECTRIC NSYCRN86200 Crn 800X600X200 One Door

SCHNEIDER ELECTRIC NSYCRN86200 Crn 800X600X200 One Doorzoom

Attributes

Key Value
Accessibility For Opera.front
ApplicationMulti-purpose;Back weld.
ApprovalsUL
Approximate Depth8" (203mm)
Approximate Height32" (813mm)
Approximate Width24" (610mm)
Area (L x W)744in? (4800cm?)
BrandSchneider Electric
Catalog NumberNSYCRN86200
CategoryBoxes, Enclosures, Racks
China Rohs RegulationProduct out of China Ro.
ColorGray, Gray RAL 7035)
CommentsWithout mounting plate
CompositionMetallic
Construction1 body;1 cable gland pl.
Container TypeEnclosure
Country of OriginES - Spain, Spain
Cover DesignHinged
DescriptionCRN WM ENCLOSURE 800X60.
DesignCover Included
Detailed DescriptionEnclosure Metal, Steel .
Device Applicationmulti-purpose
Device Composition1 body || 1 cable gland.
Digi-Key Part Number4008-NSYCRN86200-ND
Dimensions31.496 x 23.622 x 7.874.
Door Opening Sidereversible 120 ?)
Door TypeSolid
ECCNEAR99
Enclosure Nominal Depth200 mm
Enclosure Nominal Height800 mm
Enclosure Nominal Width600 mm
Environmental DisclosureENVPEP100104EN
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Enclosures, Sp.
Features-
Gross Weight0 lbs
GTIN03606480211850
Height7.874" (200.00mm)
Ik Degree Of ProtectionIK10 IEC 62262
Installation Accessory .wall-mounting
Ip Degree Of ProtectionIP66 IEC 60529
Item NumberNSYCRN86200
Item TypeWall-mounting;Compact e.
Latching MechanismQuarter-Turn Latch
Lock Type3 mm double-bar lock
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number473416
Manufacturer Product Nu.NSYCRN86200
Manufacturer Standard L.8 Weeks
MaterialSteel, body steel, ABS,.
Material Flammability R.-
Mercury FreeYes
MfrSchneider Electric
MountingWall
Mounting Plate Descript.Without mounting plate
Net Weight39.99 lbs, 18.138 kg
Nominal Depth7 "
Nominal Height31 "
Nominal Width23 "
Number Of Doorsfront face 1
Number of Doors1
PackageBox
Panel IncludedNo
Product CertificationscUL || UL || DNV-GL
Product NameSpacial CRN
Product Or Component Ty.compact enclosure
Product SeriesSpacial
Product StatusActive
RangeSpacial
RatingsIP66
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Removable Partsdoor by hinges || cable.
RoHSYes
Rohs Exemption Informat.Yes
Series-, Spacial CRN Series
Size7.87
Size / Dimension31.496" L x 23.622" W (.
Special Features3 mm double-bar lock
StandardCUL;UL;DNV-GL;IEC 62208
StandardsIEC 62208
Sub BrandSpacial
Surface Finishepoxy-polyester powder
Sustainable Offer StatusGreen Premium product
Thickness-
TypeBox-Lid
Type Of Gland Platestandard
UNSPSC39121303
UPC785901896203
UPC Code785901896203
Variant Particularityback welded with double.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight-
Window/Clear CoverNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
industrialrefrigerationparts.comNSYCRN862008.521In StockSchneider Electric8.52 @ 1
thumbzoomDigi-Key16749569167.314Schneider Electric167.3 @ 1
thumbzoomGalcoNSYCRN86200-SQD174.361In StockSquare D39.99174.36 @ 1
thumbzoomgordonelectricsupply.comNSYCRN86200182.091In Stock10SQUARE D182.09 @ 1
thumbzoomRadwellNSYCRN86200195.01In StockSCHNEIDER ELECTRIC SQUARE D195.0 @ 1
thumbzoommayerelectric.comSQDNSYCRN86200198.361In StockSCHNEIDER ELECTRIC39.9036198.36 @ 1
RS Delivers707-9227237.01219Schneider Electric237.012 @ 1
thumbzoomcrescentelectric.com193120253.311In StockSchneider Electric253.31 @ 1
us.rs-online.com70747129265.2819Schneider Electric265.28 @ 1
thumbzoomNewark85R2166270.591In StockSCHNEIDER ELECTRIC270.59 @ 1
Graybar25425139317.4081In StockSquare D (Schneider Electric)317.408 @ 1
