Scotchlok MH14-10FLX

B00A03GR0Y

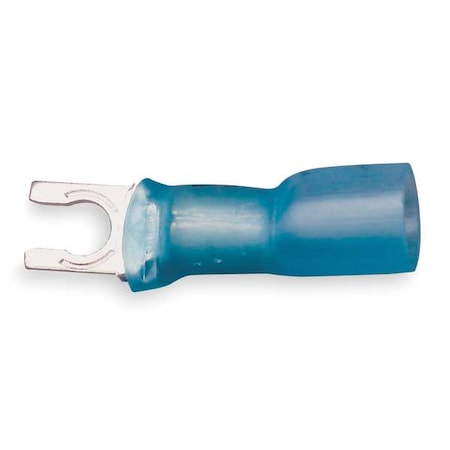

Scotchlok Locking Fork Heatshrink, MH14-10FLX (Pack of 25)

Scotchlok Locking Fork Heatshrink, MH14-10FLX (Pack of 25)zoom

Attributes

Key Value
3M NumberMH14-10FLX
Barrel Length0.76 in
Barrel Length TypeBrazed
Barrel Style:Brazed
Brand3M
CategoryElectrical Terminals
Clearance0.12 in
Clearance (C):0.12 Inch
ColorBlue
Color FamilyBlue
Connection MaterialCopper
Connection TypeCrimp
Country of OriginUS - United States, USA
Current Stock57
ECCNEAR99
Fastening MechanismLocking
Fork Width0.32 in
Inside Diameter0.09 in
Insulation ColorBlue
Insulation ColourBlue
Insulation Length0.76 in
Insulation TypeHeat Shrink
International ShippingNo
ItemFork Terminal
Manufacturer3M
MaterialPolyolefin, Plastic
Material:Heat Shrink
Max. Temp.221 Degrees F
Max. Voltage600 V
Maximum Operating Tempe.221 ?F
Maximum Voltage600 V
Maximum Wire Size14 AWG
Minimum Conductor Leg D.16 AWG
Minimum Wire Size16 AWG
MpnMH14-10FLX
Number Of Terminals:25 per bottle
Overall Length1 in, 0.9 in
Overall Width0.32 in
Package Quantity25 per bottle, 125 per .
SeamBrazed
Size10
SKUZO-G3296142
Standard:UL and CSA
StandardsUL Listed, CSA Certifie.
Stud Size#10
Stud Size:10
Sub Brand:Scotchlok
SubCategoryElectrical
Terminal ConnectionCrimp
Terminal Size:16 - 14 AWG
Terminal TypeLocking
Tongue Width0.32 in
Tongue Width - Wire Con.0.32 in
Trade NameScotchlok
TypeFork, Heat Shrink
Type:Fork
UNSPSC39121432
UPC051128589021, 005112858.
Width (W):0.32 Inch
Wire Range16 to 14 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomturtle.comMMM MH14-10FLX1.231253M1.23 @ 25
thumbzoomPlatt.com02455571.51253M1.5 @ 25
Dale-ElectricMH14-10FLX24.751253M24.75 @ 25
thumbzoomrshughes.com051128-5890225.025253M25.0 @ 25
thumbzoomgordonelectricsupply.comMH14-10FLX25.91254553-M25.9 @ 25
thumbzoomCarlton Bates Company0511285890229.01253M29.0 @ 25
thumbzoomZoroG329614233.851933M0.1233.85 @ 25
thumbzoomNewark10M952539.31253M39.3 @ 25
grainger.caMMMMH14-10FLX45.682229641253M0.1245.68222964 @ 25
thumbzoomsimsupply.comZO-G329614246.031573M46.03 @ 25
thumbzoomRaptor SuppliesAC9XCE53.7221881253M53.722188 @ 25
Graybar25323447189.82881253M189.8288 @ 25
