CLEVELAND C40506

B00PDQ7T96

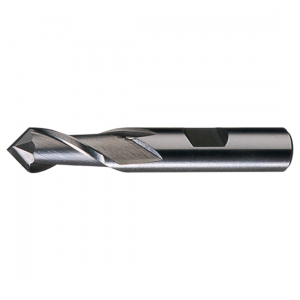

Cleveland C40506 HPDM-2 High Speed Steel Single End 2-Flute Center Cutting End Mill

Cleveland C40506 HPDM-2 High Speed Steel Single End 2-Flute Center Cutting End Millzoom

Attributes

Key Value
Applicable MaterialsAlloy Steel, Cast Iron,.
Center Cutting:Yes
Construction:General Purpose Finisher
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Cutting TypeCenter
Decimal Equivalent:0.2500"/6.35mm
Diameter1/4 in
Diameter Fractional:1/4"
Dimension TypeFractional Inch
Double Ended:No
Drilling Tool Configura.Individual
End Mill ApplicationFinishing
End Mill Cutting TypeCenter Cutting
End Mill MaterialHigh Speed Steel
End Mill StyleDrill
End Style:90? Point
FinishTin, TiN Coated
Flute Length1/2 in
Flute TypeRight Spiral
GradeGeneral Purpose
Hand of Spiral Cut:RHS/RHC
Helix Angle30 Degrees
Included Angle90 Degrees
ItemDrill Mill
Length of Cut1/2 in
Length of Cut:0.5000"/ 12.70mm
List NumberHPDM-2-TN
List Style:HPDM-2
MaterialHSS
Material - MachiningHigh Speed Steel
Material:High Speed Steel
Measurement SystemFractional Inch
Milling Dia.1/4 in
Milling Diameter1/4"
Number of Flutes2
Number of Flutes:2
Overall Length2 5/16 in, 2-5/16 in
Overall Length:2.3125"/58.74mm
Point Angle90 deg
Primary Material Applic.All Materials
SeriesHPDM-2-TN
Shank Dia.3/8 in
Shank Diameter3/8 in
Shank Diameter:0.3750"/9.52mm
Shank TypeStraight/Weldon Flat
Shank:Straight w/ Weldon Flats
Single End/Double EndSingle End
StyleHPDM-2-TN
Surface ConditionTin
Surface Condition:Tin
Tool Size1/4" x 3/8" x 1/2" x 2-.
TypeCenter Cutting Single E.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply611653034.322In StockCleveland34.32 @ 2
thumbzoomZoroG586567534.351In StockCleveland0.0534.35 @ 1
thumbzoomMegadepotC4050641.821In StockCleveland41.82 @ 1
thumbzoomusmegastore.comC4050642.081In StockCleveland42.08 @ 1
thumbzoombscsource.comC4050649.291In StockCleveland49.29 @ 1
thumbzoomsustainablesupply.comC146164655.331In StockCleveland0.0555.33 @ 1
thumbzoomRaptor SuppliesAC4ZKC59.2642441In StockCLEVELAND59.264244 @ 1
thumbzoomNational Supply Network8740621198.871In StockCleveland98.87 @ 1
