CLEVELAND C40523

mpnC40523
brandname: Cleveland
manufacturername: Cleveland

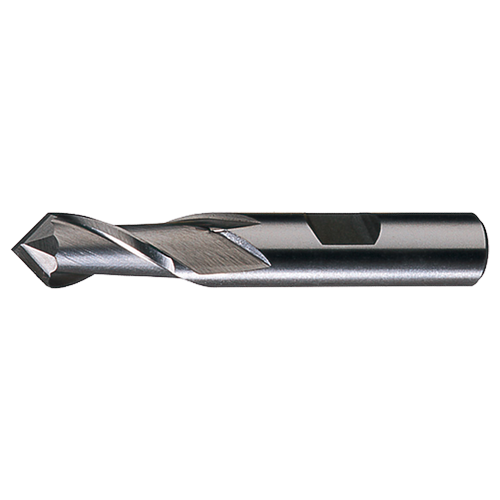

Cleveland C40523 HPDM-2 High Speed Steel Single End 2-Flute Center Cutting End Mill

Cleveland C40523 HPDM-2 High Speed Steel Single End 2-Flute Center Cutting End Mill

zoom

Brand: CLEVELAND
PartNumber: C40523
Model: C40523
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
# of Flutes	2
Applicable Materials	Alloy Steel, Cast Iron,.
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Cutting Type	Center
Diameter	1/2 in
Diameter (in)	0.5000
Diameter (mm)	12.70
Dimension Type	Fractional Inch
Drilling Tool Configura.	Individual
End Mill Application	Finishing
End Mill Cutting Type	Center Cutting
End Mill Material	High Speed Steel
End Mill Style	Drill
Finish	TiCN Coated, Ticn
Finish - Machining	Ticn
Flute Length	1 in
Flute Type	Right Spiral
Grade	General Purpose
Helix Angle	30 Degrees
Included Angle	90 Degrees
Item	Drill Mill
Length of Cut	1 in
Length of Cut (in)	1.0000
Length of Cut (mm)	25.40
List Number	HPDM-2-TC
Material	HSS
Measurement System	Fractional Inch
Milling Dia.	1/2 in
Milling Diameter	1/2"
Number of Flutes	2
Overall Length	3 in
Overall Length (in)	3.0000
Overall Length (mm)	76.20
Point Angle	90 deg
Primary Material Applic.	All Materials
Series	HPDM-2-TC
Shank Dia.	1/2 in
Shank Diameter	1/2 in
Shank Diameter (in)	0.5000
Shank Diameter (mm)	12.70
Shank Type	Straight/Weldon Flat
Single End/Double End	Single End
Size	1/2"
Style	HPDM-2-TC
Surface Condition	Ticn
Tool Size	1/2" x 1/2" x 1" x 3"
Type	Center Cutting Single E.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6116544	57.06	1	In Stock		Cleveland		57.06 @ 1
	Zoro	G5882432	58.05	1	9		Cleveland	1.6	58.05 @ 1
	sustainablesupply.com	C1404301	65.28	1	In Stock		Cleveland	1.6	65.28 @ 1
	Megadepot	C40523	66.26	1	In Stock		Cleveland		66.26 @ 1
	usmegastore.com	C40523	68.94	1	In Stock		Cleveland		68.94 @ 1
	bscsource.com	C40523	77.79	1	In Stock		Cleveland		77.79 @ 1
	Raptor Supplies	AC4ZKN	98.527923	1	In Stock		CLEVELAND		98.527923 @ 1
	National Supply Network	87406039	157.7	1	In Stock		Cleveland		157.7 @ 1
