- mpn23A20R14
- brandname: Dodge
- manufacturername: Dodge

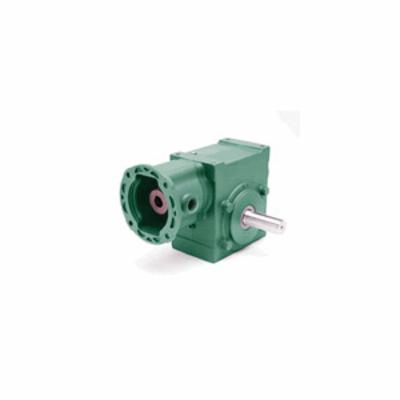

Dodge - 23A20R14 - - Dodge Tigear-2 Reducer
- Brand: Dodge
- PartNumber: 23A20R14
- PackageQuantity: 1
- Manufacturer: Dodge
- Label: Dodge
Attributes
| Key | Value |
|---|
| Base to output center h. | 2.5000 in, 63.5 mm |
| Case size | 23 |
| Center distance (in) | 2.3 in, Center distance. |
| center distance: | 2.31 in |
| Center to end of shaft . | 5.1400 in, 130.556 mm |
| Finish | Green |
| Horsepower rating input | 2.0000 hp, 1.491 kW |
| Horsepower rating output | 1.6400 hp, 1.223 kW |
| housing dimensions: | 12.98 x 5.65 x 9.31 in |
| housing height: | 9.31 in |
| housing length: | 12.98 in |
| Housing material | Cast iron |
| housing material: | Cast iron |
| housing width: | 5.65 in |
| includes: | Separate Reducer |
| Input | 140TC flange |
| Input flange | 140TC |
| Input HP | 2 |
| Input style | 3-Piece coupled |
| input type: | C-Face Coupling |
| Lubrication type | PAG, standard temperatu. |
| manufacturer reducer si. | 23 |
| Material | Class 30 grey iron |
| Max RPM | 88 rpm |
| maximum input horsepowe. | 2.000 hp @ 1750 rpm |
| maximum output rpm: | 88.000 @ 1750 rpm input |
| maximum output torque: | 1178 in-lbs @ 1750 rpm |
| Motor compatibility | NEMA motor, 140TC frame |
| Mounting bolt pattern l. | 5.0000 in, 127.0 mm |
| Mounting bolt pattern w. | 2.8800 in, 73.152 mm |
| mounting type: | No Base |
| nema / iec frame size: | 140TC |
| Nominal ratio | 20 |
| Output | Right side solid output. |
| Output bore/shaft diame. | 1.25 in |
| output direction: | Right Hand |
| Output horse power | 1.64 |
| Output shaft | Right (solid B) |
| Output shaft center to . | 8.5800 in, 217.932 mm |
| output size: | 1.1250 in |
| Output style | Right |
| output type: | Solid Shaft |
| Overhung load | 1610 lbf, 7161.637 N |
| overhung load capacity: | 1610 lb |
| Paint type | Standard |
| Paint/coating | Green |
| Rated torque output | 1178 in/lb, 1178.0 in/lb |
| Ratio | 20 to 1 |
| ratio: | 20:1 |
| reduction: | Single |
| Seal type | Single-lip contact |
| Shaft diameter output | 1.1250 in, 28.575 mm |
| Shaft length output | 2.1800 in, 55.372 mm |
| Suitable for washdown | No |
| Thermal horsepower rati. | 2.6200 hp, 1.954 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Walker Industrial | 23A20R14 | 1054.89 | 1 | In Stock | | Dodge | | 1054.89 @ 1 |
 | MRO Supply | 143258 | 1054.89 | 1 | In Stock | | Dodge | | 1054.89 @ 1 |
 | motionindustries.com | 02454978 | 1103.73 | 1 | In Stock | | Dodge | | 1103.73 @ 1 |
 | Purvis | 23A20R14 | 1141.8 | 1 | In Stock | | Dodge | | 1141.8 @ 1 |
| kirbyrisk.com | 2534694 | 1257.35 | 1 | In Stock | | Dodge | | 1257.35 @ 1 |
 | Zoro | G801246895 | 1306.5 | 1 | In Stock | 20 | Dodge | | 1306.5 @ 1 |
