Eaton E50AW26P

B00DEDX1W4

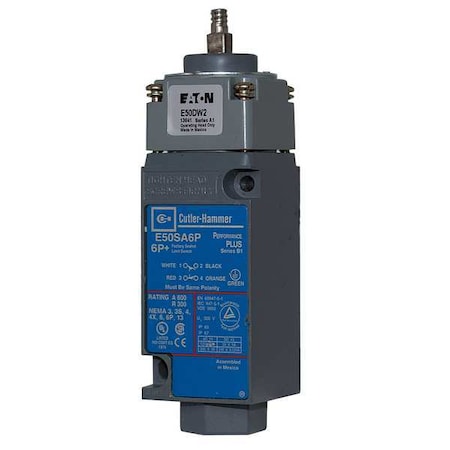

Eaton Electrical - E50AW26P - Wobble Stick Heavy Duty Limit Switch; Location: Top, Contact Form: 1NC/1NO, Rotary Movement

Eaton Electrical - E50AW26P - Wobble Stick Heavy Duty Limit Switch; Location: Top, Contact Form: 1NC/1NO, Rotary Movementzoom

Attributes

Key Value
AC Contact Rating - Lim.10A @ 600V
Actuator Length1.54"
Actuator Length - Limit.1.54 in
Actuator Location - Lim.Top
Actuator Style - Limit .Wobble Stick
Actuator TypeOmnidirectional Rod, Wo.
ApprovalsCSA Certified ; UL List.
Basic Actuator Style - .Wobble Stick
Body Depth - Limit Swit.1.78 in
Body Height - Limit Swi.3.13 in
Body Style - Limit Swit.Standard
Body Width - Limit Swit.1.54 in
Boot Sealed Actuator - .No
Cable Length2.4 Meters,8 Feet
Cable TypeSOOW-A
Connection8 Ft. ( 2.5m ) Cable
Connection TypeWire Leads
Contact Configuration1NO-1NC
Contact FormSPST-NO ; SPST-NC
Contact Form - Limit Sw.1NC/1NO
Contact Form- Switches1NC/1NO
Contact Rating10A at 240Vac, 1A at 25.
Contact Rating (125 VAC)10 Amps
Contact Rating (125 VDC)1 Amps
Contact Rating (250 VAC)10 Amps
Contact Rating (250 VDC)1 Amps
Contact Rating (480 VAC)10 Amps
Contact Rating (600 VAC)10 Amps
Contacts1NO/1NC
Cord Length96 ft
Current Rating10 A
DC Contact Rating - Lim.Not Rated
Depth1.79"
Family SeriesCutler Hammer, Div of E.
Gross Weight2.5 lbs
Height1.48", 5.38 Inch
Housing MaterialZinc
IEC Protection RatingIP67;IP69K
In StockYes
IndicatorNo
IP RatingIP67
IP/NEMA RatingNEMA 1, IP69K, IP67, NE.
ItemHeavy Duty Limit Switch
Item NumberE50AW26P
Length1.54 in
Limit Switch StyleHeavy Duty Limit Switch
ManufacturerCutler Hammer, Div of E.
Manufacturer Part NumberE50AW26P
Mounting - Limit SwitchSurface
Mounting Hole Pattern -.2 Hole Diagonal
Mounting Hole Spacing -.2.34 in x 1.16 in
Mounting TypeDIN Rail Mount
MovementRotary
NEMA Rating1;3;3S;4;4X;6;6P;13
Net Weight2.5 lbs
Number of Poles1
Number of Positions2
OperationSpring Return
Part NumberE50AW26P
Product SeriesE50
SeriesE50 Series
Switch TypeWobble Stick
TerminationCable
TravelOperating Travel 10 Deg.
TypeLimit
UPC Code782113453620
Voltage Rating600 VAC
Weight2.1 Pound
Width1.54", 0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomkempstoncontrols.co.ukE50AW26P325.1265031In StockEaton325.126503 @ 1
us.rs-online.com70056736375.3811Eaton - Cutler Hammer2.1375.38 @ 1
thumbzoomcappusa.com4871814379.061In StockEaton379.06 @ 1
thumbzoomZoroG5231843382.991In StockEaton2.5382.99 @ 1
Newark47K5930457.111In StockEATON CUTLER HAMMER457.11 @ 1
GalcoE50AW26P467.161In StockCutler Hammer, Div of Eaton Corp2.5467.16 @ 1
thumbzoommotorsandcontrol.comE50AW26P476.51In StockEaton Cutler Hammer476.5 @ 1
thumbzoomsustainablesupply.comC1198253479.371In StockEaton2.5479.37 @ 1
thumbzoomturtle.comCUH E50AW26P502.091In StockEaton502.09 @ 1
thumbzoomPlatt.com0185543504.231In StockEaton504.23 @ 1
