Hubbell HBL2421SW

B00GQQW5YG

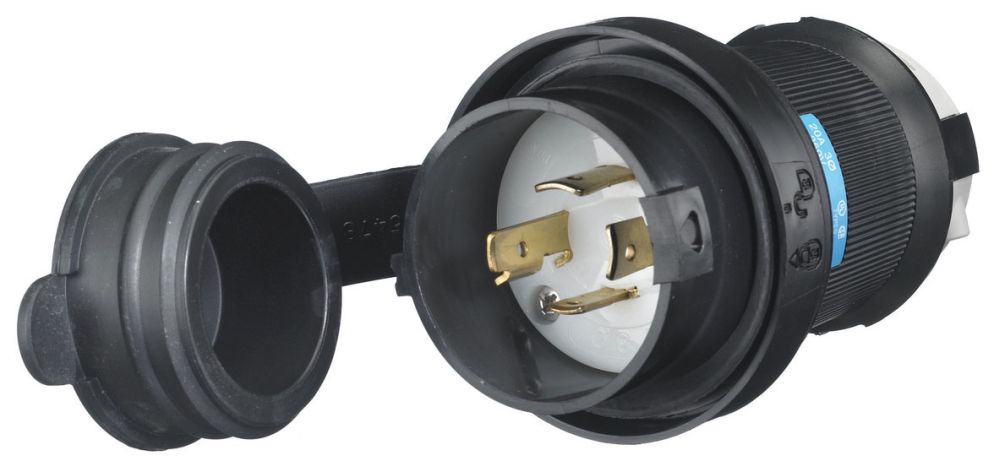

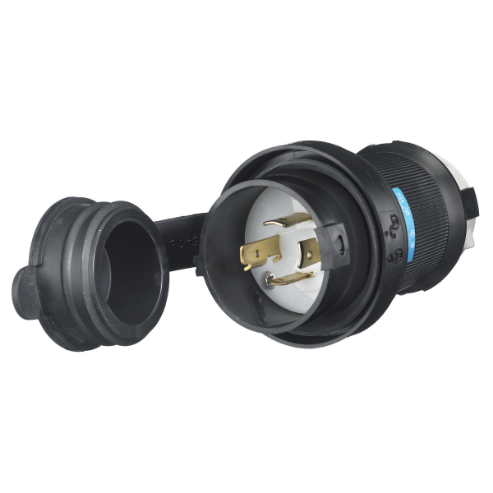

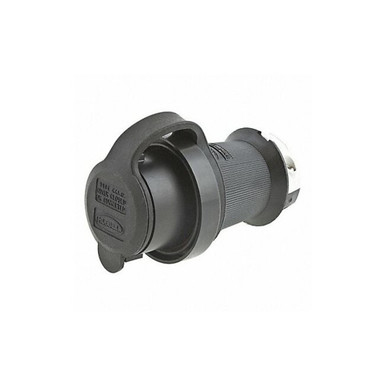

Hubbell HBL2421SW Connector Power

Hubbell HBL2421SW Connector Powerzoom

Attributes

Key Value
Additional FeaturesStandard Product
Amperage Rating20A
Amps20
Amps - Plugs and Recept.20
AntimicrobialNo
ApplicationExtra Heavy Duty Indust.
ApprovalsCSA, UL
AWG Range#16 AWG to #8 AWG
Blade MaterialBrass
Body Length2.94 in
Body TypeStraight
BrandWatertight Safety Shrou.
Cable Range0.350 - 1.150 in.
ColorBlack/White, White, Bla.
Color - Plugs and Recep.Black/White
Color FamilyMulti
Connection OrientationStraight
Cord Size0.350 in to 1.150 in
Corrosion ResistantNo
Country of OriginUS - United States
Country of Origin (subj.United States
Current Rating20 A
Current Stock50
Display TypeStandard Sized
ECCNEAR99
Face Diameter2.77 in
Family NameTwist-Lock? Family
Family SeriesHubbell Plugs & Recepta.
For Maximum Cable Diame.1.15 in
For Minimum Cable Diame.0.35 in
GradeIndustrial
Grade - Plugs and Recep.Industrial
Gross Weight0.865 lbs
GroundingGrounded
Height4.4 in.
Horsepower Rating3 hp
Housing ColorWhite
Housing MaterialPolybutylene Terephthal.
HP3.0
International ShippingNo
IP RatingIP66
Isolated GroundNo
ItemWatertight Locking Plug
Item - Plugs and Recept.Watertight Locking Plug
Item NumberHBL2421SW
Length2.94 in.
ManufacturerHubbell
Manufacturer Part NumberHBL2421SW
MarketIndustrial
MaterialComposite, Impact Modif.
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size16 AWG
MpnHBL2421SW
NEMA ConfigurationL15-20P, L15-20
NEMA Plug ConfigurationL15-20P
NEMA Plug Configuration.L15-20P
NEMA Rating4, 4X, 12
NEMA TypeL15-20
Net Weight0.65 lbs
No. of Poles3
No. of Wires4
Number of Blades4
Number of Poles3
Number of Wires4
Overall Length2.94 in
Phase3, Three
PolarizedYes
Rated Voltage250V
Resistance PropertiesChemical Resistant, Imp.
SeriesInsulgrip Series
ShroudedYes
Shrouded / Non-ShroudedShrouded
SKUZO-G0718496
Special FeaturesLocking, Moisture, Dust.
StandardUL Listed, CSA Certifie.
StandardsCSA Certified Type 4, U.
SubCategoryElectrical
TerminationScrew
TypePlugs, Locking Plug
UL 94 Flammability Rati.V-0
UNSPSC39121402
UPC783585231365
UPC Code783585231365
Voltage250VAC
Voltage - Plugs and Rec.250V AC
Voltage Rating250V AC, 250 V
WatertightYes
Width2.94 in.
Wire Connection TypeScrew Terminals
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL2421SW66.6213HUBBELL66.62 @ 1
thumbzoomsustainablesupply.comC119889184.711In StockHubbell0.8984.71 @ 1
AmazonTPB00IL65B9A86.681In Stock3WIRING DEVICE-KELLEMS86.68 @ 1
thumbzoomCarlton Bates Company7835852313687.771In StockHUBBELL87.77 @ 1
LCOMP7835852313687.771In StockHubbell Wiring Device-Kellems87.77 @ 1
AmazonUNKB008H56RM088.721In StockHubbell88.72 @ 1
thumbzoomZoroG0718496100.141184Hubbell0.89100.14 @ 1
thumbzoomgordonelectricsupply.comHBL2421SW100.921In StockHUBBELL100.92 @ 1
standardelectricsupply.com2251585102.431In StockHubbell102.43 @ 1
thumbzoomGalcoHBL2421SW-HBBL105.441In StockHubbell0.865105.44 @ 1
thumbzoomcbtcompany.comHBL2421SW112.011In StockHubbell Wiring Device-Kellems112.01 @ 1
thumbzoomturtle.comHUB HBL2421SW115.241In StockHubbell115.24 @ 1
thumbzoombscsource.comHBL2421SW118.291In StockHubbell Wiring Device-Kellems118.29 @ 1
thumbzoomRadwellHBL2421SW120.0113HUBBELL KELLEMS120.0 @ 1
thumbzoomsimsupply.comZO-G0718496124.35150Hubbell124.35 @ 1
thumbzoomNewark35B531132.651In StockHUBBELL WIRING DEVICES132.65 @ 1
steinerelectric.com26558132.951In StockHubbell Wiring Device-Kellems132.95 @ 1
us.rs-online.com70234788147.7812Hubbell Wiring Device-Kellems147.78 @ 1
thumbzoomNational Supply Network73122509150.671In StockHubbell Wiring Device-Kellems150.67 @ 1
Graybar95024630168.41441In StockHubbell Wiring Device - Kellems168.4144 @ 1
kirbyrisk.com488585172.981In StockHubbell172.98 @ 1
thumbzoomRaptor SuppliesAD6ZHQ195.56977051In StockHUBBELL WIRING DEVICE-KELLEMS195.5697705 @ 1
