- mpnA4BY1000
- brandname: Mersen, formerly Ferraz Shawmut
- manufacturername: Mersen, formerly Ferraz Shawmut

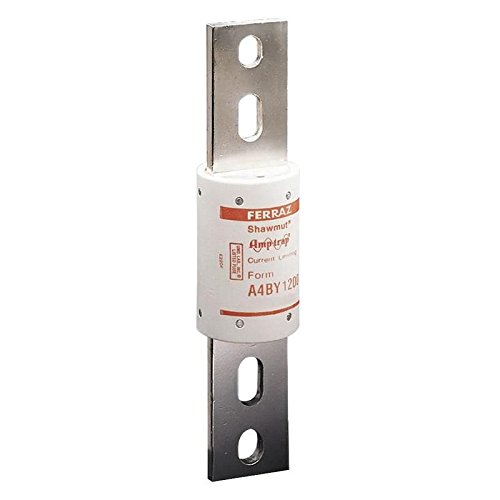

Mersen A4BY1000 Dual Element Class L Non-Rejection Current-Limiting Time Delay Fuse 1000 Amp 600 Volt AC 300 Volt DC Amp-Trap
- Brand: Mersen
- PartNumber: A4BY1000
- PackageQuantity: 1
- Manufacturer: Mersen
- Label: Mersen
Attributes
| Key | Value |
|---|
| 1000 | Amperage |
| 600 | Voltage (V) |
| A4BY1000 | Stock Code |
| AC Voltage Rating | 600V AC |
| Actuator | No |
| Amperage Rating | 1000 Amp |
| Amps | 1000A |
| Body Material | Glass/Melamine |
| Body Style | Blade, Cylindrical |
| Brand Name | Mersen |
| Class | Class L, L |
| Color Code | No |
| Construction | GMG Body |
| Contact Material | Silver Plated Copper |
| Country Of Origin | Mexico |
| Current Rating | 1000 A |
| DC Voltage Rating | 300V DC |
| Diameter | 2.5" |
| Dimensions | 0.5625 x 2 in |
| Element | Dual |
| Element Type | Dual |
| Energy Star Flag | No |
| Equivalent Brand and Se. | Bussmann KLU, Bussmann . |
| Equivalent Series | A4BY, KLLU, KLPC, KLU, . |
| Fits Fuse Block Style | Nonrejection |
| Fuse | Family |
| Fuse 801-1000A | Amp Rating |
| Fuse Class | L |
| Fuse Size | 10-3/4 in L x 2-1/2 in . |
| Fuse Voltage Rating | 600VAC/300VDC |
| GTIN | 00782001939144 |
| Height | 2.500 " |
| If you can not find the. | Notes |
| Indicating / Nonindicat. | Nonindicating |
| Indication | Non-Indicating |
| Interrupt Rating | 200 Kilo-Amp at 600 Vol. |
| Item | Fuse |
| Item Name | Time Delay Fuse |
| Length | 10.75 in, 10.75" |
| Length (Straight Wirewa. | 10 3/4 in |
| Manufacturer Name | Mersen |
| Manufacturer Part Number | A4BY1000 |
| Mersen | Brand |
| Mounting | Bolt-On |
| Phase | No |
| Primary Type | Single-Use Fuses |
| Product Diameter | 2.5 in |
| Product Length | 10.75 in |
| Response Time | 4 sec at 500% Rated Load |
| RoHS Flag | Yes |
| Series | A4BY, A4BY Series |
| Size | 2-1/2 Inch Dia x 10-3/4. |
| Speed | Time-Delay, Time Delay |
| Standards | UL 248-10 E2137 Listed,. |
| Sub Brand | Amp-Trap? |
| Terminal Connection | Blade |
| Time-Delay Fuse | Fuse Type |
| Type | Non-Rejection, Current-. |
| UNSPSC | 39121606 |
| UPC | 78200193914 |
| Visual Indication | Nonindicating |
| Voltage Rating | 600 ; 300 VAC ; VDC, 60. |
| Weight | 4.5 lbs. |
| Width | 2.5 in |
| Yes | UL Listed |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Monarch Electric | 108294 | 397.0 | 1 | In Stock | | Mersen | | 397.0 @ 1 |
 | bulbspro.com | A4BY1000 | 454.66 | 1 | In Stock | | Mersen | | 454.66 @ 1 |
 | Zoro | G2864504 | 606.73 | 1 | In Stock | | Mersen | 4.53 | 606.73 @ 1 |
| Superbreakers | A4BY1000 | 609.0 | 1 | 13 | | Mersen / Ferraz Shawmut | | 609.0 @ 1 |
 | turtle.com | CS A4BY1000 | 689.38 | 1 | In Stock | | MERSEN | | 689.38 @ 1 |
| motionindustries.com | 00518068 | 696.75 | 1 | In Stock | | Mersen Electrical Power | | 696.75 @ 1 |
| AmazonTP | B076CB1QFJ | 804.51 | 1 | In Stock | 3 | MERSEN/FERRAZ SHAWMUT | | 804.51 @ 1 |
| AmazonUNK | B076CB1QFJ | 804.51 | 1 | In Stock | | MERSEN/FERRAZ SHAWMUT | | 804.51 @ 1 |
| AmazonSC | B0091VNEAC | 848.41 | 1 | In Stock | | Mersen | | 848.41 @ 1 |
| us.rs-online.com | 71878934 | 1144.78 | 1 | In Stock | | Mersen | 4.5 | 1144.78 @ 1 |
