Molex / Waldom 09-48-1064

B07QPBQ7K3

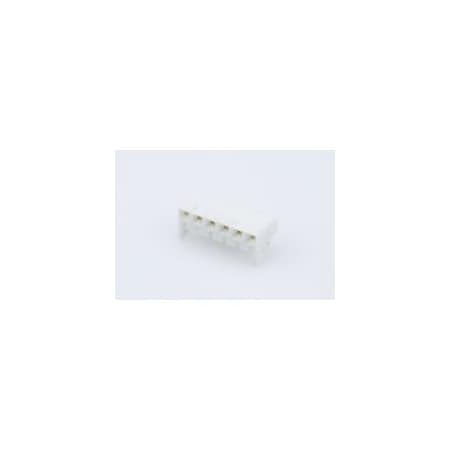

09-48-1064, Conn Socket Strip RCP 6 POS 3.96mm Solder RA Thru-Hole KK Tray (50 Items)

09-48-1064, Conn Socket Strip RCP 6 POS 3.96mm Solder RA Thru-Hole KK Tray (50 Items)zoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
Connector TypeReceptacle
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.60.0?in (1.52?m)
Contact Finish Thicknes.60.0?in (1.52?m)
Contact Length - Post0.145" (3.68mm)
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeFemale Socket
Current Rating (Amps)5A
Fastening TypeLocking Ramp
FeaturesBoard Hooks
Ingress Protection-
Insulation ColorNatural
Insulation Height0.308" (7.82mm)
Insulation MaterialPolyester
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeBoard Edge, Through Hol.
Number of Positions6
Number of Positions Loa.All
Number of Rows1
Operating Temperature-40?C ~ 105?C
Package Quantity1
Part StatusActive
Pitch - Mating0.156" (3.96mm)
Row Spacing - Mating-
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating600V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 09-48-10640.8701951MOLEX0.8 @ 70
Arrow09-48-10640.8031594Molex0.803 @ 1
Onlinecomponents.com09-48-10640.91111MOLEX / WALDOM0.9 @ 1
thumbzoomNewark24M99311.237025544MOLEX1.23 @ 50
thumbzoomZoroG33121331.457068Molex1.45 @ 70
HotendaH14191691.55164Molex1.55 @ 1
Mouser538-09-48-10641.7511721Molex1.75 @ 1
