- mpn22272031
- brandname: MOLEX
- manufacturername: MOLEX

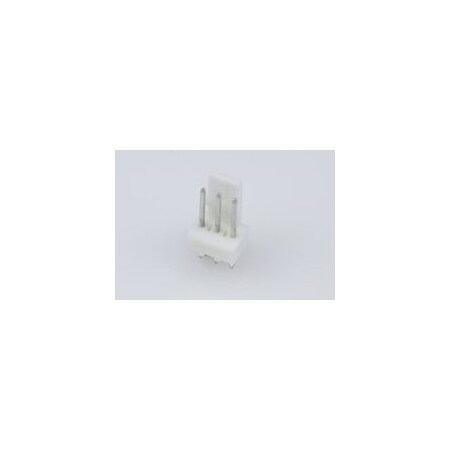

MOLEX 22-27-2031
- Brand: Molex
- PartNumber: 22272031
- Model: 22-27-2031
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: MOLEX
- Label: MOLEX
Attributes
| Key | Value |
|---|
| Agency Approvals | CSA ; UL |
| Alternate Mfr Part Numb. | AE-6410-03A(222) |
| Angle | Straight |
| Application | Signal ; Wire-to-Board |
| Applications | Automotive, General Pur. |
| Base Product Number | 002227 |
| Case | Standard |
| Category | Connectors, Interconnec. |
| Color | White, Natural |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 100.0?in (2.54?m) |
| Contact Finish Thicknes. | 100.0?in (2.54?m) |
| Contact Length - Mating | 0.295" (7.49mm) |
| Contact Length - Post | 0.140" (3.56mm) |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 4 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER VERT 3POS 2. |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM4112-ND |
| Family Name | KK 254 |
| Fastening Type | Friction Lock |
| Features | - |
| Housing Material | Nylon |
| Ingress Protection | - |
| Insulation Color | Natural |
| Insulation Height | 0.461" (11.70mm) |
| Insulation Material | Polyamide (PA), Nylon |
| Manufacturer | Molex Inc, Molex |
| Manufacturer Product Nu. | 0022272031 |
| Manufacturer Standard L. | 26 Weeks |
| Mated Stacking Heights | - |
| Material Flammability R. | UL94 V-0 |
| Mfr | Molex |
| Mounting Type | Through Hole |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Positions Loa. | All |
| Number of Rows | 1 |
| Operating Temperature | 0 to +75 ?C, - |
| Orientation | Vertical |
| Overall Contact Length | 0.560" (14.22mm) |
| Overall Length | 0.3 " |
| Package | Bulk |
| Pin Length | 0.295 " |
| Pin Spacing | 0.1 in |
| Pitch | 2.54 mm (0.100") |
| Pitch - Mating | 0.100" (2.54mm) |
| Plating Material | Tin |
| Primary Type | Board Mount |
| Product Header | 6410 Series Friction Lo. |
| Product Status | Active |
| Row Spacing - Mating | - |
| Series | KK254, 6410, 6410 Series |
| Shrouding | Shrouded - 1 Wall |
| SKU | 393735 |
| Special Features | Low-Halogen |
| Style | Board to Cable/Wire |
| Termination | Solder, Through Hole |
| Type | SemiConductor, Vertical. |
| Voltage Rating | 250 V, - |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Waldom | MOLEX 22-27-2031 | 0.073 | 750 | 487303 | | MOLEX | | 0.073 @ 750 |
| Power and Signal Group | 0022272031 | 0.0859 | 2000 | 1164 | | Molex | | 0.0859 @ 2000 |
| Onlinecomponents.com | 22-27-2031 | 0.09 | 1 | 6203 | | MOLEX / WALDOM | | 0.09 @ 1 |
 | NEP Electronics | 22-27-2031 | 0.1015 | 750 | 512602 | | Molex | | 0.1015 @ 750 |
| us.rs-online.com | 70190935 | 0.12895 | 1 | 1164 | | Molex Incorporated | | 0.12895 @ 1 |
 | Newark | 72K5810 | 0.177 | 1 | 1434 | | MOLEX | | 0.177 @ 1 |
| RS Delivers | 483-8477 | 0.4236 | 1 | 9030 | | Molex | | 0.4236 @ 1 |
 | Digi-Key | 1130578 | 0.45 | 1 | 189595 | | Molex | | 0.45 @ 1 |
| Arrow | 22-27-2031 | 0.606 | 1 | 7053 | | Molex | | 0.606 @ 1 |
 | Component Electronics | 701A-3X | 0.77 | 1 | 85 | | Molex | | 0.77 @ 1 |
 | TME | MX-6410-03A | 1.039 | 3 | 77708 | | MOLEX | | 1.039 @ 3 |
| AmazonTP | B005T7FG1W | 5.99 | 1 | 1164 | 2 | Molex | | 5.99 @ 1 |
 | ebay.com_buccaneerbarque | 22-27-2031 | 15.65 | 1 | 1164 | | MOLEX | | 15.65 @ 1 |
| AmazonSC | B0197EDMHC | 19.99 | 1 | 1164 | | Molex | | 19.99 @ 1 |
| Little Diode | 22272031 | 29.7103365 | 1 | 1164 | | MOLEX | | 29.7103365 @ 1 |
 | Zoro | G2747994 | 105.0 | 1 | 1164 | | Molex | | 105.0 @ 1 |
