Molex / Waldom 46114-4361

B00GQRDF62

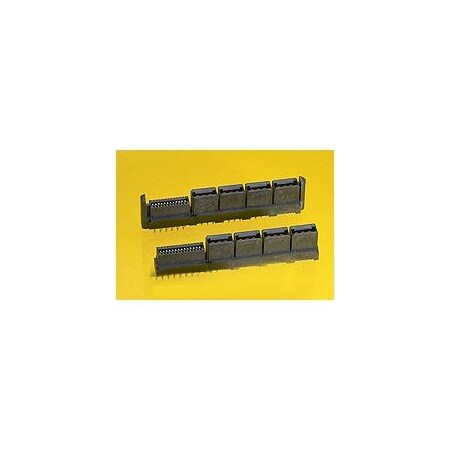

Molex / Waldom 46114-4361 Connector Power

Molex / Waldom 46114-4361 Connector Powerzoom

Attributes

Key Value
ApplicationBoard-to-Board, Power
CategoryConnectors, Interconnec.
Circuits (Loaded)40
Circuits (maximum)40
ColorBlack
Color - ResinBlack
Connector StyleLPHPower
Connector TypeReceptacle, Outer Shrou.
Connector Usage-
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact Layout, Typical36 Signal, 4 Power
CSALR19880
Current - Maximum per C.30.0A
Current Rating (Amps)-
Durability (mating cycl.250
Features-
Flammability94V-0
Material - MetalHigh Performance Alloy .
Material - Plating Mati.Gold
Material - Plating Term.Tin
Material - ResinHigh Temperature Thermo.
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole
Number of Columns-
Number of Positions40
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40?C ~ 105?C
OrientationVertical
PackageBox
Pitch-
Pitch - Mating Interface1.27mm, 12.00mm
Plating min - Mating0.762?m
Plating min - Terminati.2.540?m
Polarized to Mating PartYes
Product NameEXTreme LPHPower
Product StatusActive
SeriesEXTreme LPHPower 46114
Surface Mount Compatibl.Yes
Temperature Range - Ope.-40? to +105?C
TerminationPress-Fit
Termination Interface: .Through Hole - Complian.
ULE29179
Voltage - Maximum250V AC (RMS)/DC
Voltage Rating250V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com46114-43616.971270MOLEX / WALDOM6.97 @ 25
Verical46114-43617.25108Molex7.2 @ 25
Newark56R03818.9127025MOLEX8.91 @ 270
jensentools.com101902779.27125Molex9.27 @ 25
Mouser538-46114-436110.531270Molex10.53 @ 25
Digi-Key1473398410.64425Molex10.64 @ 25
thumbzoomZoroG404833297.51025Molex97.5 @ 25
