- mpnFR01FC16P-S
- brandname: NKK Switches
- manufacturername: NKK Switches

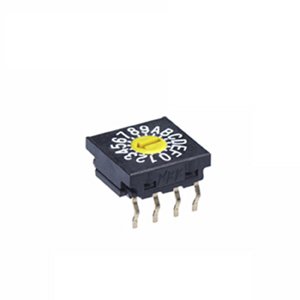

NKK Switches FR01FC16P-S DIP ROTARY
- Manufacturer: NKK Switches
- Label: NKK Switches
Attributes
| Key | Value |
|---|
| Above PC Board Height | 0.150" (3.81mm) |
| Actuator | Screwdriver |
| Actuator Colour | Yellow |
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool, Rotary |
| Alternate Part No. | 633-FR01FC16P-S |
| Angle of Throw | 90? |
| Base Product Number | FR01FC16 |
| Body dimensions | 10x10x4mm |
| Body Material | Polyamide (PA), Nylon, . |
| Brand | NKK Switches |
| Case Material | Case Material |
| Category | Switches |
| Circuit | Hexadecimal Complement |
| Contact Current Rating | 100 mA |
| Contact Finish | Gold |
| Contact Form | Hexadecimal Complement |
| Contact Material | Copper Alloy, Contact M. |
| Contact Plating | Gold |
| Contact Rating | 100 mA at 5 V |
| Contact Type | Contact Type |
| Current Rating | 100 mA |
| Current Rating (Amps) | 100mA |
| DC contacts rating @R | 0.1A / 5V DC |
| Depth | 10mm |
| Dielectric Strength | 250 Volts |
| Dimensions | 10 x 10 x 3.8mm |
| Electrical life | 10000 cycles |
| Electrical Life | 10,000 Steps |
| Features | - |
| Function | Coded Output |
| Height | 3.8mm |
| Height Above Board | 0.150" (3.81mm) |
| Kind of encoding switch | HEX/BCD |
| Leads | straight |
| Legend Text | 0-F |
| Length | 0.394" (10.00mm) |
| Manufacturer | NKK Switches |
| Manufacturer Part No. | FR01FC16P-S |
| Manufacturer series | FR |
| Max. contact resistance: | 100m? |
| Maximum Operating Tempe. | +85?C |
| Mechanical durability | 10000 cycles |
| Mechanical Life | 10,000 Steps |
| Mfr | NKK Switches |
| Min. insulation resista. | 1G? |
| Minimum Operating Tempe. | -25?C |
| Mounting | THT |
| Mounting Type | Through Hole, PCB Mount |
| Number of Positions | 16 |
| Number of positions | 16 |
| Number of Switch Positi. | 16 |
| Number of Switches | 16 |
| Operating Temperature | -25?C ~ 85?C |
| Operating temperature | -25...85?C |
| Output Code | Complement |
| Output Coding | Output Coding |
| Package | Tube |
| Packaging | Tube |
| Part # Aliases | FR01-FC16P-ST |
| Part Status | Active |
| Pitch | 0.100" (2.54mm), Full, . |
| Primary Type | Switch |
| Product Category | Coded Rotary Switches |
| Profile | Flush, Recessed |
| Series | FR01, FR01 Series |
| Stable positions number | 16 |
| Standards Met | UL 94 V-0 |
| Stock | Stock |
| Terminal Type | Terminal Type |
| Termination | Through Hole |
| Termination Style | PC Pin, Straight PC |
| Type | Dip Rotary |
| Type of switch | encoding switch |
| Voltage Rating | 5 VDC, 5VDC, 5 V dc, 50. |
| Washable | No |
| Width | 10mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | RS Delivers | 125-1873 | 3.1152 | 5 | 10 | | NKK Switches | | 3.1152 @ 10 |
| us.rs-online.com | 70192989 | 3.26 | 50 | 10 | | NKK Switches | | 3.26 @ 50 |
| Digi-Key | 1165781 | 3.838 | 4900 | 10 | | NKK Switches | | 3.838 @ 10 |
 | swatee.com | FR01FC16P-S | 4.81 | 1 | 55 | | NKK Switches | | 4.81 @ 10 |
 | Newark | 09X9276 | 5.3 | 50 | 10 | | NKK SWITCHES | | 5.3 @ 50 |
 | TME | FR01FC16P-S | 5.35 | 1 | 100 | | NKK SWITCHES | | 5.35 @ 10 |
