OSG 1400120408

mpn1400120408
brandname: OSG
manufacturername: OSG

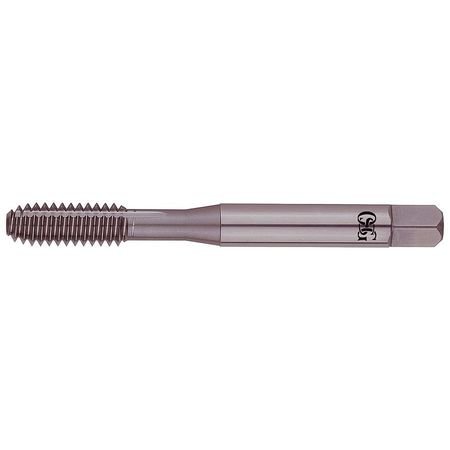

Thread Forming Tap, Mbot, TiCN, 10-32, H4

Thread Forming Tap, Mbot, TiCN, 10-32, H4

zoom

Brand: OSG
PartNumber: 1400120408
Model: 1400120408
PackageQuantity: 1
Binding: Misc.
Manufacturer: OSG Tap And Die
Label: OSG Tap And Die

Attributes

Key	Value
55% Thread Drill Size	4.52 mm
65% Thread Drill Size	4.45 mm
75% Thread Drill Size	4.40 mm
brand	OSG
chamfer	2.5P
Class of Fit	3B
Coolant Fed	Non-Coolant Through
coolant thru	No
Country of Origin (subj.	Japan
Cutting Direction - Mac.	Right Hand
Extended Neck	No
Features	Performance Form Taps f.
Helix Angle	0 Degrees
Item	Thread Forming Tap
list number	14001
List Number	14001
Material Grade - Machin.	14001
minimum drill hole size	0.1741"
neck length	0.885"
Number of Flutes	0
Number of Pieces	1
Overall Length	2-3/8"
overall length inch	2.362
Pitch Diameter Limit	H4
Primary Material Applic.	Aluminum, Brass, Bronze.
Primary Material Applic.	N, P
Secondary Material Appl.	Hardened Steel, Stainle.
Secondary Material Appl.	H, M, P
Series	14001
Shank Dia.	0.194"
Shank Length	1 15/32 in
Spiral Direction	Neutral
square size	0.152"
Square Size	0.1520 in
Standards	ANSI
Tap Chamfer	Bottoming
Tap Dimension Type	Inch
Tap Finish	TiCN
Tap Grouping	Tap
Tap Material	Cobalt
Tap Size	#10
Tap Style	Thread Forming
tap style	Forming
Tap Thread Size	#10-32
Tap Thread Type	UNF
Thread Direction	Right Hand
Thread Length	7/8"
Thread Limit	H4
Thread Limit / Class of.	H4 / 3B
Thread Size	#10-32
Thread Standard	UNF
thread type	UNF
Threads per Inch	32

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	tmttoolbox.com	1400120408	17.01	1	In Stock		osg		17.01 @ 1
	Zoro	G5569164	18.07	1	In Stock	26	Osg	0.02	18.07 @ 1
	sustainablesupply.com	C1432285	20.79	1	In Stock		OSG	0.02	20.79 @ 1
	AmazonSC	B007IBQNF0	26.87	1	In Stock		Osg		26.87 @ 1
	National Supply Network	07463060	27.69	1	In Stock		OSG		27.69 @ 1
