Panasonic Electronic Components EEE-FT1E330AR

mpnEEE-FT1E330AR
brandname: Panasonic
manufacturername: Panasonic

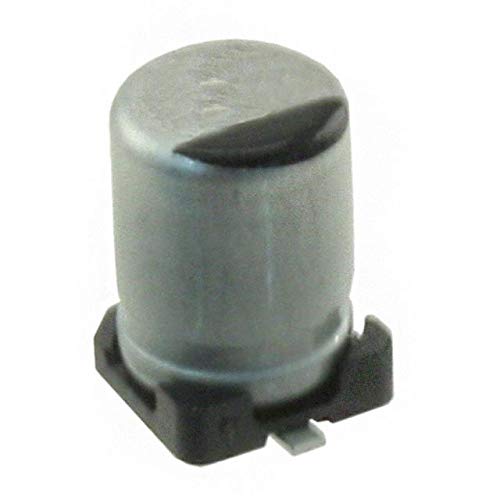

PANASONIC ELECTRONIC COMPONENTS EEE-FT1E330AR

PANASONIC ELECTRONIC COMPONENTS EEE-FT1E330AR

zoom

Brand: Panasonic Electronic Components
PartNumber: EEE-FT1E330AR
Model: EEE-FT1E330AR
Manufacturer: PANASONIC ELECTRONIC COMPONENTS
Label: PANASONIC ELECTRONIC COMPONENTS

Attributes

Key	Value
Applications	Automotive
Base Product Number	EEE-FT
Capacitance	33 ?F, 33 uF
Capacitance Range	1 to 99 uF
Case Size	Dia. 0.157 x L 0.228 in.
Category	Capacitors
Configuration	Radial ; Can
Description	CAP ALUM 33UF 20% 25V S.
Detailed Description	33 ?F 25 V Aluminum Ele.
Digi-Key Part Number	PCE5004TR-ND - Tape & R.
Dimensions	0.157 Dia. x 0.228 L ; .
Element Material	Aluminum Electrolytic
ESR	850 mOhms
ESR (Equivalent Series .	850mOhm @ 100kHz
Height - Seated (Max)	0.240" (6.10mm)
Lead Spacing	-
Lifetime @ Temp.	2000 Hrs @ 105?C
Manufacturer	Panasonic Electronic Co.
Manufacturer Product Nu.	EEE-FT1E330AR
Manufacturer Standard L.	34 Weeks
Maximum Operating Tempe.	105 C
Mfr	Panasonic Electronic Co.
Minimum Operating Tempe.	-55 C
Mounting Type	PCB Mount, Surface Mount
Operating Temperature	-55?C ~ 105?C
Package	Tape & Reel (TR)
Package / Case	Radial, Can - SMD
Packaging	Tape & Reel
Polarization	Polar
Product Status	Active
Ratings	AEC-Q200
Ripple Current @ High F.	160 mA @ 100 kHz
Ripple Current @ Low Fr.	104 mA @ 120 Hz
Series	FT Series, FT
Size / Dimension	0.157" Dia (4.00mm)
Special Features	Automotive
Surface Mount Land Size	0.169" L x 0.169" W (4..
Termination	SMD
Tolerance	?20%, 20% %
Voltage - Rated	25 V
Voltage Rating	25 VDC

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	EEE-FT1E330AR	0.082	1	2000		PANASONIC		0.082 @ 2000
	Newark	02AH4399	0.113	2000	4000		PANASONIC		0.113 @ 2000
	TME	EEEFT1E330AR	0.126	5	2000		PANASONIC		0.126 @ 2000
	Digi-Key	2652035	0.13063	1	25476		Panasonic Electronic Components		0.13063 @ 2000
	Arrow	EEEFT1E330AR	0.272	1	2000		Panasonic		0.272 @ 2000
	AmazonSC	B00OVF7N9G	0.28	1	2000		PANASONIC ELECTRONIC COMPONENTS	0.000625	0.28 @ 2000
	us.rs-online.com	70256691	0.31226	2000	2000		Panasonic Electronic Components		0.31226 @ 2000
	RS Delivers	729-6239P	0.4188	1	2000		Panasonic		0.4188 @ 2000
