SH8K1TB1

MOSFET 2N-CH 30V 5A SOP8 (10 pieces)

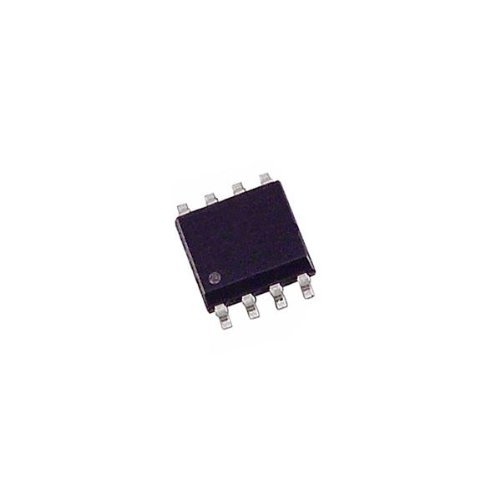

MOSFET 2N-CH 30V 5A SOP8 (10 pieces)zoom

Attributes

Key Value
Alternate Part No.755-SH8K1TB1
Base Product NumberSH8K1
BrandRohm Semiconductor
CategoryDiscrete Semiconductor .
Configuration2 N-Channel (Dual)
Current - Continuous Dr.5A
Drain to Source Voltage.30V
FET FeatureLogic Level Gate
Forward Transconductanc.3 S
Gate Charge (Qg) (Max) .5.5nC @ 5V
Id - Continuous Drain C.5 A
Input Capacitance (Ciss.230pF @ 10V
ManufacturerRohm Semiconductor
Manufacturer Part No.SH8K1TB1
Maximum Operating Tempe.+ 150 C
MfrRohm Semiconductor
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Operating Temperature150?C (TJ)
PackageTape & Reel (TR)
Package / Case8-SOIC (0.154", 3.90mm .
Package/CaseSOP-8
PackagingReel
Pd - Power Dissipation2 W
Power - Max2W
Product CategoryMOSFET
Product StatusActive
Rds On (Max) @ Id, Vgs51mOhm @ 5A, 10V
Rds On - Drain-Source R.58 mOhms
Series-
Supplier Device Package8-SOP
TechnologyMOSFET (Metal Oxide)
Transistor PolarityN-Channel
Vds - Drain-Source Brea.30 V
Vgs(th) (Max) @ Id2.5V @ 1mA

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key23572590.4101325002500Rohm Semiconductor0.41013 @ 2500
thumbzoomswatee.comSH8K1TB11.631766ROHM Semiconductor1.63 @ 1
