SIEMENS 5SJ42208HG41

B00HHUWQO4

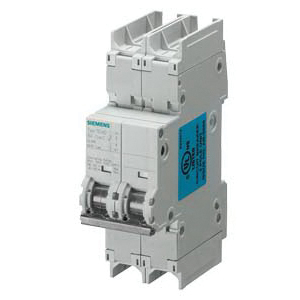

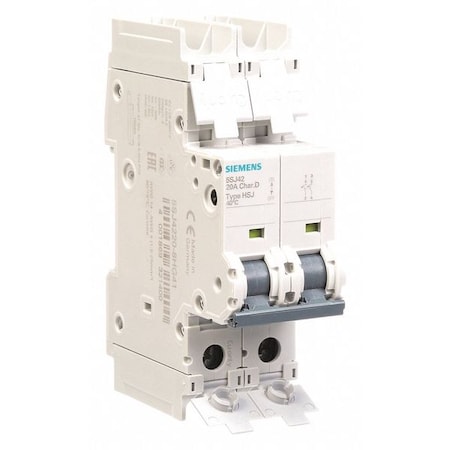

Siemens 5SJ42208HG41 Miniature Circuit Breaker, UL 489 Rated, 2 Pole Breaker, 20 Ampere Maximum, Tripping Characteristic D, DIN Rail Mounted, Type HSJ, 240 VAC, 125 VDC

Siemens 5SJ42208HG41 Miniature Circuit Breaker, UL 489 Rated, 2 Pole Breaker, 20 Ampere Maximum, Tripping Characteristic D, DIN Rail Mounted, Type HSJ, 240 VAC, 125 VDCzoom

Attributes

Key Value
AC Voltage Rating240V AC
Actuator TypeLever, Handle
Adapter Rating:N/A
Amperage Rating20
Amps20 A, 20
ApplicationCommercial, Industrial
Approval AgencyCCC, CE, CSA, EAC, UL, .
Breaker Type-
CategoryCircuit Protection, Cir.
Circuit Breaker Mountin.Standard Mounting Rail
Class:D
Connection typeLine/Load/Screw
Connection:Identical wire screw co.
Country of OriginDE
Current Rating20 A
Current Rating (Amps)20A
Curve TypeD
DC Voltage Rating60V DC
Depth3.3 in
Dimensions110 mm H x 36 mm W x 70.
Element:N/A
Enclosure TypeIP20
Estimated Weight1.00
Frame Size2
Frequency Rating50
Frequency Rating:50 Hz
Housing MaterialThermoplastic
IlluminationNone
Illumination Voltage (N.-
Interrupt Rating14
Interrupt Rating:14kA
ItemMiniature Circuit Break.
kA Rating14
Length4.48 in
Length (Straight Wirewa.4.48 in
ManufacturerSiemens Industry, Inc.,.
Material:N/A
Max. AIR Rating14 kA
Max. Wire Size4 AWG
MfrSiemens
Min. Wire Size14 AWG
MountingDin Rail
Mounting typeDin Rail
Mounting TypeDin Rail
Mounting:On standard mounting ra.
Number of Poles2
PackageBulk
Package Quantity1
Part Number5SJ42208HG41
Phase1
Poles2
Product StatusActive
Response Time:N/A
Series5SJ4
Short Circuit Rating:14kA
Size:N/A
Standard:UL 489, CSA 22.2 NO. 5-.
StandardsCSA C22.2 No. 5-02, EN6.
Sub Brand:SENTRON
Temperature Rating (Deg.-25 to 55
Terminal ConnectionScrew Clamp
Trip CurveD
Trip TypeThermal Magnetic, Therm.
TypeType HSJ
Type Of Indicators:N/A
Type:HSJ
UL RatingUL 489
UNSPSC39121601
UPC662643168068
UPC Code662643168068
Voltage240VAC, 60VDC, 125VDC
Voltage Rating240
Voltage Rating - AC400 V
Voltage Rating - DC125 V
Voltage Rating:240 V
Width1.57 in
Wire Size14 to 4

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomstandardelectricsupply.com214079392.311In StockSiemens92.31 @ 1
Digi-Key1463567096.651In StockSiemens96.65 @ 1
thumbzoomindustrialzone.com5SJ42208HG41102.622In StockSiemens2.0102.62 @ 2
us.rs-online.com71105062107.3911Siemens107.39 @ 1
thumbzoommotorsandcontrol.com5SJ4220-8HG41128.221In StockSiemens1.0128.22 @ 1
Dale-Electric5SJ42208HG41130.151In StockSiemens Industry, Inc.130.15 @ 1
thumbzoomZoroG7450536149.991In Stock26Siemens149.99 @ 1
steinerelectric.com401475150.271In StockSiemens150.27 @ 1
thumbzoomturtle.comITE 5SJ42208HG41197.781In StockSiemens197.78 @ 1
thumbzoomsustainablesupply.comC2927777213.421In StockSiemens0.7213.42 @ 1
