SKF 7204 BEP

B007VGJJ08

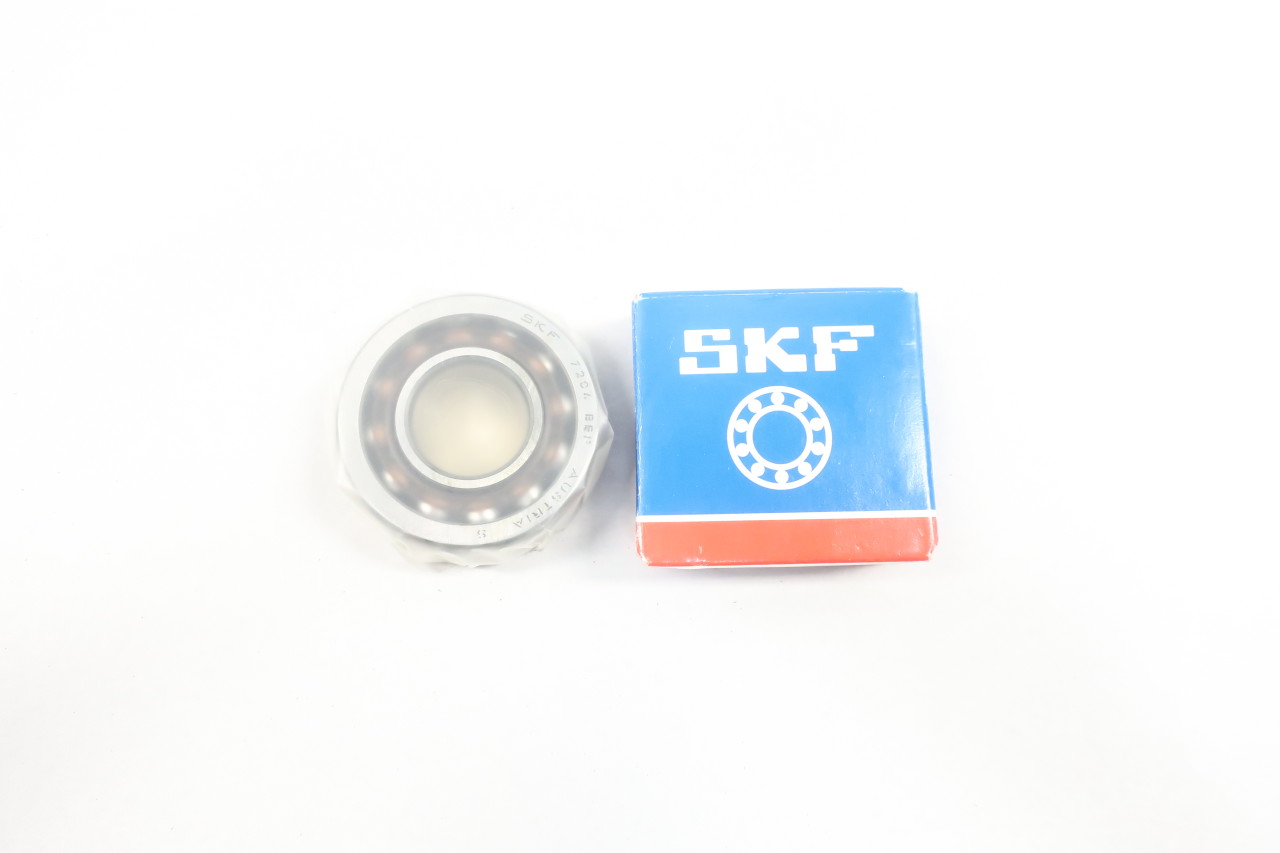

SKF 7204 BEP Light Series Angular Contact Ball Bearing, ABEC 1 Precision, 40? Contact Angle, Maximum Capacity, Open, Polyamide/Nylon Cage, Normal Clearance, 20mm Bore, 47mm OD, 14mm Width, 1870.0 pounds Static Load Capacity, 3150.00 pounds Dynamic Load Capacity

SKF 7204 BEP Light Series Angular Contact Ball Bearing, ABEC 1 Precision, 40? Contact Angle, Maximum Capacity, Open, Polyamide/Nylon Cage, Normal Clearance, 20mm Bore, 47mm OD, 14mm Width, 1870.0 pounds Static Load Capacity, 3150.00 pounds Dynamic Load Capacityzoom

Attributes

Key Value
ABEC Tolerance3
Bore0.787 Inch | 20 Millime.
Bore Dia.20 mm
Bore Diameter20 mm
Bore TypeCylindrical
BrandSKF
Cage MaterialPolymer, PA66
Category - BDIAngular Contact Ball Be.
Closure TypeNone
Contact Angle40 Degrees, 40 Degree
Contact Angle (Degree)40
Current Stock47
Dynamic Load Capacity (.2,990
Dynamic Load Capacity (.13,300
EAN7316576649745
EnclosureOpen
Flush GroundNo
Harmonized Tariff Code8482.10.50.28
Housing Fillet Radius0.6 mm
Inch - MetricMetric
Inner Diameter20 mm
Internal ClearanceC0-Medium
International ShippingNo
ItemAngular Contact Ball Be.
Keyword StringAngular Contact
Lead TimeExpected to ship in 1-2.
Long Description20MM Bore; 47MM Outside.
LubricationMT47 Grease
Manufacturer Item Number7204 BEP
Manufacturer NameSKF
Max. RPM19,000 RPM
Maximum Capacity / Fill.No
Maximum Temperature100 Degrees C
Minimum Buy QuantityN/A
Mpn7204 BEP
NounBearing
Number of Bearings1 (Single)
Number of RowsSingle
Number of Rows of BallsSingle Row
O.D. (in)1 6/7
Outer Diameter47 mm
Outside Dia.47 mm
Outside Diameter1.85 Inch | 47 Millimet.
Overall Width14 mm
Precision ClassABEC 3 | ISO P6
Product Group - BDIB00308
Rolling ElementBall Bearing
Series72 Series
Shaft Fillet Radius0.6 mm
SKUZO-G8142285
Snap RingNo
Standard Preload (lbs.)27
Standard Preload (N)120
Static Load Capacity (L.1,870
Static Load Capacity (N)8,300
Static Load Rating7.65 kN
SubCategoryPower Transmission
Temp. Range (F)-40 Degrees to 212 Deg.
TypeSingle Row Standard
UNSPSC31171531
UPC Code7316576649745
Weight / Kilogram0.108
Weight / LBS0.234
Width0.551 Inch | 14 Millime.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD73124129.941In StockSKF29.94 @ 1
RS Delivers285-154130.49218SKF30.492 @ 1
thumbzoomBDI Express141884937.47692041104SKF0.237637.4769204 @ 1
thumbzoomMRO Supply31373340.471In StockSKF Bearing40.47 @ 1
factorysupplyoutlet.comOV14LH41.321In Stock25SKF41.32 @ 1
thumbzoomZoroG814228546.59157Skf0.2446.59 @ 1
us.rs-online.com7322074447.717SKF Bearings47.7 @ 1
thumbzoomsustainablesupply.comC157289955.711In StockSKF0.2455.71 @ 1
thumbzoomsimsupply.comZO-G814228561.1147Skf61.1 @ 1
motionindustries.com0005917763.581In StockSKF63.58 @ 1
thumbzoomNational Supply Network4566883781.81In StockSKF81.8 @ 1
thumbzoombscsource.com7204BEP82.291In StockSKF82.29 @ 1
